Description
Create instinctively. Perform immediately.

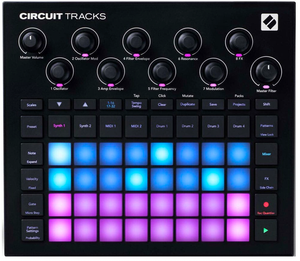

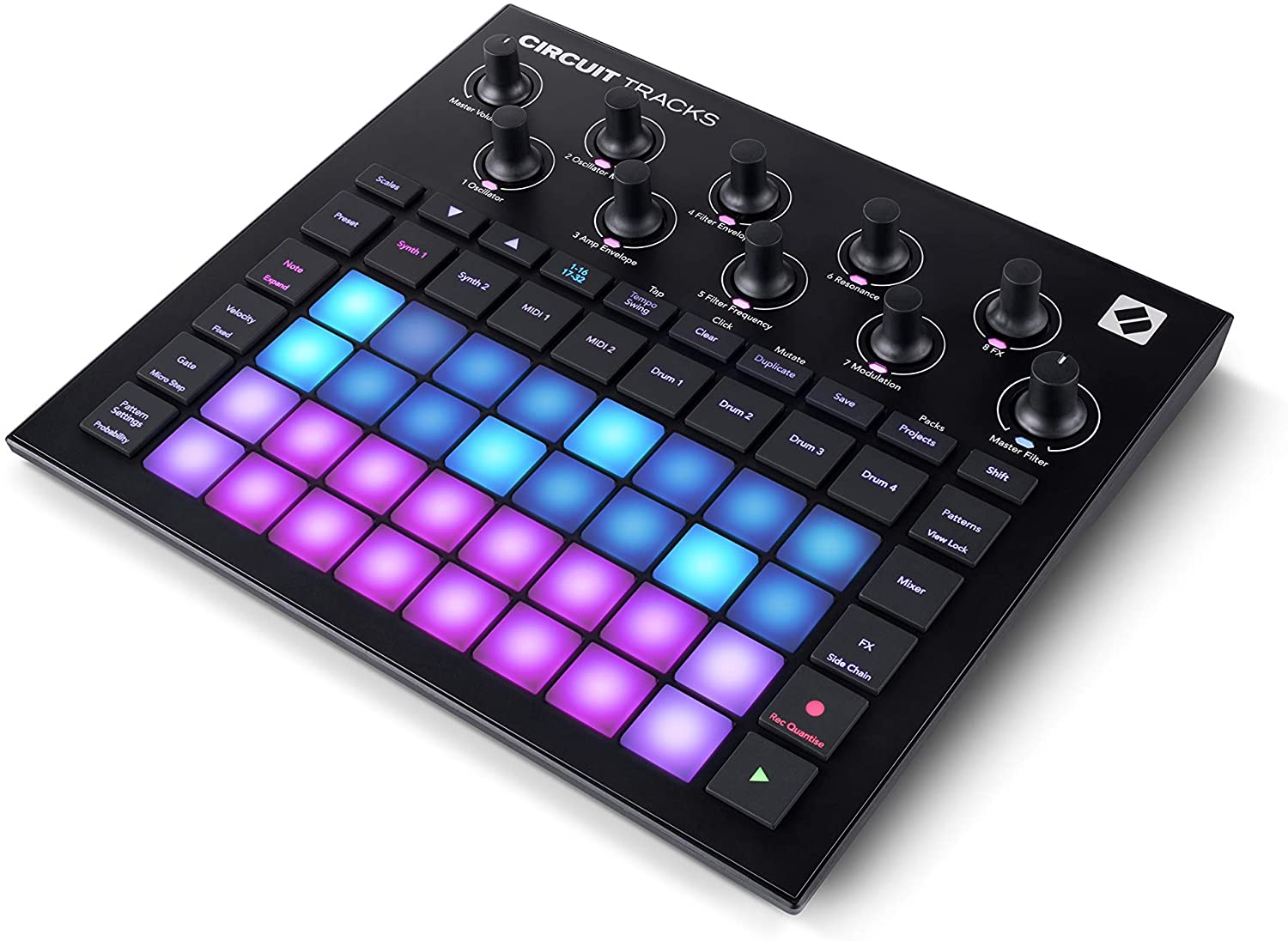

Circuit Tracks is an extraordinary standalone groovebox for the modern producer. With two refined polyphonic digital synth tracks, four drum tracks, creative FX and on-the-go capabilities, it’s the perfect hands-on device for the agile music maker.
Lose yourself
Fast, intuitive and straightforward, Circuit Tracks’ workflow lets you create instinctively, without hesitation. No complex menus or scrolling, just creativity accelerated. Build intricate synth parts and load your own samples with ease, effortlessly construct sequences, douse everything with FX and keep inspired — and make the music you want to make.
Built for performers
Engineered for immediacy and pure creative expression, Circuit Tracks is a performer’s dream. Velocity-sensitive pads and tactile control with customisable patches bring you closer to your music for maximum enjoyment. Define your sound by going off-grid with microtiming, and keep evolving with probability and pattern mutate.
Go where music takes you
Circuit Tracks takes you places, whether in the studio, on stage or off the grid. Rugged, compact build and a rechargeable battery makes Circuit Tracks the perfect travel partner, so it’s never too far away when inspiration hits.
Studio powerhouse
Equally at home alone or among other music machines, Circuit Tracks is a versatile team player. Full-size MIDI in, out, and thru, plus analogue sync out, complements other gear. Two MIDI sequencer tracks let you control and program your external equipment from drum machines to effects units. Audio inputs let you bring all your sounds into the Circuit Tracks environment. Outputs provide monitoring options for all occasions.
Colossal sound
Circuit Tracks’ two polyphonic synth engines let you experiment, expand your creative capabilities and define your sonic palette. Hundreds of artist-made presets, you’ll have the perfect jumping-off point into moulding a unique sound. Load in over three minutes of audio per pack from a microSD card, then shape your samples to perfection across the drum tracks.
Supercharged by Components
Delve into the synth engine on screen, create your own patches with custom macros, load samples, make MIDI templates, backup projects, and get new artist-made sounds using Components, Novation's online companion.
Compare Circuit
Circuit Tracks builds on the immense success of the original Novation Circuit, launched in 2015. To compare the two Circuits side-by-side, and discover the inspirational new features of Circuit Tracks, check out our comparison page.
Technical Specifications

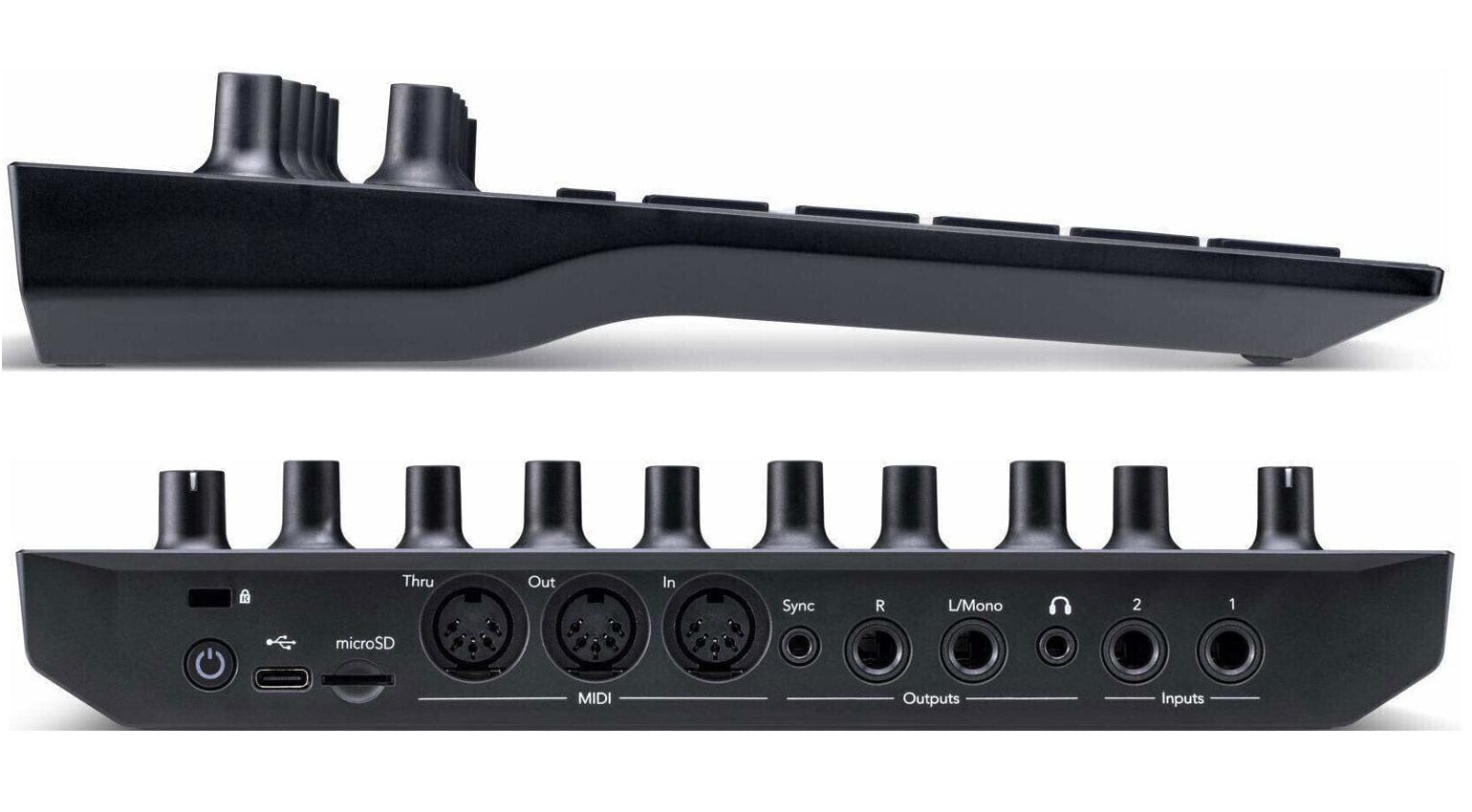

Product Hardware Specifications
- 32 RGB backlit velocity sensitive pads
- 28 RGB backlit tactile click buttons
- Power button with charge status LED
- USB-C socket
- Kensington MiniSaver slot
- MicroSD card slot
- 3x MIDI DIN (In, Out, Thru)
- 3.5mm sync out
- 2x Mono audio in
- L/R Stereo out
- Headphones out
- 8x endless encoders with RGB indicators
- Master volume pot
- Master filter pot with centre detent
Software Compatibility
- Novation Circuit Tracks is class compliant so will work with any modern Mac or Windows PC.
Power Requirements
- USB bus powered
- Built-in rechargeable Lithium-ion battery (up to 4 hour run-time). Charge via USB-C port.
USB Power supply included
Product Dimensions
- 240mm length x 210mm depth x 30mm height (40mm height including knob caps)
