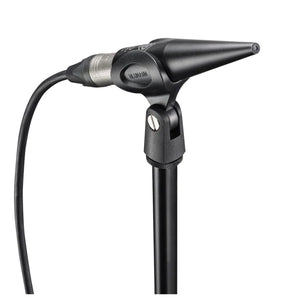

Monitor Alignment Microphone (omnidirectional, electret , 48 V phantom power, with calibration code). Incl. SG 105 microphone clip, software free downloadable. Neumann's Automatic Monitor Alignment MA 1 ensures the best possible sound quality in any room - from home studios to professional control rooms. Using the individually calibrated measurement microphone your acoustic environment is analyzed in a guided process. Advanced calibration algorithms, jointly developed with the world's leading institute in audio processing, Fraunhofer IIS, guarantee an optimally adapted amplitude and phase correction for exact and reliable monitoring.
Features • Callibration algorithms jointly developed with Fraunhofer IIS • For stereo setups with KH 80 DSP and all pairs of analog (non DSP-based) Neumann monitors using the KH 750 DSP subwoofer • Individually calibrated measurement microphone • Room adaptive target curve • Phase and amplitude optimization for analog Neumann monitors • No plug-in or special audio driver is required: Alignment data is stored and processed within the DSP-powered monitors themselves. • For Mac and PC
Specifications Acoustical operating principle: Pressure transducer Directional Pattern: Omnidirectional Frequency Range: 20 Hz - 20 kHz Sensitivity at 1 kHz into 1 kohm: 30 mV/Pa -30 dBV +/- 3 dB uncalibrated | 30 mV/Pa -30 dBV +/- 0,5 dB Calibrated (via software) Rated Impedance: 50 Ohms Rated load impedance: 1000 Ohms Maximum SPL for THD 0.5%: 132 dB Signal-to-noise ratio, A-weighted (re. 94 dB SPL): 67 dB Matching connector: XLR3F Weight: 37 g Dimensions: 117 x 23 mm (length x diameter)
