Stereo set includes two each: KM 184, SG 21 BK, WNS 100 in one woodbox.

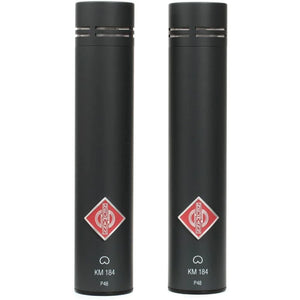

The SKM 184 MT Stereo Matched Microphone Pair from Neumann is a kit containing a stereo matched pair of the KM 184 microphones. The microphones feature cardioid, pressure condenser elements intended for live sound reinforcement and broadcast as well as recording applications. The KM 180 series microphones feature an output stage based on the KM 100. Transformerless circuitry and balanced output result in high output gain with a very low noise floor and no coloration to the output signal. The KM 184 is powered via +48V phantom power.
The stereo pair are matched in sensitivity and frequency response and provide optimum results when capturing performances or ambiance. The 20 Hz to 20 kHz frequency response provides flexibility for use in a wide range of recording situations. The KM 184's cardioid polar pattern provides a generous pick up area and is suitable for ambiance or spot miking instruments such as piano, wind instruments organ and choir. The KM 184 handles sound pressure levels up to 138 dB allowing close miking of instruments high in transient (peak) level response.
SPECIFICATIONS
- Operating Principle Pressure Gradient
- Transducer Condenser
- Polar Pattern Cardioid
- Frequency Range 20 Hz to 20 kHz
- Signal to Noise Ratio 72 dB CCIR
- 81 dB A-Weighted
- Equivalent Noise Level 22 dB CCIR
- 13 dB A-Weighted
- Maximum SPL 138 dB SPL
- THD 0.5%
- Impedance 50 Ohms
- Load Impedance 1000 Ohms
- Sensitivity 15 mV/Pa at 1 kHz into 1 kOhms
- Output Connectors 1 x 3-Pin XLR
- Operating Current Consumption 3.2 mA
- Operating Voltage 48 V ± 4 V
- Length 4.21" / 107 mm
- Diameter 0.87" / 22 mm
- Weight 2.82 oz / 80 g
- Package Weight 1.95 lb
- Box Dimensions (LxWxH) 9.842 x 6.0 x 2.677"
