FEATURES & BENEFITS
|
PRODUCT FEATURE
|
BENEFIT TO THE CUSTOMER
|
|---|---|
| X-ART tweeter, handmade in Berlin |
|
| The air velocity ratio of 4:1 during the sound generation by folded X-ART membrane |
Direct, fast response in the high-range even with complex transients |
| In-phase, simultaneous operation of the woofers below 400 Hz |
|
| Ultra-light but extremely dimensionally stable woofer material (Carbon/Rohacell/Glass fiber) |
Excellent transient response even at high sound levels without breakup of the diaphragm |

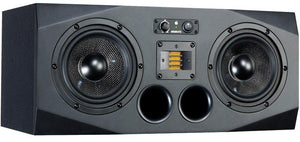

| Unique, horizontal 2.5-way system with 2 x 7" woofers |
Very high resolution of the stereo image and extremely wide stereo base |
| Spacious bass reflex ports on the front |
|
| Highly efficient PWM amplifier for the woofer coupled with an A/ B amplifier for X-ART tweeter |
Low-distortion amplification at both low and high volume levels |
| Linear frequency response of 38 Hz to 50 kHz |
Unbiased reproduction in a very wide frequency band |
| Maximum Peak sound pressure per pair in 1 m ≥ 122 dB |
Powerful, compression-free sound reproduction even at very high sound levels |
| Simple, stepless room acoustic adjustments over tweeter gain, low and high shelf filters |
Allows optimal adaptation to acoustically difficult listening environments |
| Analog XLR and RCA inputs |
Optimized for balanced and unbalanced line signals |
| Acoustically optimized cabinet geometry |
Reduction of unwanted reflections on the cabinets |
| Directional sound radiation in vertical plane |
Reduction of early reflections on the surfaces of, e.g. mixing consoles, desks, etc. |
| Volume control and on/off switch on the front |
Very easy to use |
| Suitable for both near- and mid-field applications |
Enough headroom for different studio environments |
| 2 years warranty with optional extension to 3 years with the registration of the product |
Full repair service if required for 5 years |
TECHNICAL DATA
WOOFER
| Number | 2 |
| Basket Ø | 7" (175 mm) |
| Voice Coil Ø | 1.5" (38 mm) |
| Cone Material | Carbon/Rohacell/Glass Fiber |
TWEETER
| Number | 1 |
| Type | X-ART |
| Diaphragm Area | 4 inch² (2420 mm²) |
| Equiv. Diaphragm Ø | 2" (56 mm) |
| Velocity Transform Ratio | 4:1 |
| Diaphragm Weight | 0.17 g |
BUILT-IN AMPLIFIERS
| Woofer | 1 |
| Type | PWM |
| Amp. Power RMS / Music | 100 W / 150 W |
| Subwoofer | 1 |
| Type | PWM |
| Amp. Power RMS / Music | 100 W / 150 W |
| Tweeter | 1 |
| Type | A/B |
| Amp. power RMS / music | 50 W / 75 W |
CONTROL PANEL
| Input Sensitivity | -∞ to +14 dB |
| High Shelf EQ > 5 kHz | ±6 dB |
| Low Shelf EQ < 300 Hz | ±6 dB |
| Tweeter Gain | ±4 dB |

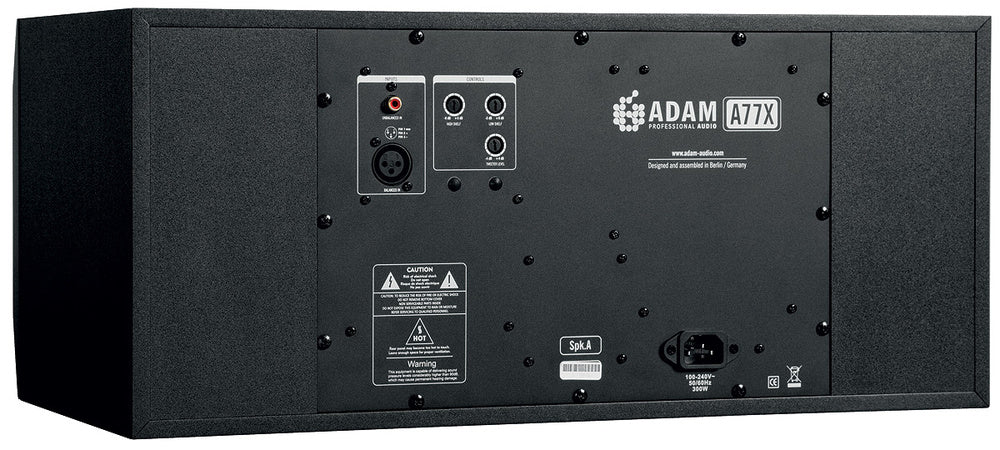

INPUT CONNECTORS
| Analog | XLR / RCA |
GENERAL DATA
| Frequency Response | 38 Hz - 50 kHz |
| THD 90 dB / 1 m > 100 Hz | ≤0.5 % |
| Max. SPL with sine wave acoustic 100 Hz to 3 kHz at 1 m | ≥114 dB |
| Max. SPL per pair at 1 m | ≥122 dB |
| Crossover Frequencies | 400 / 3000 Hz |
| Input Impedance | 30 kOhm |
| Panel | Front |
| Weight | 28.2 lb (12,8 kg) |
| Magnetically Shielded | No |
| Height x Width x Depth | 9.5" (235 mm) x 21" (530 mm) x 11" (280 mm) |
| Warranty | 5 years (2 years warranty plus 3 years optional with product registration) |
| Delivery Contents | Power cord, manual |
