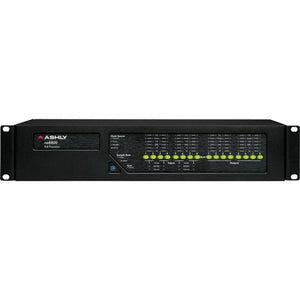

The ne8800MS from Ashly is a network-enabled DSP processor that offers easy setup and control using standard 10/100 Ethernet protocol and Protea ne software. The unit features eight analog inputs and eight analog outputs, along with four microphone inputs with phantom power and eight channels of AES3 output, the later filling two of the four option bays that provide expanded functionality.
The DSP signal processing library is extensive and utilizes multiple SHARC 32-bit processors with sample rates of either 48 or 96 kHz. Processing blocks include a 8 x 8 matrix mixer, a full array of graphic, parametric and all-pass equalization, crossover filters including 8th-order Butterworth, Bessel, Linkwitz-Riley and notched Linkwitz-Riley.
The Protea Software Suite also includes an automatic feedback suppressor, gain sharing automatic microphone mixing, ambient noise sensing and level adjustment, autolevelers, compressors, matrix duckers, limiters, frequency-keyed noise gates, signal delay up to 1365 ms on every channel and a choice of sinewave, pink or white noise generators.
All programming is accomplished using standard 10/100 Ethernet or RS-232 protocol and Protea ne software on a PC platform. Hot-plug software control allows for plugging any function into any channel block, even when running live audio with recompiling necessary. Automatic DHCP network IP configuration reduces network set up time. Multi-level software security with password access provides a tamper-proof audio system.
Frequency Response | 20 Hz to 20 kHz, +/-0.1 dB, A>D +/-0.25 dB, D>A +/-0.25 dB, A>A |
Dynamic Range | 20 Hz to 20 kHz (unweighted) >115 dB, A>D >114 dB, D>A >114 dB, A>A |
THD + N | 1 kHz, +20 dBu analog (-1.0 dBFS digital) >0.001%, A>D >0.002%, D>A >0.002%, A>A >0.00001%, D>D |
Latency |
@48 kHz 1.42 ms, A>D 0.90 ms, D>A 2.21 ms, A>A 0.10 ms, D>D @96 kHz 0.71 ms, A>D 0.45 ms, D>A 1.11 ms, A>A 0.05 ms, D>D |
Wordclock | Input/Output Type: 75 Ω BNC Lock Range: 48 kHz +/- 4%, 96 kHz +/- 4% Input Impedance: Selectable 75 Ω or high impedance Input Voltage Range: 1.0 to 7.0 Vpp Output Impedance: 75 Ω Output Level: 5.0 Vpp nominal, unterminated |
Master Clock |
Sources Audio network Wordclock AES3 Internal crystal clock Modes Prioritized auto switching Manual |
Inputs |
Analog Line/Microphone Input Type: Active balanced Euroblock Input Impedance: 20 kΩ Maximum Input Level: +20 dB |
Outputs |
Analog Servo-Balanced Euroblock Output Impedance: 20 Ω Maximum Output Level: +20 dBu AES3 Transformer Balanced Male XLR Output Impedance: 110 Ω Maximum Output Level: 5.0 Vpp |
Other Connectors | 10/100 Ethernet port RS-232 port Remote level control Logic I/O Data in/out ports On/Off switch |
Environmental | 40 to 120°F (4 to 49°C) non-condensing |
Power Requirements | 90~240V AC, 50/60 Hz 70 W maximum |
System Requirements | Computer running under Windows 8, 7, Vista, XP (32- and 64-bit systems) |
