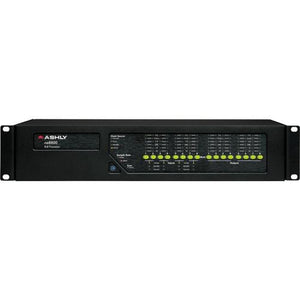

ne4400 w/ 4-ch mic inputs.
Connecting and controlling an audio processor for networked systems has now been simplified with Ashly's NE-Series digital signal processors. These Network Enabled (NE) processors offer ease of use, setup and control using standard 10/100 Ethernet protocol and Protea NE Software. No special outboard control units are needed.
Standard units are analog line input/output format of 8x8 with four option bays supporting network audio, AES/EBU, and mic input options. The DSP signal processing library is extensive and utilizes multiple SHARC 32-bit/96kHz processors with sample rates of either 48kHz or 96kHz.
All programming is accomplished using standard 10/100 Ethernet or RS-232 protocol and Ashly's Protea NE Software on a PC platform. Hot-plug software control allows you to plug any function into any channel block even when running live audio with no latency or recompiling necessary. Automatic DHCP network IP configuration reduces network set up time.
Additional features include: network audio routing at matrix mixer to inputs from outputs, or in/out of matrix mixer, 8 link groups on most functions, automatic master clock switchover between network, word clock, AES/EBU, and internal clock, a high-performance analog audio path.
Available hardware options are: 4-channel mic/line input option with software controllable gain and phantom power, CobraNet network audio input and output, EtherSound network audio input and output, AES/EBU digital audio input and AES/EBU digital audio output.
Ashly ne8800M Features:
- 10/100 Ethernet and RS-232 computer interface is standard
- Extensive DSP available
- Easy and intuitive user interface
- 24-bit A/D-D/A audio resolution
- 32-bit SHARC DSPs
- Sample rates of 48kHz and 96kHz
- Hot-plug software control
- Automatic DHCP network IP configuration
- Butterworth, Bessel, Linkwitz, and Notched-Linkwitz filters
- Advanced automatic feedback suppression
- Word clock input and output
- Euroblock connectors for audio, preset recall, DC remote level control and data in/out
- Four dedicated remote controls for Level, Logic I/O and Programmable Functions
- Third party control friendly
- Input and output metering
- Multi-level Security
- Five year worry-free warranty
Rear Panel:
- 10/100 Ethernet port
- RS-232 port
- Euroblock inputs
- Euroblock outputs
- Four option bays
- Word clock in and out
- Logic I/O
- Data in and out ports
- On/Off switch
Accessories Available (SOLD SEPARATELY):
- WR-1 2-ch Level Control
- WR-2 Four Position Switch
- WR-5 Programmable Selector
- RD/RW8C 8-ch Level Control
Overall Sonic Performance:
- Analog in, digital out:
- Frequency Response, 20Hz-20kHz: +/-0.1dB
- Dynamic Range, 20Hz-20kHz, unweighted: >115dB
- THD+N, 1kHz, +20dBu analog (-1dBFS digital): <0.001%
- Latency at 48kHz (96kHz): 1.42ms (0.71ms)
- Digital in, analog out:
- Frequency Response, 20Hz-20kHz: +/-0.25dB
- Dynamic Range, 20Hz-20kHz, unweighted: >114dB
- THD+N, 1kHz, +20dBu analog (-1dBFS digital): <0.002%
- Latency at 48kHz (96kHz): 0.90ms (0.45ms)
- Analog in, analog out:
- Frequency Response, 20Hz-20kHz: +/-0.25dB
- Dynamic Range, 20Hz-20kHz, unweighted: >114dB
- THD+N, 1kHz, +20dBu analog (-1dBFS digital): <0.002%
- Latency at 48kHz (96kHz): 2.21ms (1.11ms)
- Digital in, digital out:
- Frequency Response, 20Hz-20kHz: NA
- Dynamic Range, 20Hz-20kHz, unweighted: NA
- THD+N, 1kHz, +20dBu analog (-1dBFS digital): <0.00001%
- Latency at 48kHz (96kHz): 0.10ms (0.05ms)
Inputs/Outputs:
- Analog Audio Inputs: Active balanced Euroblock:
- Input Impedance: 20k ohms
- Max Input Level: +20dBu
- Digital Audio Inputs: Transformer balanced female XLR:
- Input Impedance: 110 ohms
- Max Input Level: 7.0Vp-p
- Analog Audio Outputs: Servo-balanced Euroblock:
- Output Impedance: 20 ohms
- Max Output Level: +20dBu
- Digital Audio Outputs: Transformer balanced male XLR:
- Output Impedance: 110 ohms
- Max Output Level: 5.0Vp-p
Digital Audio Hardware:
- Sample Rates: 48kHz, 96kHz
- DSP Processing: 32-bit floating-point SHARC processor array
- Audio Input Source Selection: Selectable in adjacent channel pairs from analog, digital, or network inputs
- Network Audio Routing: Selectable between Input/Output or internal to matrix mixer
- Digital Audio Output Jitter: 0.5ns average, 1.0na peak
Digital Control:
- Ethernet Control: Standard RJ45 10/100 Ethernet with auto-configuration
- RS-232 Control: Standard female D-sub 9-pin jack
- 4-pin Active Remote: 4-pin Euroblock for phantom-powered bi-directional remotes
- Logic Input: 9-pin Euroblock for (8) assignable 5V logic Inputs
- Logic Outputs: Shared with logic inputs. +12V at 10mA output high, 100mA input low
Analog Control:
- Remote Attenuators: 10-pin Euroblock for (8) assignable 0-5VDC passive remote attenuators
Ashly ne8800M Specifications:
- Power Requirements: 90-240 VAC, 50-60Hz, 70W maximum
- Shipping Weight: 14 lbs
- Dimensions: 19" W x 3.5" H x 8.5" D
- Environmental: 40-120 deg. F, non-condensing
