ASHLY ne24.24M 4x8 - Ashly NE24.24M 4X8 Audio Matrix Processor with Tamper-Proof Operation and System Software for Windows

Protea DSP Audio Matrix Processor 4-In x 8-Out.

Ashly’s NE24.24M Network DSP Matrix Processor is a high quality quiet cost-effective mainframe unit that offers
maximum input & output flexibility in your installations. The NE24.24M can be configured with any number of inputs &
outputs in blocks of four channel cards with a maximum of 24 ins/outs per mainframe. The Protea™ DSP suite offers a
full selection of equalization crossover delay AGC and priority choices.

NE24.24M accessories include decora wall remotes – the neWR-5 Network Remote the WR-5 Wall
Remote the WR-1 and WR-2 serial remotes and the RD-8C & RW-8C Eight-Channel Remote Faders.

NE Series Processors | ne24.24M

Connecting and controlling an audio processor for networked systems has now been simplified with Ashly's NE-Series Protea ne24.24M digital signal processor. This Network Enabled (NE) processor offers ease of use setup and control using standard 10/100 Ethernet protocol and Protea NE Software. No special outboard control units are needed. The ne24.24M Matrix Processor uses modular expansion cards to provide up to twenty-four channels of audio matrixing and processing. The base unit offers a four-input/four-output configuration. Each input and output expansion card has an individual DSP processor allowing you to expand the base unit's total inputs or outputs four channels at a time. These cards are easily iinstalled in the field without the need to reprogram the device.

Matrixing allows you to route any input to any output and control individual levels once they have been assigned. Fixed path architecture and extensive processing power per channel will reduce the amount of time it takes to set up your system. All programming is accomplished using Ashly's Protea NE Software on a PC platform. No front panel controls and multi-level software security assures you a tamperproof audio system. Input channel processing blocks include Mic Preamp with Phantom Power Gain Delay fifteen EQ Filters Gate Autoleveler and Ducker. Inputs may be configured as either mic or line level. Output channel processing blocks consist of a Cross Point Mixer HPF/LPF Delay fifteen EQ Filters Gain and Limiter. The cross point mixer in the output section allows you to route any input to any output at any level and mute any input at any output without affecting the true input configuration. The HPF/LPF block offers Bessel Butterworth and Linkwitz-Riley filters with 12 18 24 and 48dB/octave slopes.

Whether you are designing or installing a system for corporate boardrooms restaurants courtrooms houses of worship left/center/right theatres auditoriums or conference centers the Protea ne24.24M will more than satisfy your requirements for any zoned system requiring input/output matrixing with signal processing.

Features:

• 10/100 Ethernet and RS-232 computer interface Is standard
• Extensive DSP Available
• Easy and intuitive user interface
• Mic/Line inputs
• 24-bit A/D-D/A audio resolution
• 24-bit/150 MHz DSPs
• Up to 24 channels of audio processing
• 4x4 base unit configuration
• Expand inputs or outputs 4 channels per module
• Modules easily field installable
• Euroblock connectors for audio preset recall DC remote level and data
• 31 preset locations
• Four dedicated remote controls for Level Preset Recall and Programmable Functions
• Third Party Control Friendly
• Input and output metering viewable in dBu
• Multi-level Security
• Five year warranty
• Safety/Compliance: FCC CE RoHS

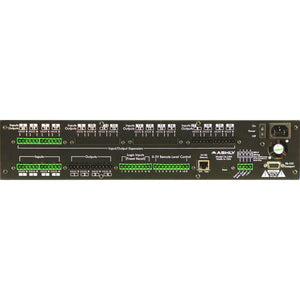

Rear panel:

• 10/100 Ethernet port
• RS-232 Port
• Euroblock inputs
• Euroblock outputs
• Remote level control
• Preset Recall
• Data in and out ports

Accessories:

• Four Channel Input Module
• Four Channel Output Module
• GPO Logic Output Module
• WR-1 2-ch Level Control
• WR-2 Four Position Switch
• WR-5 Programmable Wall Remote
• RD/RW8 8-ch Level Control
• neWR-5 Programmable Network Wall Remote
• FR-8/FR-16 Network Fader Re
