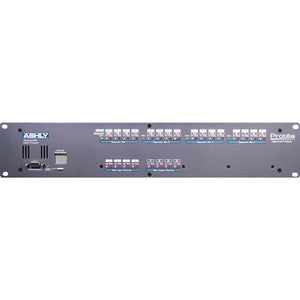

The Protea 24.24M from Ashly is an audio matrix processor without front-panel control, and provides multiple routing options, along with very comprehensive DSP processing, both on input and output. The base unit (with four-inputs and four-outputs) is suitable for installation in corporate boardrooms, restaurants, courtrooms, houses of worship, left/center/right theatres, auditoriums or conference centers.
The lack of front-panel control allows the unit to be installed in situations where secure, tamper-proof operation is required. Programming is achieved via the included Protea System software running on a Windows based computer. Additionally, various accessories are available for controlling volume and presets from a remote location without the use of a computer, once the unit has been initially set up.
The Protea 24.24M can be expanded to a toatal of twenty-four audio channels using optional four-channel expander cards. The expander cards are configured for either input or output, are field installable, and contain their own DSP and A/D/A converters. The latter insures that all processing blocks remain available on each input and output, regardless of the number of installed channels. On installation, the base unit automatically recognizes their presence without further programming.
Firmware updates can easily be installed without taking the unit out of its operating environment. With excellent audio fidelity and a full compliment of processing blocks, the Protea 24.24M will satisfy any requirements for a zoned system, requiring input/output matrixing and signal processing.
