8 input stereo mixer with EQ, sends • Safety Agency Listed • 3-Band Channel EQ w/Sweepable Mid Frequency Center • + 48V Phantom Power for Condenser Mics • High gain (84dB Channel Input to Program Output) Ensures Full Output with Low Level or Distant Mics • Transformer Isolated + 24dBm 600ohm Balanced XLR Stereo Program Outputs w/Left and Right Master Controls and Mute Switching • Insert Jacks on Each Channel • Optional Precision Input Transformers (MX-ITC) • Independent Mono Output w/Level Control • 2 Aux Sends per Channel • 2 Master Aux Sends • 2 Master Aux Returns (1-Stereo & 1-Mono, both Pannable) • One Stereo Tape/CD Input/Output.

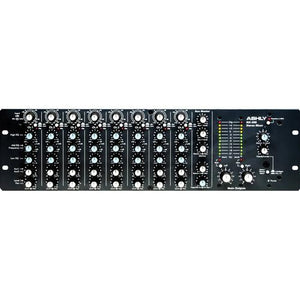

The Ashly MX-508 is a full featured stereo audio mixer designed for recording and sound reinforcement applications. The MX-508 features 8 channels with stereo 1/4" TRS line level inputs on each channel. In addition every channel features balanced 3-pin XLR microphone inputs with globally switched +48V phantom power.
Send & Return inserts are located on every channel enabling signal to be routed to external processors, monitor mixers, recorders, etc. Two Stereo Aux sends provide additional routing for effects processors. Transformer balanced XLR stereo main outputs provide the highest possible output gain with minimal noise floor. Secondary transformer-less, 1/4" phone outputs provide additional stereo output when necessary. Sub I/O's allow cascading multiple mixers. A 3-band EQ with sweepable mid range is provided on every channel. The MX-508 is designed in a rack mountable enclosure for easy transport and storage.
