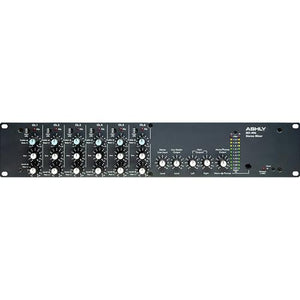

The Ashly MX-406 is a six input audio mixer with line and microphone inputs on each channel. The MX-406 may be used to supplement larger consoles or for use as a stand alone mixer in sound-reinforcement, portable installations and project studios. The MX-406 features six studio grade, low-noise XLR and 1/4" combination connectors that are capable of microphone and line level signal. Each input features -20, -40 and -60dB input gain control settings.
All mic preamps are capable of supplying +48V phantom power (globally switched) to condenser microphones. The output section features stereo balanced 1/4" phone line XLR mono connectors. Unbalanced L/R RCA stereo connections are featured for connecting player / recorder devices. 1/4" TRS Phone inserts are featured on all inputs and enable routing to external signal processors. The front panel features Level, Pan and a 3-band EQ control. Its compact, 2U (two space) rackmount design allows easy storage and transport for mobile use.
Total # Of Inputs | 6 - Balanced 3-pin XLR & 1/4" Phone Combination Jacks |
Mic/Line Inputs | 6 - Balanced 3-pin XLR Microphone 6 - Balanced 1/4" Phone |
Stereo Line Inputs | Stereo Line Input: L/R Stereo RCA Phono |
In-Line Inputs/Returns | not applicable |
AUX Sends | Aux Master Output: Single Stereo 1/4" TRS Phone |
AUX Returns | No |
Inserts | Input Channels 1 through 6: Single Stereo 1/4" TRS Phone |
BUS (Group) Outputs | Stereo output bus only |
2 Trk Master I/O | Stereo Output: L/R Balanced 1/4" TRS Phone Stereo Line Output (Record): L/R RCA Phono |
ALT I/O | Mono Output: Balanced 3-pin XLR |
Monitor Outputs | Headphone Output: 1/4" TRS Phone |
EQ Section | Bass +/- 12dB @ 70Hz, shelving Treble +/- 12dB @ 8KHz, shelving |
Solo/Mute | Individual channel Mute switches & Stereo Output Mute switch |
Channel Level Control | Sealed Rotary Potentiometers (POTS) |
Trim/Gain Control | same as Channel Level |
Phantom Power | +48 VDC supplied to all mic inputs |
Metering | PEAK INDICATORS: Peak Clip indicator on each input channel and left and right outputs, illuminates 3dB below clipping |
Frequency Response | 20Hz - 20kHz +0.5 / -1.0dB |
Dynamic Range | Not Specified by Manufacturer |
Signal-to-Noise Ratio | (20Hz - 20kHz noise bandwidth): EIN: <-127dBu Residual Output Noise: <-100dBu TRS outputs, all levels at minimum Residual Output Noise: <-80dBu Aux Out, Aux Master and all Ch. Aux at nom. |
Total Harmonic Distortion (THD) | Less than 0.05% THD @ +4dBu, 20Hz - 20kHz |
Power Supply | 100-240V, 50-60Hz, 30 watts |
Dimensions | 19 x 3.50 x 8" (482.60 x 88.9 x 203.2mm) (WxHxD) |
Weight | 15 lbs (6.80 kg) |
