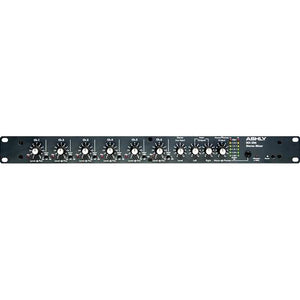

The Ashly MX-206 Stereo Microphone Mixer is a 6-input microphone mixer designed to supplement larger consoles or for use as a stand alone mixer in sound-reinforcement and portable installations. The MX-206 features 6 studio grade, low-noise XLR 3-pin microphone preamps. Each input features a 20dB Pad switch that avoid signal overload due to excessive gain.
All of the MX-206's microphone preamps are capable of supplying +48V phantom power (globally switched) to condenser microphones. The output section features a balanced XLR mono, and L/R RCA stereo outputs. An Aux stereo input also features unbalanced L/R RCA stereo input connections and can be used to input signal from playback devices or additional mixers. The front panel features Level and Pan control as well as -20, -40 & -60dB gain switches for each input channel. The MX-206's compact, single-rack-space design allows easy storage and transport for mobile use.
Total # Of Inputs | 6 - Balanced 3-pin XLR |
Mic/Line Inputs | 6 - Balanced 3-pin XLR Microphone Inputs |
Stereo Line Inputs | No |
In-Line Inputs/Returns | not applicable |
AUX Sends | No |
AUX Returns | No |
Inserts | No |
BUS (Group) Outputs | Stereo output bus only |
2 Trk Master I/O | Master Output: L/R Balanced 1/4" TRS Phone Tape I/O: L/R RCA Phono |
ALT I/O | Mono Output: Balanced 3-pin XLR |
Monitor Outputs | Headphone Output: 1/4" TRS Phone |
EQ Section | No |
Solo/Mute | Individual channel Mute switches & Stereo Output Mute switch |
Channel Level Control | Sealed Rotary Potentiometers (POTS) |
Trim/Gain Control | same as Channel Level |
Phantom Power | not applicable |
Metering |
VU Meters: Two 5-segment LED meters. 0 VU = +4dBu Peak Indicators: Left and right peak clip indicators |
Frequency Response | +/- 0.2dB 20Hz - 20kHz |
Dynamic Range | Not Specified by Manufacturer |
Signal-to-Noise Ratio | (20Hz - 20kHz noise bandwidth): -100dBu residual output noise, all level at minimum -87dBu master out, master level and one input level at unity gain |
Total Harmonic Distortion (THD) | Less than 0.02% THD @ +20dBu, 20Hz - 20kHz |
Power Supply | 120VAC nominal, 93VAC minimal, 50-60Hz, 12 watts (240VAC available) |
Dimensions | 19 x 1.75 x 6.6" (482.60 x 44.45 x 167.64mm) (WxHxD) |
Weight | 8 lbs (3.63 kg) |
