4-Channel Mic / Line Input Dante Converter with built-in DSP Mixer
MM-4D/IN-E
Built-in DSP 4 mic/line input Dante converter to respond to various needs of contractor market and professional audio scene.

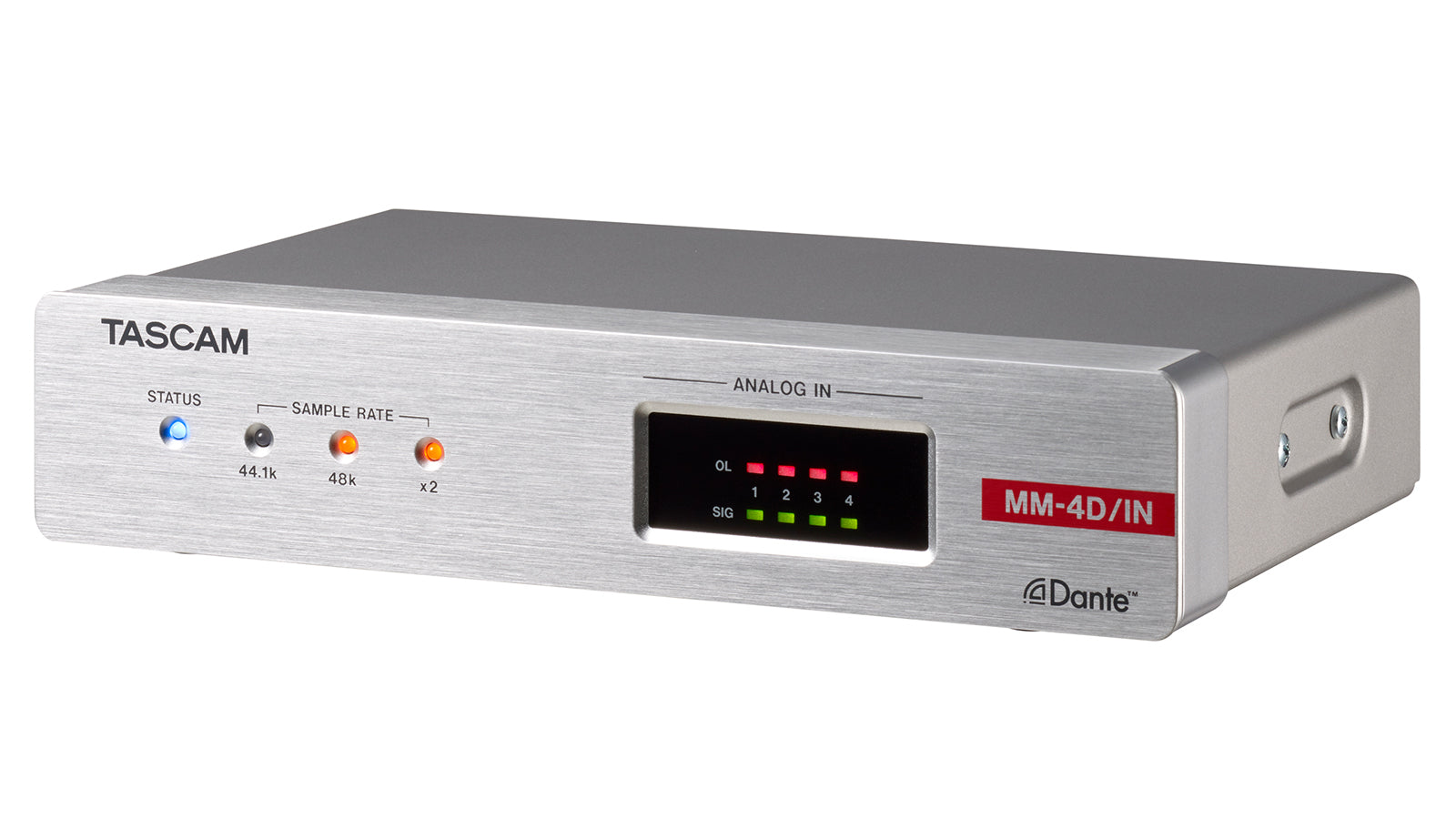

The MM-4D/IN-E is a compact converter that converts 4-channel mic/line input signals into Dante signals. With half the size of a standard 1U rack, the MM-4D/IN-E is suitable for different Dante systems as an exquisite analog output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. MM-4D/IN-E supports up to 96kHz/24bit and uses Euroblock connectors for analog mic/line input.
Features at a glance
- 4-channel mic/line input with phantom power (+48v) support
- Supports remote mic gain control
- 4 Dante input/output
- Supports PoE (Power over Ethernet)
- Up to 24bit/96kHz
- Includes a variety of DSP functions for optimal use in different scenes/environments (Output effects, 8 in/4 out matrix mixer)
- Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch
- Compatible with Dante Domain Manager and Dante AES67 Mode
- Flexible scene preset function allows to work in different area situations (Up to 50 presets)
- Timer event function allows to automatically switch scenes at a specified time (planned to be compatible on a future version update)
- 2 types of user control software available for Windows/Mac/iOS/Android devices:
For integrators: input/output routing selection, DSP/design/scene settings of the complete system, etc.
For end-users: simple app design for only the necessary functions such as area volume settings, etc.
- Remote control via GPI and Dante
- Half-rack mountable size
- Equipped with indicators that show LAN/Dante connection status and sample rate
- Equipped with signal indicators that monitor line input signals
- Configurable reference level (via remote control only)
- Surface rack mountable angles for installation under desks included
- Optional accessories:
AC adapter PS-P1220E for redundant power supply available
Rack-mountable shelf AK-RS1 to install and store two Dante Compact Processor models in a 19 inch rack case
-
Spec description
| General |
|
| Formats and channels |
44.1/48/88.2/96kHz,16/24-bit, 4 channels |
| Input/output ratings |
|
| DATA/DATA+PoE connectors |
|
| Connector |
RJ-45 |
| Transmission protocol |
Dante |
| Gigabit Ethernet standard |
1000BASE-T (IEEE 802.3ab) |
| Cables |
category 5e or faster STP cables |
| ANALOG IN connectors |
|
| Connector |
XLR-3-31 (1: GND, 2: HOT, 3: COLD) |
| Minimun input level |
-70 dBu |
| Maximum input level |
+26 dBu |
| Input impedance |
2.0 kΩ or higher |
| Control input/output |
|
| External control connectors(LED/SWITCH) |
|
| Connectors |
Euroblock 3.81mm pitch |
| LED connectors |
|
| Output format |
open collector (10Ω output impedance, 48V withstand voltage, 35mA maximum current) |
| Low level maximum output voltage |
0.5 V |
| SWITCH connectors |
|
| Maximum input voltage |
5.5 V |
| High level minimum input voltage |
2.31 V |
| Low level maximum input voltage |
0.99 V |
| Other |
|
| Power |
PoE class 0
TASCAM PS-P1220E AC adapter (sold separately) |
| Power consumption |
7.5W |
| Dimensions |
214 x 44.45 x 136.1 mm (W x H x D, including protrusions) |
| Weight |
885 g |
| Operating temperature range |
0°C-40°C |
| Included items |
Installation brackets, Euroblock plugs, Cable band kit, Owner's manual (including warranty) |
Audio performance
| MIC IN → DANTE OUT |
|
| Mic amp EIN (equivalent input noise) |
-125 dBu (150Ω, 22kHz LPF+A, JEITA) |
| Frequency response |
+/-0.5 dB: 20 Hz - 20 kHz(44.1/48kHz sampling frequency, JEITA)
+/-0.5 dB: 20 Hz - 40 kHz(88.2/96kHz sampling frequency, JEITA) |
| Distortion (THD+N) |
0.003 %(when -1 dBFS input, 44.1/48/88.2/96kHz samplingfrequency, JEITA) |
| S/N ratio |
108 dB (44.1/48/88.2/96kHz sampling frequency, JEITA) |
| Crosstalk |
100 dB (44.1/48/88.2/96kHz sampling frequency, JEITA) |
| Dynamic range |
108 dB (44.1/48/88.2/96kHz sampling frequency, JEITA) |
Note: JEITA indicates compliance with JEITA CP-2150
MM-4D/IN, ML-4D/OUT, MM-2D, AE-4D comparison chart
Input channels
| Products |
Analog (Mic/Line) |
Digital (AES/EBU) |
Digital (Dante) |
| MM-4D/IN-X |
4ch |
- |
4ch |
| MM-4D/IN-E |
4ch |
- |
4ch |
| ML-4D/OUT-X |
- |
- |
4ch |
| ML-4D/OUT-E |
- |
- |
4ch |
| MM-2D-X |
2ch |
- |
4ch |
| MM-2D-E |
2ch |
- |
4ch |
| AE-4D |
- |
4ch |
4ch |
Output channels
| Products |
Analog (Line) |
Digital (AES/EBU) |
Digital (Dante) |
| MM-4D/IN-X |
- |
- |
4ch |
| MM-4D/IN-E |
- |
- |
4ch |
| ML-4D/OUT-X |
4ch |
- |
4ch |
| ML-4D/OUT-E |
4ch |
- |
4ch |
| MM-2D-X |
2ch |
- |
4ch |
| MM-2D-E |
2ch |
- |
4ch |
| AE-4D |
- |
4ch |
4ch |
Input/Output/GPI connectors
| Products |
Analog |
Digital (AES/EBU) |
Digital (Dante) |
GPI |
| MM-4D/IN-X |
XLR |
- |
RJ45 |
- |
| MM-4D/IN-E |
Euroblock |
- |
RJ45 |
Euroblock |
| ML-4D/OUT-X |
XLR |
- |
RJ45 |
- |
| ML-4D/OUT-E |
Euroblock |
- |
RJ45 |
Euroblock |
| MM-2D-X |
XLR |
- |
RJ45 |
- |
| MM-2D-E |
Euroblock |
- |
RJ45 |
Euroblock |
| AE-4D |
- |
XLR |
RJ45 |
- |
