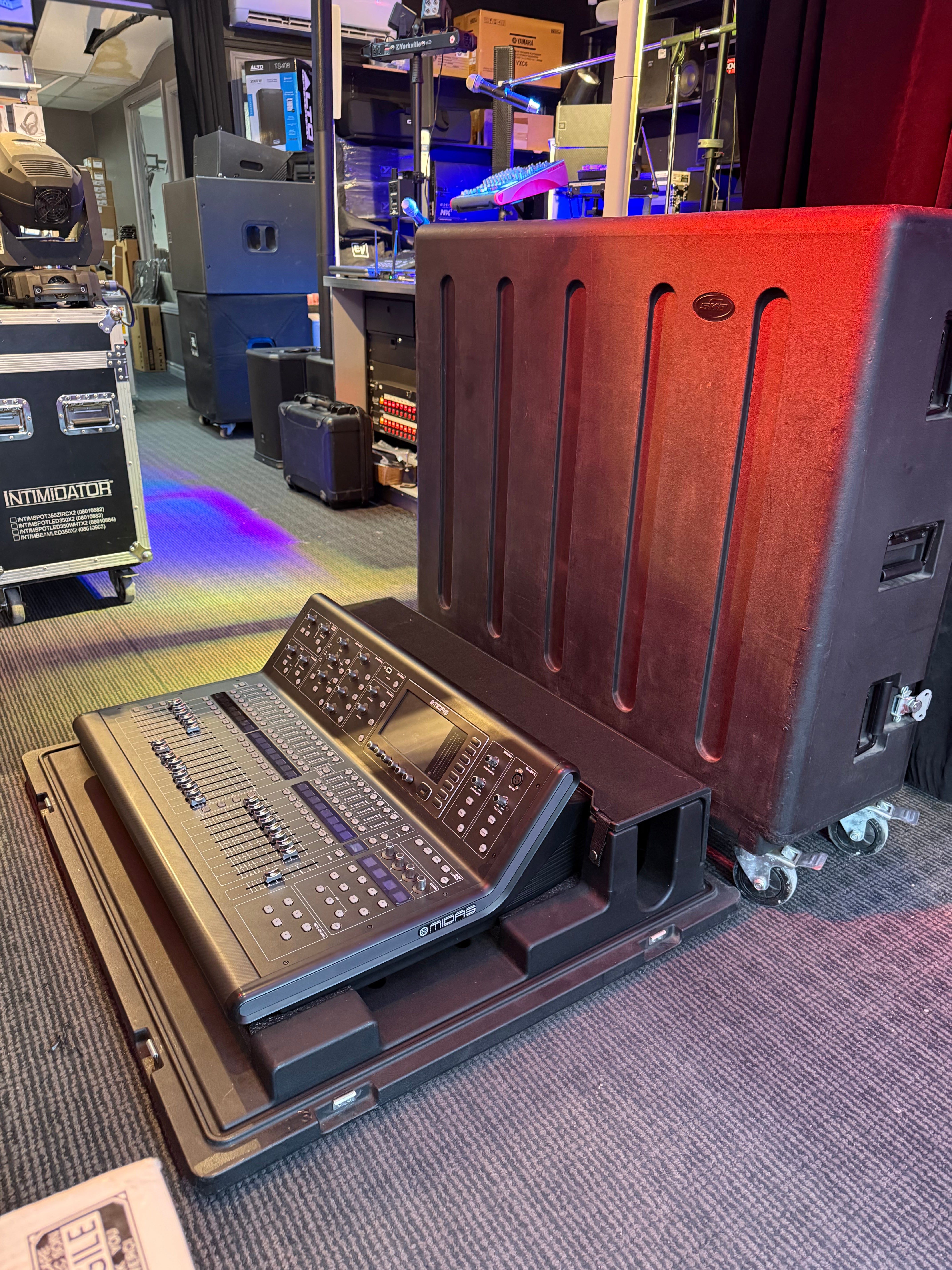

Midas M32 LIVE + DL 32 + 2 GATOR CASE (Pre owned - super clean - 30 days warranty) 40-Channel Digital Console

Product Features

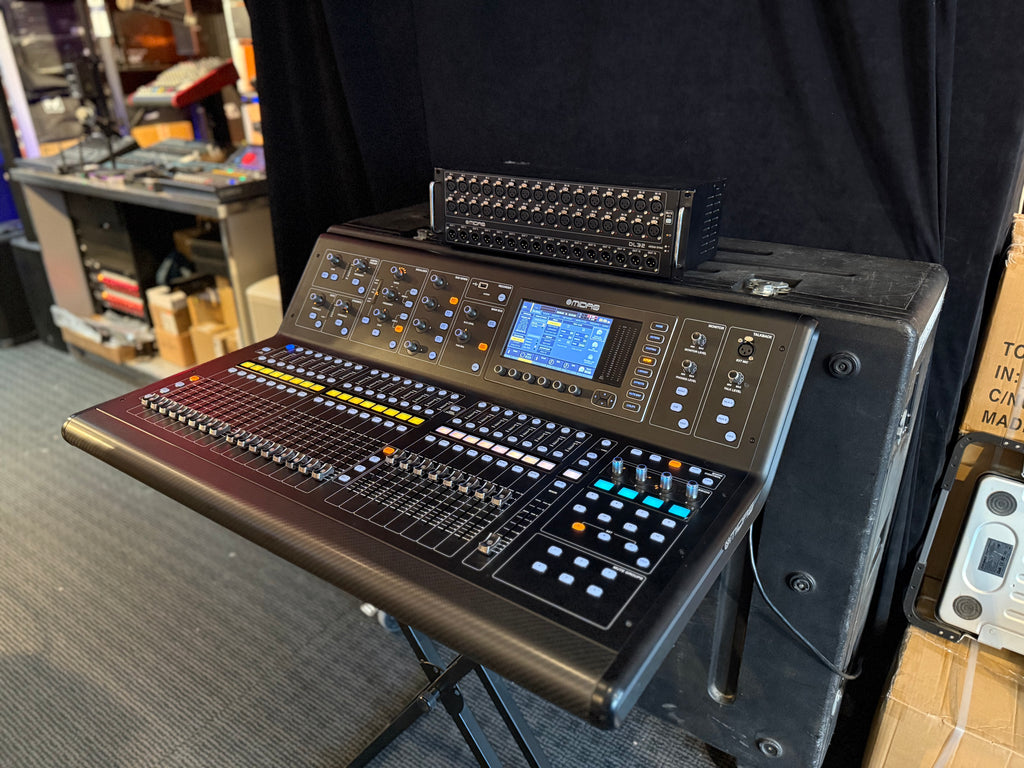

32 LIVE
Digital Console for Live and Studio with 40 Input Channels, 32 Midas PRO Microphone Preamplifiers and 25 Mix Buses and Live Multitrack Recording.

The M32 LIVE console combines legendary Midas sound quality with advanced digital technology, future-proof floating point audio engine, extremely low-latency design and industry-leading 192 kHz ADC and DAC converters, creating a revolutionary mid-format live console. M32 LIVE features ultra-sleek styling, offering you a truly luxurious mixing experience. High-end construction materials include carbon fibre provide unparalleled durability and strength, plus substantially lower weight than comparable consoles.

The M32 LIVE utilises award-winning Midas PRO Series microphone preamplifiers and the custom-designed Midas PRO motorised faders that are rated for 1 million life cycles-three times more than other leading consoles.

FEATURES/SPECIFICATIONS
• Live performance and studio recording digital console with up to 40 simultaneous input channels
• 32 award-winning Midas PRO microphone preamplifiers
• 25 time-aligned and phase-coherent mix buses
• AES50 networking allows up to 96 inputs and 96 outputs
• 32 bi-directional channels of live recording/playback on dual SD/SDHC (cards not included)
• Up to 3 hours of 32 channel PCM recording in one session (stored as uncompressed WAV files)
• High-performance carbon fibre, aluminum and high-impact steel structure
• 40 bit floating point digital signal processing
• 8 DCA and 6 mute groups
• 8 digital signal processing effects engines
• 25 Midas PRO motor faders
• Daylight viewable 7 full colour TFT display screen
• 32 x 32 channel USB 2.0 audio interface
• DAW remote control emulations of Mackie Control and HUI protocols
• Optional wireless remote control with Midas Apps for iPhone and iPad
• Auto-ranging universal switch-mode power supply
• 10-Year Warranty Program (upon registration with MIDAS)

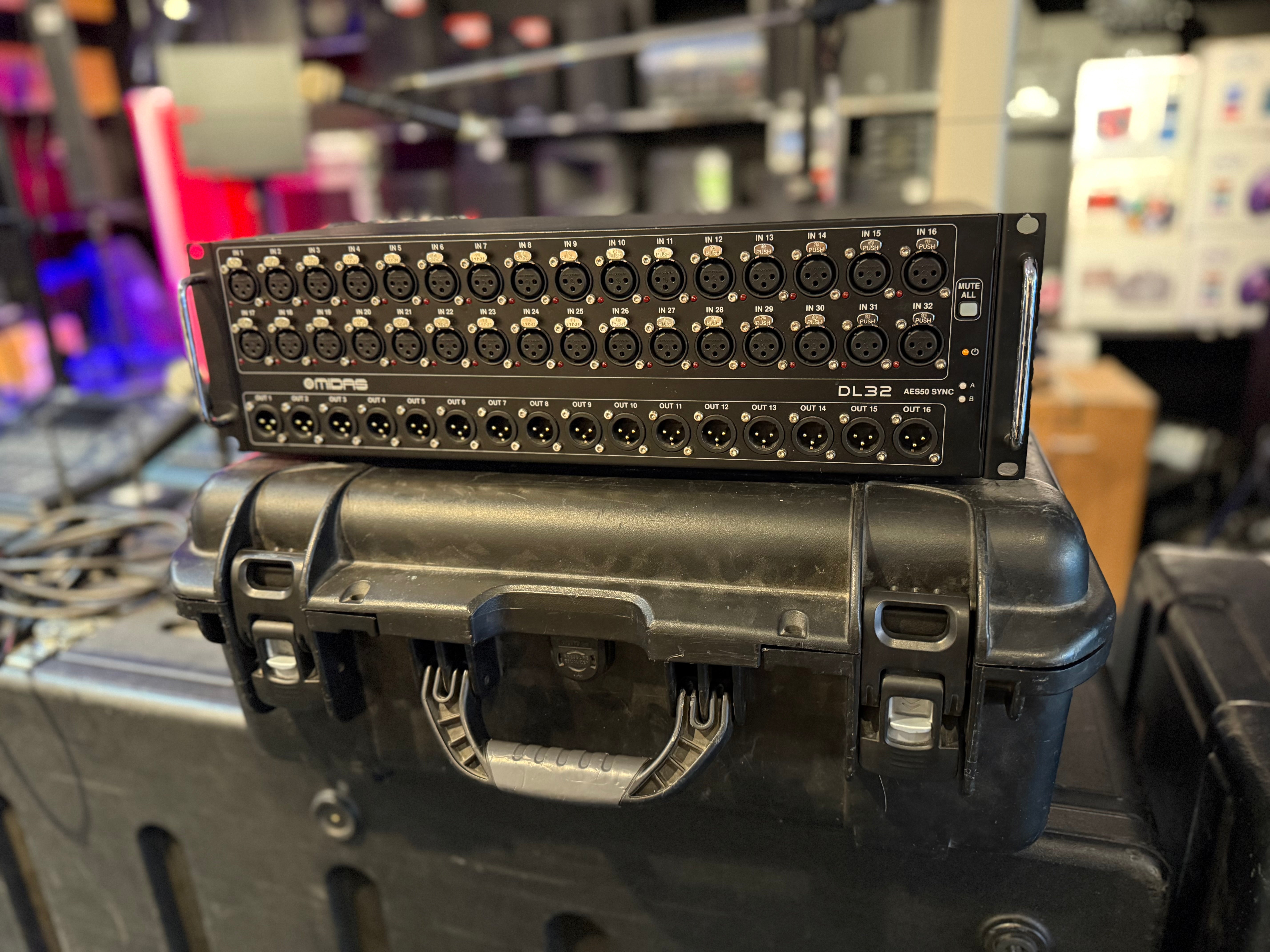

DL32

Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. The DL32 is the perfect solution for connecting the onstage talent with your Front of House (FOH) console, and the rest of the world – the I/O packed and highly affordable DL32 digital stage box.

The DL32 provides 32 MIDAS PRO Series remote-controllable mic preamps, plus 16 balanced analog XLR returns at the stage end – and all it takes is a single Cat 5e cable (up to 100 m / 328'). While KLARK TEKNIK, the industry-leader in high-end digital audio processing, invented the AES50 SuperMAC technology that made it all possible – our superb scale of production makes the DL32 so very affordable.

MIDAS - The Legend in Sound Quality

Ever since our formation in the 1970s, we have had a long history of innovation and leadership in the world of audio mixing consoles. Employed by the most famous touring acts and installations worldwide, legendary consoles, such as the XL4 and Heritage H3000 have quickly become industry standards.

We have earned an impeccable reputation due to our no-compromise approach to audio and build quality, and in particular for our Award-winning Mic Preamps, which are considered by industry experts as the industry’s best-sounding designs. Building on this legacy, the XL8 and PRO Series of Live Mixing Systems continue this great heritage of Award-winning audio quality.

Massive Connectivity

When used as part of a complete M32 system, two DL32 Stage Boxes can be cascaded via the builtin AES50 ports, providing connectivity for up to 64 mic/line inputs, 32 balanced outputs and the ULTRANET port allows direct connection to TURBOSOND iQ Series loudspeakers and the BEHRINGER POWERPLAY P-16 Personal Monitoring System – which can feed up to 48 individual monitor mixers. We also included 2 optical ADAT sockets and AES-3 (AES/EBU) for connecting to outboard devices, a convenient USB port for system updates via your PC – plus MIDI I/O for lighting systems and sound module control.

Standalone Snake Mode

The DL32 was initially designed with our flagship M32 Digital Mixing Console in mind, but any mixing board with AES50 networking capability can still tap into the DL32’s powerful feature set. So even if the gig calls for an analog board, you can quickly assemble a couple of DL32 and XL48 to create a high-performance, lightweight 32 x 16 digital snake – with full remote preamp control.

ULTRANET – Seamless Integration

The world-renowned engineers at KLARK TEKNIK, MIDAS, TURBOSOUND and BEHRINGER have all come together to create something truly innovative that will change your live and studio workflow forever – welcome to ULTRANET. This revolutionary technology seamlessly transmits up to 16 independent channels of 24-bit digital audio and control data via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Advantages realized through ULTRANET digital networking, versus traditional analog methods include: audio signals are impervious to Radio Frequency Interference (RFI); signal crosstalk is eliminated, and ease of use translates directly into a significant amount of time saved during show setup or installation. ULTRANET effectuates a powerful digital eco-system, which we call “Acoustic Integration”, providing unparalleled control over every element of your audio production environment from one convenient location.

KLARK TEKNIK AES50

KLARK TEKNIK SuperMAC (AES50-Compliant) technology gives the DL32 its high-capacity, ultra-low latency digital interconnectivity, as well as superbly simple deployment and ease of use. KLARK TEKNIK engineers worked hand-in-hand with MIDAS to ensure the DL32 meets, or exceeds, the requirements of live entertainers and their professional audio engineers. Some of the outstanding features are:

• 48 bidirectional audio channels over Cat 5e cable (48 kHz)
• Single cable duplex interconnection for audio and sample clocks
• Ethernet physical layer audio data transmission
• High channel count and ultra-low deterministic latency
• Accurate phase-aligned clock distribution.
• Comprehensive error detection and management
• Provision for redundant networking
• Minimal confi guration – total ease of deployment and use
• Ethernet TCP/IP protocol-compatible auxiliary data channel
• Royalty-free implementations available as Xilinx FPGA cores
• OEM modules available from developer partners

Extraordinary Value

As you can see, the DL32 is an extremely versatile 32 x 16 digital stage box solution with our remote-controllable mic preamplifiers, KLARK TEKNIK’s AES50 connectivity and a wealth of other professional-grade features – all at a price anyone can afford. Built tough enough to withstand the rigors of the road, the DL32 only takes up two rack spaces and connects to FOH with a single, inexpensive CAT5 cable.

Now you can have the missing link between the stage and FOH at a fraction of the cost of competing systems – and we back it up with a comprehensive warranty program.

Features:

• 32 award-winning MIDAS PRO microphone preamplifiers with switchable +48 V phantom power
• 16 electronically balanced low impedance line level outputs
• ULTRANET personal monitoring system connectivity for in-ear applications
• Dual ADAT* outputs for use in splitter mode and stand-alone digital multicore applications
• Two AES-3 ports (AES/EBU), e.g. for directly connecting PA system controllers with digital inputs
• Remote operation up to 100 m via CAT5/5e cable
• MIDI In/Out for bidirectional communication between FOH console and on-stage MIDI devices
• Features Neutrik etherCON* AES50 and ULTRANET network ports
• Rugged 3U rackmount chassis for durability in portable applications
• Auto-ranging universal switch-mode power supply
• Mute-All-Inputs function for quietly patching any inputs on stage
• 3-Year Warranty Program**
• Designed and engineered in England
