Studio-grade Discrete Class A D-PRE Mic Preamps with an Inverted Darlington Circuit
- Musical X-pressive EQ based on Yamaha famed VCM Technology
- Professional 1-knob Compressors with LED Indicators
- High-grade Dual Digital Effects Processors: Advanced REV-X and Classic SPX
- Stereo Hybrid Channels utilizing a Powerful, Proprietary DSP
- Digital Connectivity for iPod/iPhone
- FREE MGP Editor for Detailed Control of the Console's DSP settings via iPod/iPhone
- Rugged, Impact-resistant, Powder-coated Metal Chassis

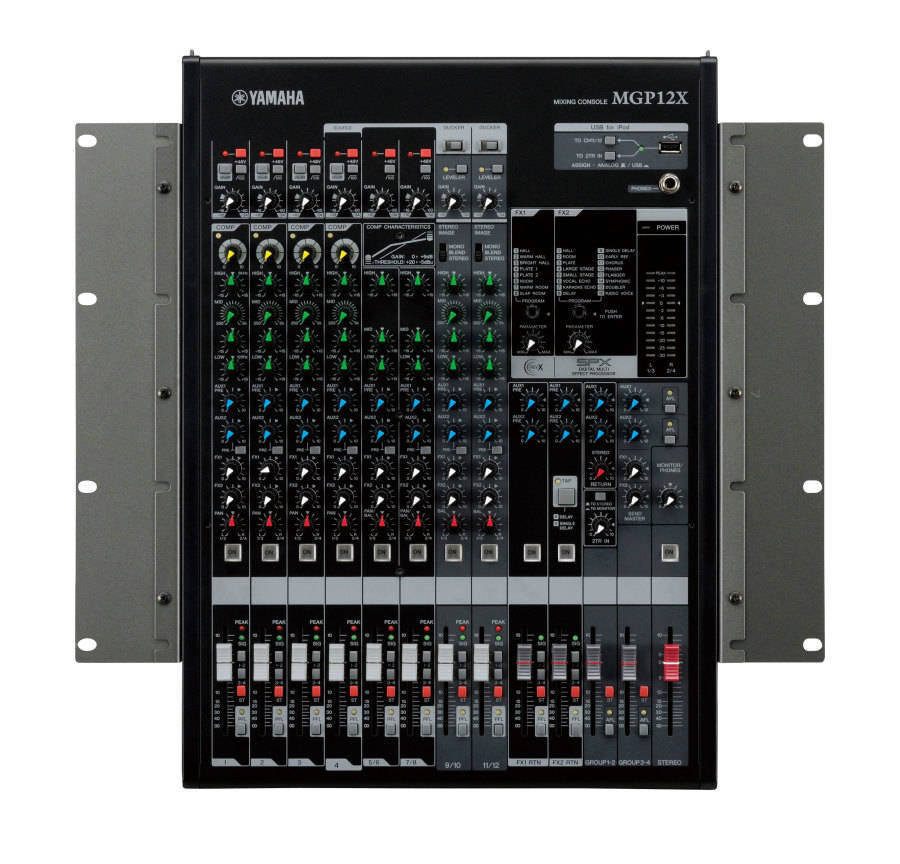

- Integrated Rack-ears for Easy Rack Mounting
- Internal Universal Power Supply for World-wide Use
-
6 MIC inputs with 48V phantom power and HPF per channel10 Mic Inputs with 48V Phantom Power and HPF per Channel
- Additional 2TR Inputs Provided to Accept the Output from Analog Devices or iPod/iPhone
- 12 LINE inputs (4 mono and 4
stereo) - 4 GROUP Buses + ST Bus
- 2 AUX Sends + 2 FX Sends
Outline
| Mixing capability | Mixing channels | 12 Line Inputs (4 mono and 4 stereo) |
|---|---|---|
| GROUP | 4 GROUP Buses + ST Bus | |
| AUX | 2 AUX Sends + 2 FX Sends | |
| Input channel functions | Compressor CH1-4,HPF(100Hz 12dB/oct), CH EQ(MONO) ±,15dB(Max.):High 8kHz shelving/ Mid 250Hz-5kHz peaking(CH1-4,9-12)/ Low 125Hz shelving, CH EQ(STEREO) ±,15dB(Max.):High 8kHz shelving/ Mid 2.5kHz peaking(CH5-8)/ Low 125Hz shelving | |
| On-board processors | FX1:REV-X(8 PROGRAM, PARAMETER control), FX2:SPX (16 PROGRAM, PARAMETER control) | |

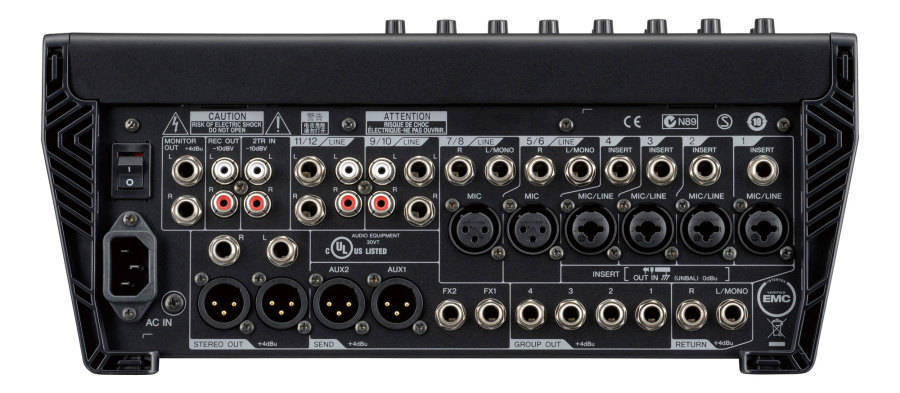

| I/O | Mic inputs | MIC:6 (100Hz 12dB/oct) |
| Phantom power | 48V phantom power per channel | |
| Line inputs | LINE: 4mono+4stereo, CH INSERT IN: 4, RETURN: 1stereo, 2TR IN: 1 stereo | |
| Digital I/O | USB Audio USB IN/OUT: iPod, iPhone exclusive |
General specifications
| Total harmonic distortion | 0.02% (20Hz-20kHz@ +14dBu) | |
|---|---|---|
| Frequency response | +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz | |
| Hum &, noise level | Equivalent input noise | -128 dBu (20Hz&ndash,20 kHz, Rs=150&Omega,, Input Gain = Maximum) |
| Residual output noise | -102 dBu (20Hz&ndash,20 kHz, Rs=150&Omega,, Input Gain = Maximum) | |
| Crosstalk | -74dB @ 1kHz | |
| Power requirements | 100-240V 50Hz/60Hz | |
| Power consumption | 45W max | |
| Dimensions | W | 348mm |
| H | 143mm | |
| D | 495mm | |
| Net weight | 7.5kg | |
