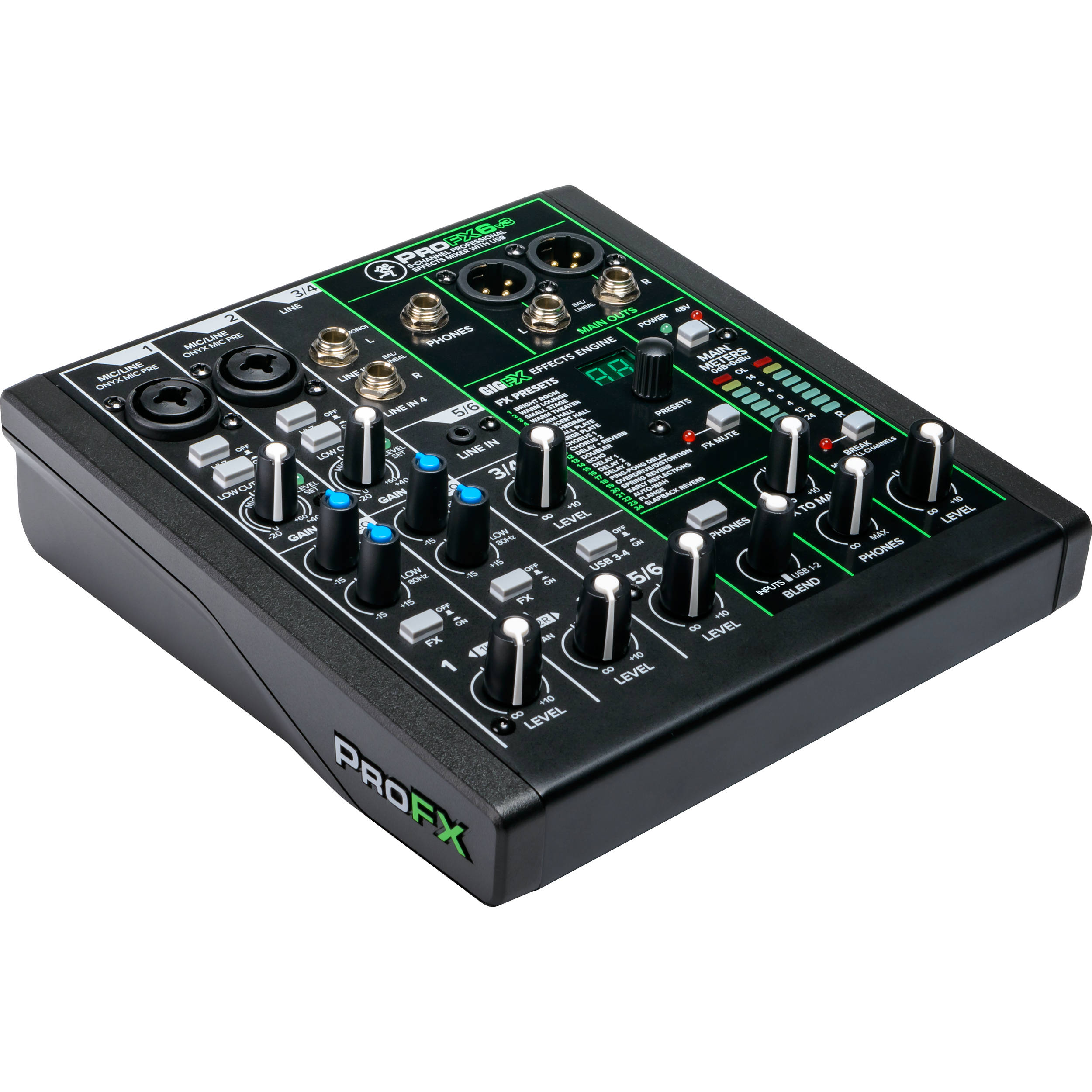

The Mackie ProFX6v3 is a 6-channel mixing console featuring two Onyx microphone preamps with 60 dB of headroom and a built-in effects engine with 24 built-in FX, making it well suited for live sound, home recording, and content creators. The integrated 2x4 USB audio interface offers high-quality 24-bit / 192 kHz recording and playback with zero-latency monitoring.
Channels 1-2 offer combo XLR-1/4" mic/line connections and feature Hi-Z (for guitar and bass), low-cut filters (100 Hz), gain controls, 2-band EQ, stereo linking, level faders, and FX send. Channels 3-4 offer two 1/4" inputs and feature a level control, while channels 5-6 use a 3.5mm stereo input with level fader. Engaging channel 5-6's USB3-4 switch will override the 3.5" input and enables the USB return from a computer. The master output is controlled with a dedicated level knob and features XLR and 1/4" connectors, while the dedicated 1/4" TRS headphone output includes an independent level control. Other features include Input-USB 1-2 blend control, FX mute, and FX to main.
Number of Analog Input Channels | 6 |
Number of Mic Preamps | 2 |
Analog Output Channels | 2 x Stereo Master Output 1 x Stereo Headphone Output |
Meters | Main Meter: 2 x 8-Segment LED |
Meter Range | Main Meter: -24 dB to +14 dB Plus Peak/Clip |
EQ Parameters | Low: ±15 dB at 80 Hz High: ±15 dB at 12 kHz |
Filters | High-Pass: 100 Hz, 18 dB/Octave |
Built-In Effects | 24 x Preset (Factory) |
Bit Depth | 24-Bit |
Frequency Response | Mic Input to Output: 20 Hz to 30 kHz +0/-1 dB (Unity Gain) |
Max Input Level | +22 dB |
Output Level | Main Output: +28 dBu at Max Gain All Other Output: +22 dBu at Max Gain |
I/O Impedance | Mic Input: 3.8 Kilohms Insert Return: 10 Kilohms Line Input: ≥ 20 Kilohms Headphone Output: 25 Ohms Main Output: 120 Ohms (Unbalanced) 240 Ohms (Balanced) |
Crosstalk | Adjacent Inputs: -90 dB at 1 kHz Input to Output: -80 dB at 1 kHz Fader Off: -75 dB at 1 kHz Muted: -90 dB at 1 kHz |
CMRR | 70 dB at Max Gain (1 kHz, Mic In to Main Out) |
EIN | -126 dBu at Max Gain (150-Ohm Input) |
Noise Floor | All Outputs: -95 dBu (Master Level at -∞, Channel Levels at -∞) -80 dBu (Master Level at Unity, One Channel Level at Unity) |
THD+N | Mic Input to Main Output: < 0.03% (+4 dBu) |
Phantom Power | +48 V, Selectable On/Off (Applied to All Inputs) |
USB | 1 x USB Type-B (USB 2.0) |
USB I/O Capacity | 2 x Input / 4 x Output |
AC Input Power | Universal: 100 to 240 VAC, 50 / 60 Hz |
Power Supply Output | 12 VDC at 2 A |
Rack Mountable | No |
Dimensions | 2.9 x 7.5 x 8.4" / 7.1 x 19 x 21.3 cm |
Weight | 2.6 lb / 1.2 kg |
Package Weight | 4 lb |
Box Dimensions (LxWxH) | 19 x 13 x 9" |
