Description

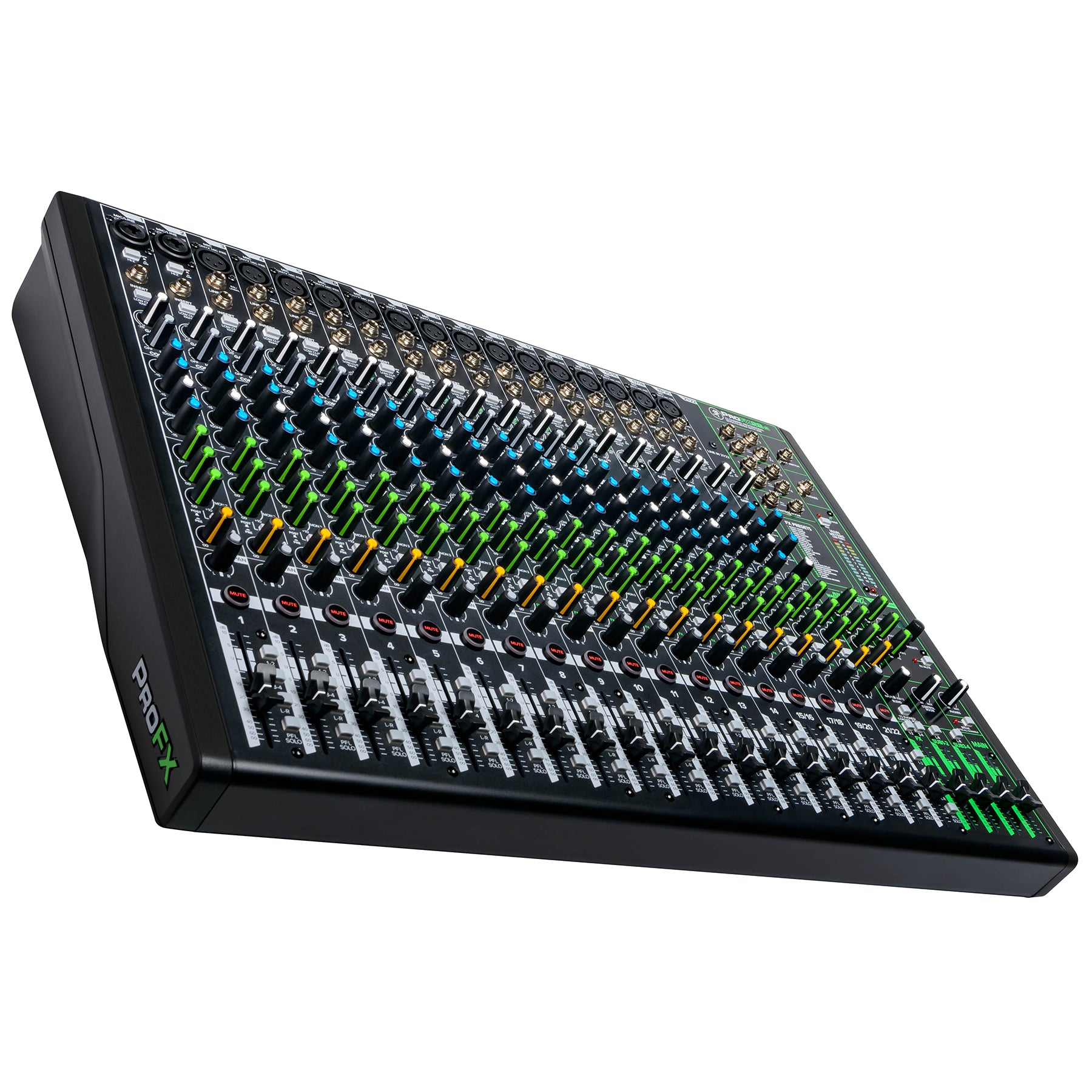

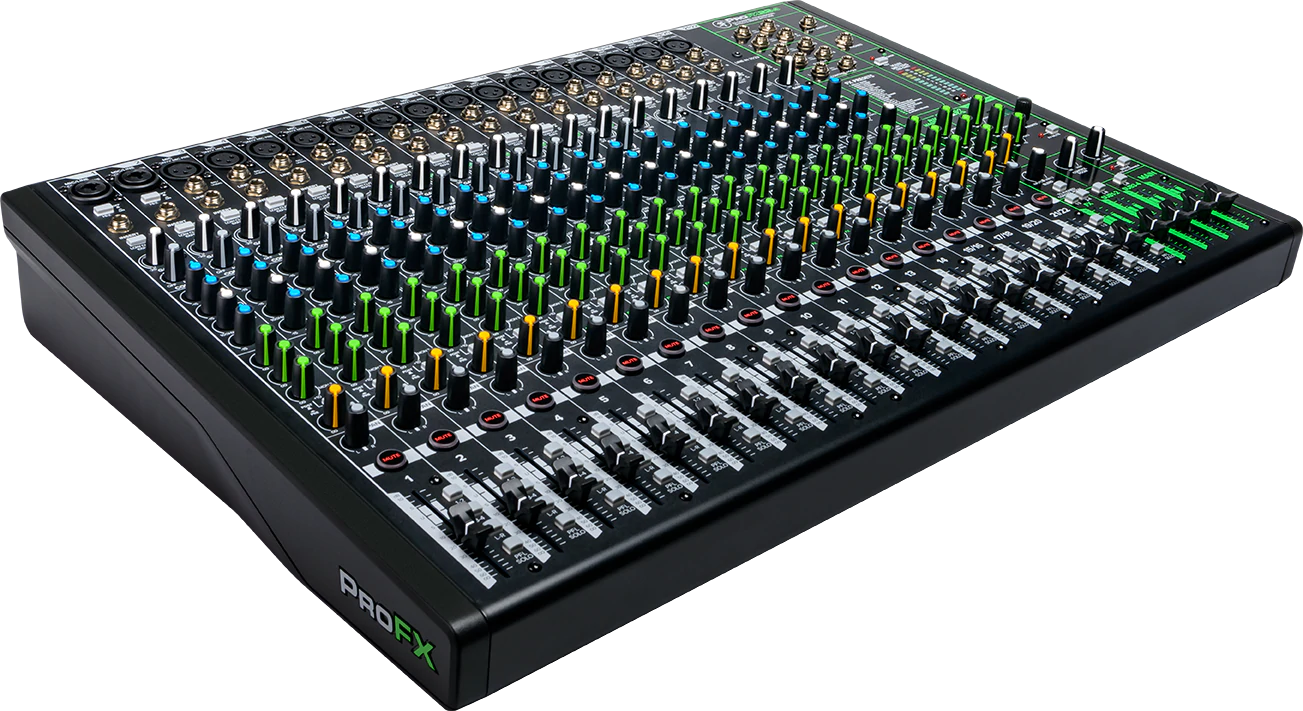

The Mackie ProFX22v3 is a 22-channel mixing console featuring 17 Onyx microphone preamps with 60 dB of headroom and a built-in effects engine with 24 built-in FX, making it well suited for live sound, houses of worship, rehearsal studios, and more. The integrated 2x4 USB audio interface offers high-quality 24-bit / 192 kHz recording and playback with zero-latency monitoring.
Channels 1-2 offer combo XLR-1/4" mic/line connections and a Hi-Z switch (for guitar and bass), while channels 3-20 offer XLR or 1/4" inputs. Channels 1-12 provide single-knob compressors, while channels 1-14 include inserts. Channels 15/16, 17/18, and 19/20 offer two 1/4" line inputs each (L and R for stereo), while channel 21/22 uses a 3.5mm stereo input. Channels 1-22 feature gain controls, a 3-band EQ, three aux sends for monitors, a dedicated FX send, pan, mute, and level faders. Engaging channel 21/22's USB 3-4 switch will override the 3.5mm input and enable the USB return from a computer.
Each channel strip includes button selectors for Main L/R, Sub 1-2, Sub 3-4, and PFL SOLO. The master section offers dedicated faders for Main, Sub 1-2, Sub 3-4, and FX. Main output connectors include both XLR and 1/4", while sub and control room outputs use 1/4" connectors. A dedicated 1/4" TRS headphone output includes its own independent level control. Other features include an input / USB 1-2 blend control, a dedicated FX output, an FX level fader, and an FX mute, which can also be controlled via the 1/4" footswitch input.
Features
- Professional Sound Quality
- Equipped with 17 Onyx Mic Pres offering up to 60 dB of gain and ultralow noise performance
- GigFX Effects Engine with 24 different FX options, from reverbs to delays and more
- Essential Mixing Tools
- 3-band EQ on all channels
- Channels 15–20 feature mic inputs and stereo 1/4" line inputs for maximum versatility
- Hi-Z switches allow you to connect guitars, basses, and other instruments
- 100 Hz low-cut filter and 48V phantom power on all mic channels
- Stereo 3.5mm input on channel 21/22
- Aux/Monitor outputs with dedicated per-channel send controls
- Stereo Subgroup output busses with per-channel assignments
- Headphone output with separate level and blend control
- Insert jack on channels 1–14
- Pre-fader solo on all channels
- Footswitch input for FX Mute
- Single-knob compression helps keep your input levels in check
- 24-Bit / 192 kHz 2x4 USB Recording Interface
- 2x4 USB I/O allows you to create two custom mixes on your computer to send back in to the mixer
- Perfect for live performance recording, music playback, live streaming, and more
- Latency-Free Monitoring
- Easily blend between monitoring your computer’s output and a direct feed from the mixer
- Professional Production Content
- Pro Tools | First and Waveform OEM professional software and plugin packages included
- The Musician Collection for ProTools | First includes 23 plugins including 304E EQ, 304C Compressor, BBD Delay, Black Op Distortion, Black Shiny Wah, Black Spring Reverb, C1 Chorus, DC Distortion, Eleven Lite, Flanger, Graphic EQ, Gray Compressor, Green JRC Overdrive, In-Tune, Orange Phaser, Roto Speaker, Sci-Fi, Studio Reverb, Tape Echo, Tri Knob Fuzz, Vari-Fi, Vibe, Phaser, and White Boost
- The DAW Essentials Bundle for Waveform OEM includes 16 powerful plugins like Equalizer, Compressor, Reverber8, and Limiter
- Signature Rugged Design
- Mackie built-like-a-tank design
- Solid steel chassis protects your investment
- Tough ABS side protection
Included Software with Avid Pro Tools | First
You also get Tracktion's Waveform OEM and the DAW Essentials Collection.
In addition to the powerful plug-ins within Pro Tools | First, this mixer comes with the exclusive Mackie Musician Collection featuring 23 fantastic plug-ins, including:
- Avid 304E EQ: Add musical warmth with a treble and bass equalizer with sweepable mid control
- Avid 304C Compressor: Tweak the clarity, balance, and rhythmic feel of music with this optical-modeled compressor
- BBD Delay: Create delay, chorus, and vibrato effects based on a classic guitar pedal
- Black Op Distortion: Add rich distortion based on a classic distortion pedal
- Black Shiny Wah: Achieve the famous classic tones of a respected wah wah pedal
- Black Spring Reverb: Get the twang and space of a vintage amplifier
- C1 Chorus: Emulates a classic chorus pedal
- DC Distortion: Dial up a range of overdriven tones with this Avid custom distortion effect
- Eleven Lite: Get the sound of popular guitar amps and speaker cabinets
- Flanger: Create esoteric sounds with this homage to vintage and modern flangers
- Graphic EQ: Sculpt frequencies with ease
- Gray Compressor: Add warmth to tracks based on a vintage Ross compressor
- Green JRC Overdrive: Get the coveted sounds of a classic IC overdrive pedal
- In-Tune: Keep your instruments in tune with this digital tuner
- Orange Phaser: Create interesting effects with this phase shifter based on a classic design
- Roto Speaker: Re-create the sounds of a Leslie rotary speaker cabinet
- Sci-Fi: Add analog synth-type ring and frequency modulation
- Studio Reverb: Create natural-sounding reverb and ambient effects
- Tape Echo: Add vintage analog delay and chorus effects
- Tri Knob Fuzz: Get the Hendrix tone with this fuzz box based on one of the first fuzz pedals
- Vari-Fi: Create the effect of audio changing tape speed
- Vibe Phaser: Add phase-shift and rotary speaker effects
- White Boost: Boost gain without coloring tone
| Number of Analog Input Channels | 22 |
| Number of Mic Preamps | 17 |
| Analog Output Channels | 2 x Stereo Master Output 1 x Stereo Control Room/Monitor Output 2 x Stereo Bus/Subgroup Output 3 x Mono Aux Send Output 1 x Mono FX Send Output 1 x Stereo Headphone Output |
| Meters | Main Meter: 2 x 12-Segment LED |
| Meter Range | Main Meter: -30 dB to +15 dB Plus Peak/Clip |
| EQ Parameters | Low: ±15 dB at 80 Hz Mid: ±15 dB at 100 Hz to 8 kHz High: ±15 dB at 12 kHz |
| Filters | High-Pass: 100 Hz, 18 dB/Octave |
| Built-In Effects | 24 x Preset (Factory) |
| Bit Depth | 24-Bit |
| Frequency Response | Mic Input to Output: 20 Hz to 30 kHz +0/-1 dB (Unity Gain) |
| Max Input Level | +22 dB |
| Output Level | Main Output: +28 dBu at Max Gain All Other Output: +22 dBu at Max Gain |
| I/O Impedance | Mic Input: 3.3 Kilohms Insert Return: 10 Kilohms Line Input: ≥ 20 Kilohms Headphone Output: 25 Ohms Main Output: 120 Ohms (Unbalanced) 240 Ohms (Balanced) |
| Crosstalk | Adjacent Inputs: -90 dB at 1 kHz Input to Output: -80 dB at 1 kHz Fader Off: -75 dB at 1 kHz Muted: -100 dB at 1 kHz |
| CMRR | 70 dB at Max Gain (1 kHz, Mic In to Main Out) |
| EIN | -128 dBu at Max Gain (150-Ohm Input) |
| Noise Floor | All Outputs: -95 dBu (Master Level at -∞, Channel Levels at -∞) -85 dBu (Master Level at Unity, One Channel Level at Unity) |
| THD+N | Mic Input to Main Output: < 0.01% (+4 dBu) |
| Phantom Power | +48 V, Selectable On/Off (Applied to All Inputs) |
| USB | 1 x USB Type-B (USB 2.0) |
| USB I/O Capacity | 2 x Input / 4 x Output |
| AC Input Power | Universal: 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 45 W |
| Rack Mountable | No |
| Dimensions | 4.3 x 24.1 x 17.1" / 10.9 x 61.2 x 43.4 cm |
| Weight | 19.8 lb / 9 kg |
