Description
Key Features
- 4 Mic/Line Inputs (Comp 1-2)
- 2 Mono/Stereo Line Inputs + 1/8" Input
- 2-In / 4-Out USB (24-Bit, 192 kHz)
- GigFX Effects Engine (24 FX Presets)
- Main XLR & 1/4" + Control Room Output
- 4 Onyx Mic Preamps with 48V Phantom
- 3-Band EQ, FX Send, Pan, Mute, Level
- Footswitch, FX Send, Headphone Output
- Includes Power Supply

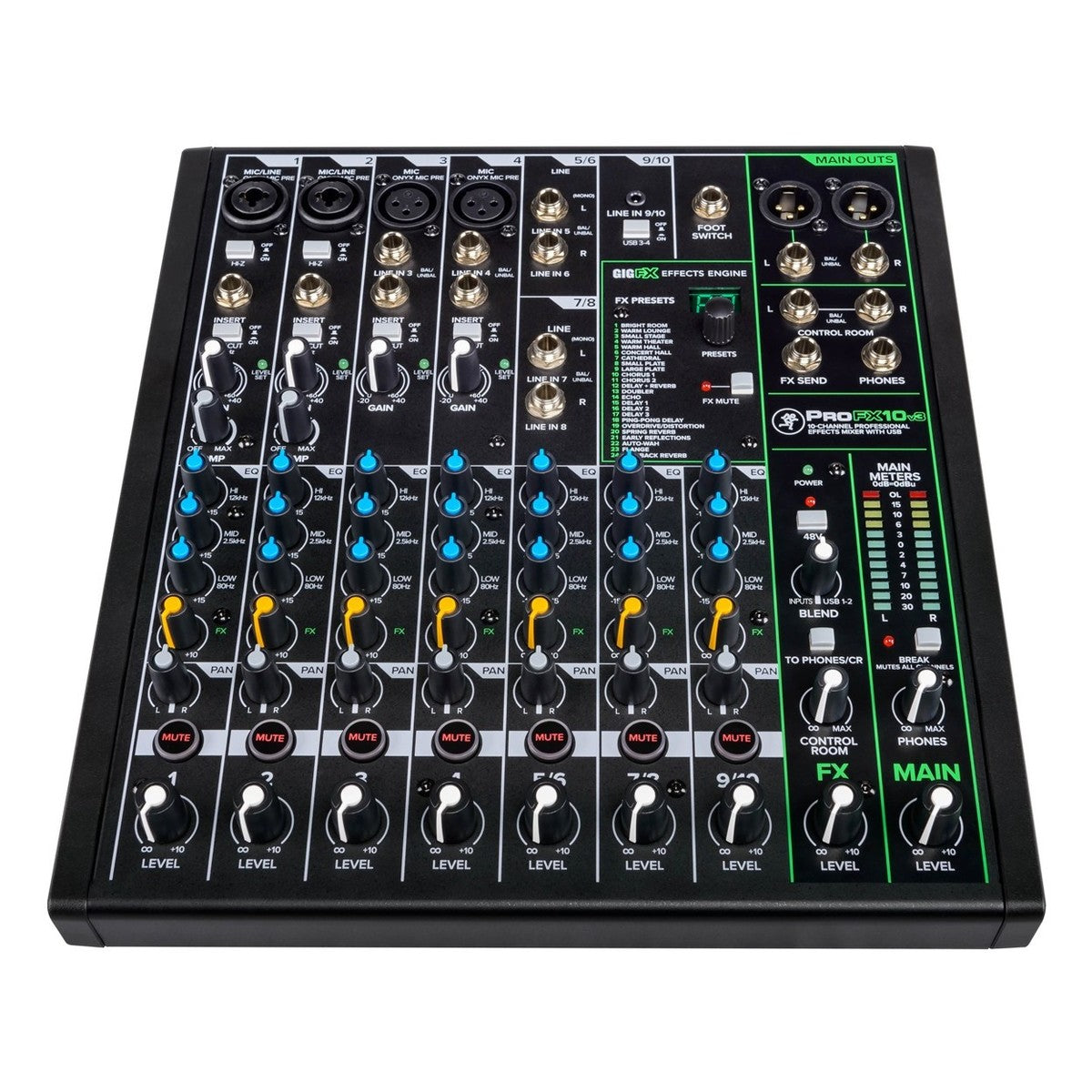

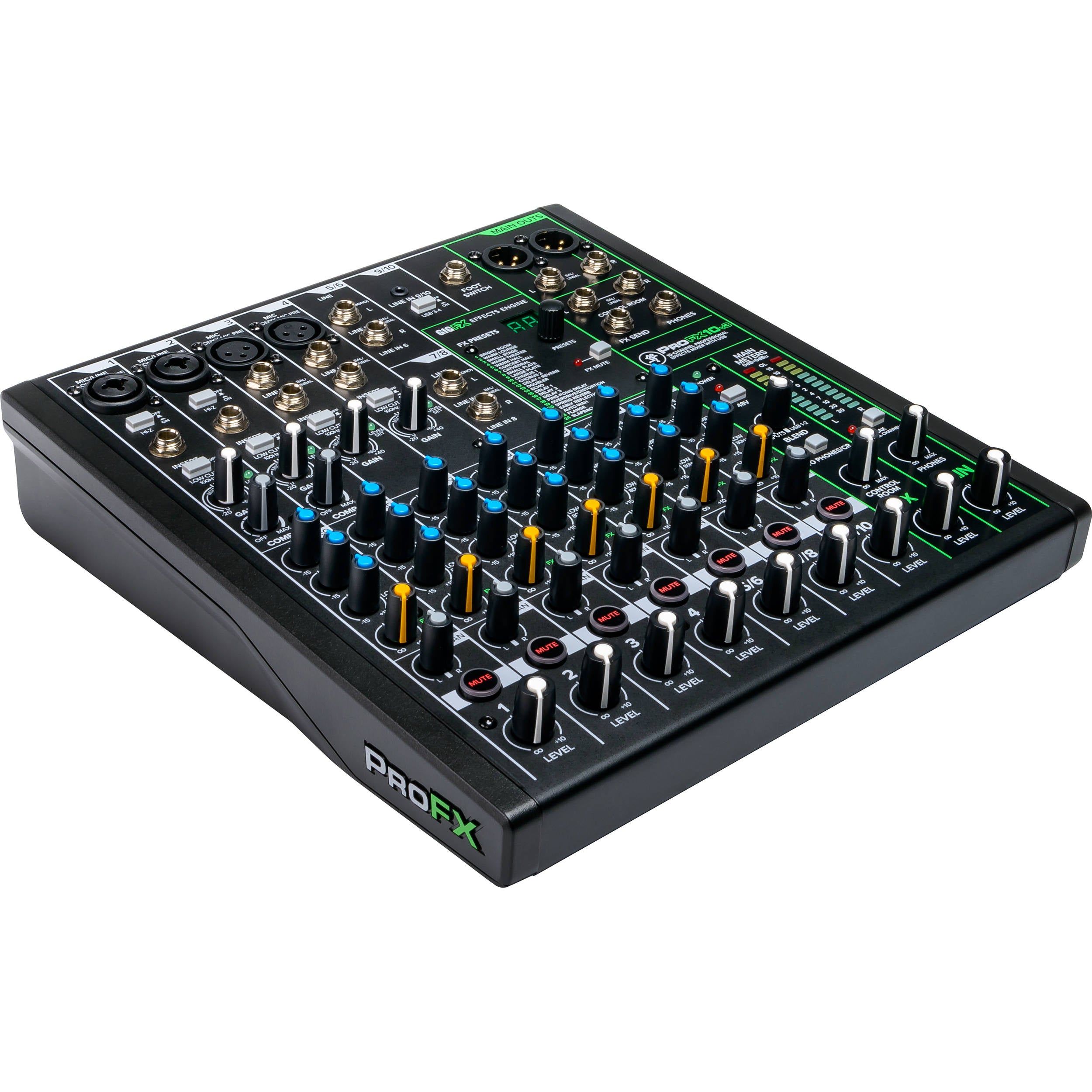

The Mackie ProFX10v3 is a 10-channel mixing console featuring four Onyx microphone preamps with 60 dB of headroom and a built-in effects engine with 24 built-in FX, making it well suited for live sound, home recording, and content creators. The integrated 2x4 USB audio interface offers high-quality 24-bit / 192 kHz recording and playback with zero-latency monitoring.
Channels 1-2 offer combo XLR-1/4" mic/line connections and feature single-knob compression and Hi-Z (for guitar and bass), while channels 3-4 offer XLR or 1/4" inputs. Channels 1-4 include inserts, low-cut filters (100 Hz), and gain controls. Channels 5/6 and 7/8 offer two 1/4" inputs, while channel 9/10 use a 3.5mm stereo input. All channels offer 3-band EQ, dedicated FX send, pan, mute, and level controls. Engaging channel 9/10's USB 3-4 switch will override the 3.5mm input and enable the USB return from a computer. The master output is controlled with a dedicated level knob and features XLR and 1/4" connectors, while the dedicated 1/4" TRS headphone output includes an independent level control. Other features include a pair of control room outputs with level control, an input USB 1/2 blend control, a dedicated FX output, an FX level control, and an FX mute, which can also be controlled via the 1/4" footswitch input.
- Professional Sound Quality
- Equipped with 4 Onyx Mic Pres offering up to 60 dB of gain and ultralow noise performance
- All-new GigFX Effects Engine with 24 different FX options, from reverbs to delays and more
- Essential Mixing Tools
- 3-band EQ on all channels
- Hi-Z switches allows direct connection of guitars, basses, and other instruments
- 100 Hz low-cut filter and 48V phantom power on all mic channels
- Stereo 1/8" input on channel 9/10
- Headphone output with separate level and blend control
- Insert jack on channels 1–4
- Footswitch input for FX Mute
- Single-knob compression helps keep your input levels in check
- 24-Bit / 192 kHz 2x4 USB Recording Interface
- 2x4 USB I/O allows you to create two custom mixes on your computer to send back in to the mixer
- Perfect for live performance recording, music playback, live streaming, and more
- Latency-Free Monitoring
- Easily blend between monitoring your computer’s output and a direct feed from the mixer
- Professional Production Content
- Pro Tools | First and Waveform OEM professional software and plugin packages included
- The DAW Essentials Bundle for Waveform OEM includes 16 powerful plug-ins like Equalizer, Compressor, Reverber8, and Limiter
- Signature Rugged Design
- Mackie built-like-a-tank design
- Solid steel chassis protects your investment
- Tough ABS side protection
Specs
| Number of Analog Input Channels | 10 |
| Number of Mic Preamps | 4 |
| Analog Output Channels | 2 x Stereo Master Output 1 x Stereo Control Room/Monitor Output 1 x Mono FX Send Output 1 x Stereo Headphone Output |
| Meters | Main Meter: 2 x 12-Segment LED |
| Meter Range | Main Meter: -30 dB to +15 dB Plus Peak/Clip |
| EQ Parameters | Low: ±15 dB at 80 Hz Mid: ±15 dB at 2.5 kHz High: ±15 dB at 12 kHz |
| Filters | High-Pass: 100 Hz, 18 dB/Octave |
| Built-In Effects | 24 x Preset (Factory) |
| Bit Depth | 24-Bit |
| Frequency Response | Mic Input to Output: 20 Hz to 30 kHz +0/-1 dB (Unity Gain) |
| Max Input Level | +22 dB |
| Output Level | Main Output: +28 dBu at Max Gain All Other Output: +22 dBu at Max Gain |
| I/O Impedance | Mic Input: 3.3 Kilohms Insert Return: 10 Kilohms Line Input: ≥ 20 Kilohms Headphone Output: 25 Ohms Main Output: 120 Ohms (Unbalanced) 240 Ohms (Balanced) |
| Crosstalk | Adjacent Inputs: -90 dB at 1 kHz Input to Output: -80 dB at 1 kHz Fader Off: -75 dB at 1 kHz Muted: -90 dB at 1 kHz |
| CMRR | 70 dB at Max Gain (1 kHz, Mic In to Main Out) |
| EIN | -126 dBu at Max Gain (150-Ohm Input) |
| Noise Floor | All Outputs: -95 dBu (Master Level at -∞, Channel Levels at -∞) -80 dBu (Master Level at Unity, One Channel Level at Unity) |
| THD+N | Mic Input to Main Output: < 0.03% (+4 dBu) |
| Phantom Power | +48 V, Selectable On/Off (Applied to All Inputs) |
| USB | 1 x USB Type-B (USB 2.0) |
| USB I/O Capacity | 2 x Input / 4 x Output |
| AC Input Power | Universal: 100 to 240 VAC, 50 / 60 Hz |
| Power Supply Output | 12 VDC at 2 A |
| Rack Mountable | No |
| Dimensions | 3.2 x 10.7 x 11.9" / 8.1 x 27.1 x 30.2 cm |
| Weight | 4.9 lb / 2.2 kg |
| Package Weight | 6.75 lb |
| Box Dimensions (LxWxH) | 15.11 x 13.8 x 9.6" |
