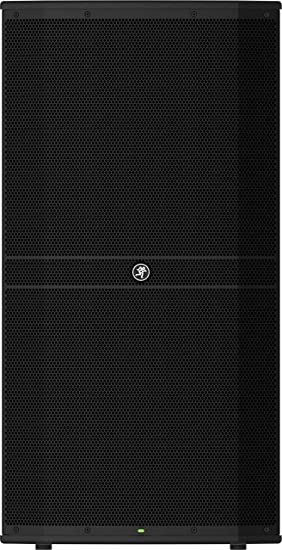

MACKIE DRM315-P - 15" 2000W 3-WAY PROFESSIONAL PASSIVE LOUDSPEAKER

The Mackie DRM315-P passive 3-way speaker is a professional solution for bands and venues who want powerful, accurate sound, and a road-ready design.

High-performance professional loudspeaker designed for high-demand applications

• Custom designed transducers
• 1.4” Titanium diaphragm compression driver offer maximum transparency and clarity
• 6.5” Midrange transducer provides incredible midrange clarity for punchy vocal and instrument reproduction
• 15” High-excursion woofer offers minimal distortion with increased bass response and reliability to withstand the most demanding live applications
• Rotatable waveguide assembly allows for horizontal orientation while maintaining maximum coverage
• Precision internal 3-way crossover
• Premium grade components and precise tuning provide maximum clarity and performance
• Parallel SpeakON inputs
• Road-worthy 15mm plywood construction and internal bracing offers optimal acoustic performance
• Touring-grade textured cabinet coating
• Powder-coated heavy gauge steel grille
• Pole-mountable
• Flyable – 12xM10 flypoints for vertical and horizontal orientation
• Optional SP260 Loudspeaker Processor provides custom EQ curves and crossovers for your DRM Passive System
• Power handling (continuous/program/peak): 500W / 1000W / 2000W
• 67.5 lb / 30.6 kg

Tech Specs

• Powered:No
• Power Configuration:Single Amp
• LF Driver Size:1 x 15" High-excursion woofer
• HF Driver Size:1.4" Titanium diaphragm
• Impedance:4 ohms
• Power Rating:500W (continuous), 1000W (program)
• Total Power:2500W (peak)
• Inputs:1 x SpeakCON
• Outputs:1 x SpeakCON
• Frequency Range:45Hz-20kHz (-10 dB)
• Frequency Response:65Hz-18kHz (±3 dB)
• Horizontal Coverage Angle:90 Degrees
• Vertical Coverage Angle:60 Degrees
• Maximum Peak SPL:130dB
• Enclosure Material:15mm Plywood construction
• Mounting Options:Pole-mount, 12 x M10 flypoints
• Height:36.5"
• Width:18.8"
• Depth:19"
• Weight:80.5 lbs.
