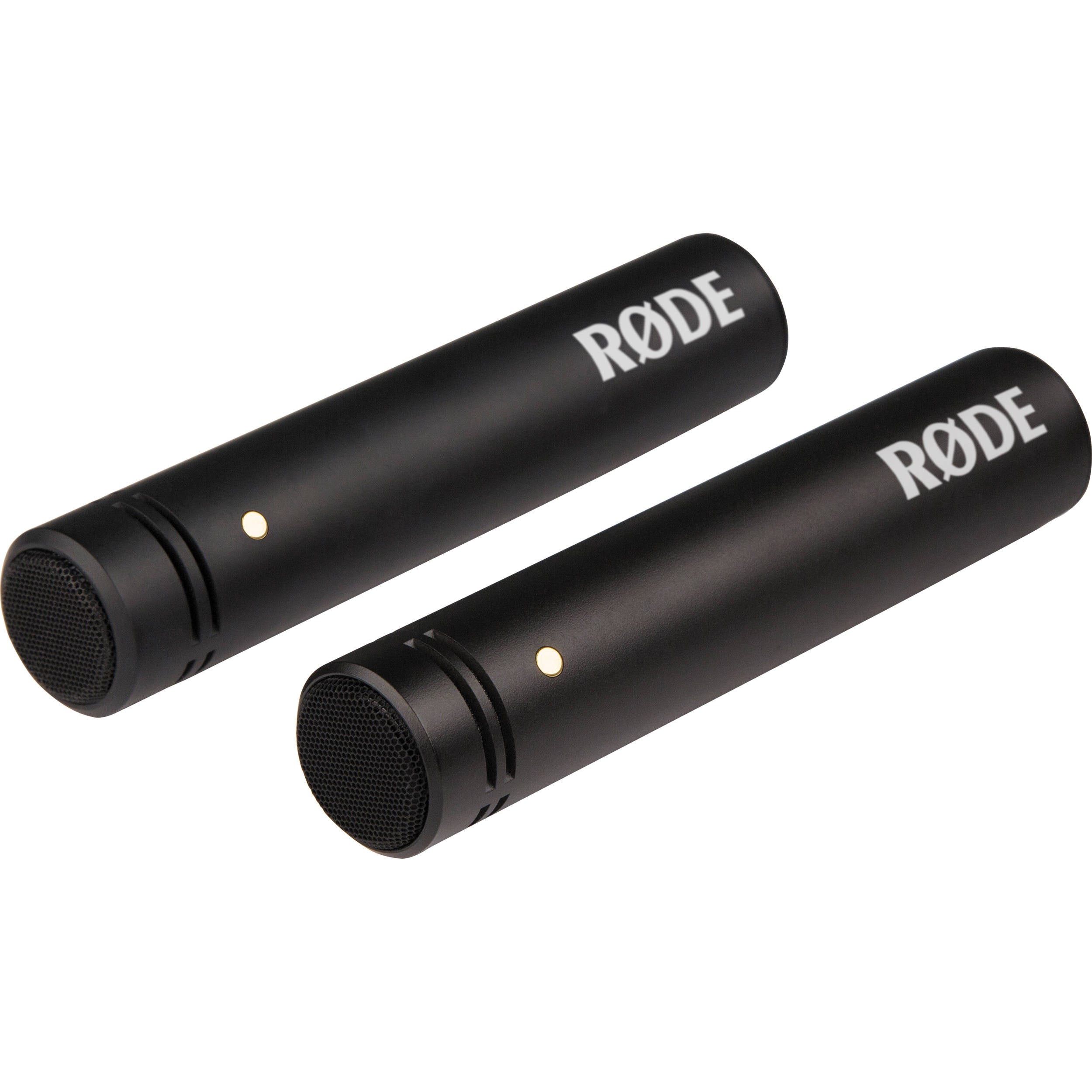

Designed and made in Australia, the M5 is a compact ½” cardioid condenser microphone with low noise and a full frequency response. A result of many years’ experience building the award-winning NT5 microphone, RØDE has succeeded in making a high-quality ‘pencil’ style permanently polarized condenser that will impress even the most demanding of artists and engineers. Ideal for studio recording and live on stage, the M5 is equally at home on a range of acoustic instruments, choirs, or anywhere you would employ a small diaphragm condenser microphone, either individually or as a stereo array. This matched pair has been carefully selected to ensure a variation of no more than 1dB sensitivity between the microphones. A premium foiled certificate is supplied to verify the authenticity of the pair. The M5 is finished with RØDE’s proprietary ceramic coating which offers a sleek matt black finish, and is supplied with WS5 windshields and RM5 stand mounts.
1⁄2” capsule with gold-plated membrane
Cardioid polar pattern
All metal body
Ultra-low noise
State-of-the-art surface mount electronics
Includes microphone clips and windshields
10 year extended warranty
M5 SPECIFICATIONS
ACOUSTIC & ELECTRICAL SPECIFICATIONS
Acoustic Principle
Pressure Gradient
Active Electronics
JFET impedance converter with bipolar output buffer
Polar Pattern
Frequency Range
20Hz ~ 20kHz
Output Impedance
200Ω
Equivalent Noise
19 dBA SPL (as per IEC651)
Maximum Output Level
+13.5 dBu
Sensitivity
-34 dB re 1V/Pa (20mV @ 94 dB SPL) ± 2dB @ 1kHz
Dynamic Range
121 dB SPL
Maximum SPL
140 dB SPL
Signal to noise Ratio
75 dBA SPL (as per IEC651)
Power Requirements
24V phantom power
48V phantom power
Output Connection
3 Pin XLR
Balanced output between pin 2 (+), pin 3 (-) and pin 1 (ground)
MECHANICAL SPECIFICATIONS
Weight (g)
80.00g
Dimensions
100.00mmH x 20.00mmW x 20.00mmD
