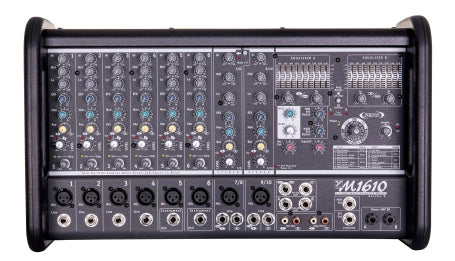

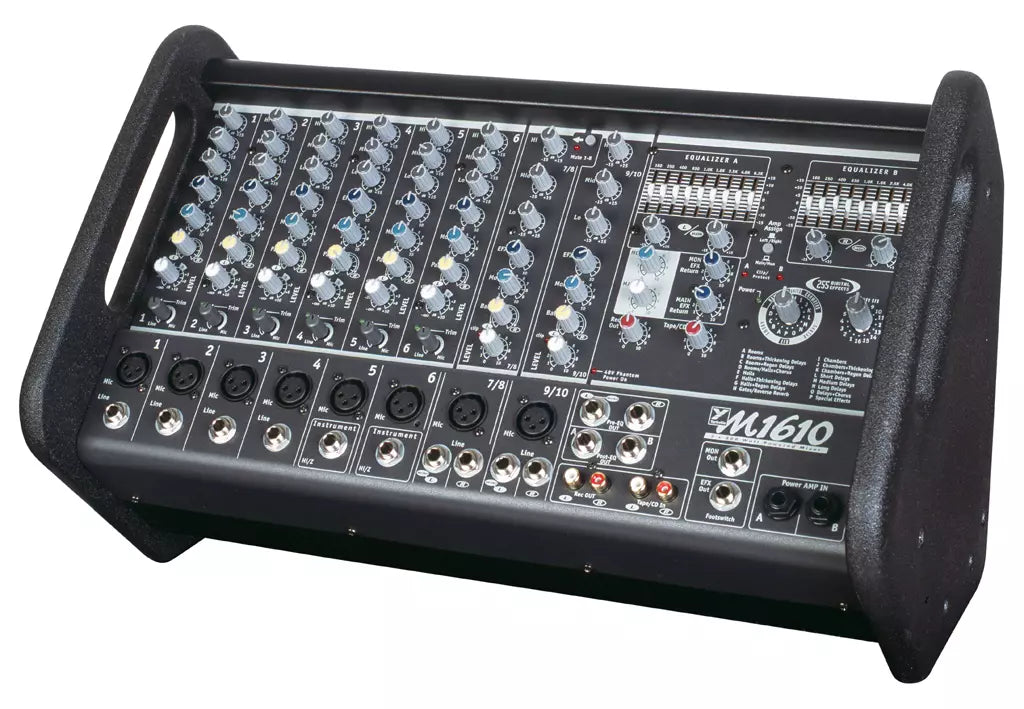

The M1610-2 is a powered mixer with onboard effects, designed to pair with passive loudspeakers for live sound, installations, and presentations.
It offers extended connectivity with eight XLR mic inputs, six mono 1/4" inputs, and two stereo 1/4" inputs. Channels 5 and 6 can also accept Hi-Z instrument level signals like a guitar or bass without requiring a DI box.
The master section features a 24-bit DSP engine with sixteen effects including reverb, delay, modulation, and more. Independent equalizer sections for each output channel combine shelving filters with a 9-band graphic EQ to quickly dial in bass and treble for the room while maintaining precise midrange control.
Its dual 800-watt amplifiers can be configured to drive stereo mains or both main and monitor speakers in mono, and deliver ample power for a medium auditorium, club, or house of worship.
Features
- 2x 800 W (4Ω)
- 6 Mono Channels, 2 Stereo Channels
- Hi-Z Instrument Inputs on Channels 5 / 6
- Onboard Digital Effects with 16 Algorithms
- 9-Band Graphic EQ and 2 Shelving Filters per Output Channel
- Stereo Power Amp Inputs, Pre / Post EQ Outputs, and RCA In / Out

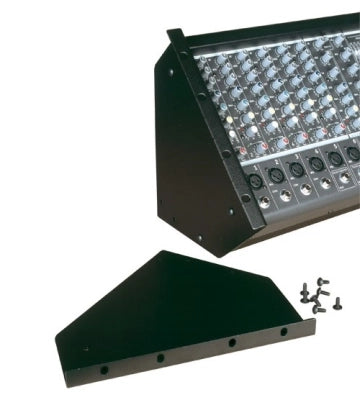

- Optional RK1610 Rackmount Kit (6U)
- Made in Canada
Specifications
| Number of Channels |
10 |
| Channel EQ |
3-Band |
| Channel Overload Protection |
Ch. 1 - 6 |
| Inputs |
8x XLR
10x 1/4" TRS Channel Inputs
2x 1/4" Power Amp Inputs
1x Stereo RCA |
| Channel Features |
All: EFX Send, Monitor Send
Pan / Balance
Clip LED Ch 1 - 6: Trim Level Set LED |
| Phantom Power |
Global 48 V with LED Indicator |
| Internal Effects |
16 Algorithms, 24-Bit Stereo with Parameter Control |
| Auxiliary Sends |
EFX (to Internal Effects and 1/4" EFX Send) |
| Outputs |
2x 1/4"
2x speakON® per Output Channel
2x 1/4" Pre EQ and Post EQ
1x 1/4" Mon Out and EFX Out
1x Stereo RCA |
| Master EQ -1 (type/Channels/Range -dB) |
9-Band Graphic EQ and 2 Shelving Filters per Output Channel |
| Mixer - Frequency Response |
20 Hz - 20 kHz |
| Mixer THD (Main out w/ -10dB input) |
0.0001 |
| Power Output |
800 W per Amplifier @ 4Ω
600 W per Amplifier @ 8Ω / 2Ω |
| THD (1kHz) |
0.001 |
| THD (20Hz-20kHz) |
0.005 |
| CMRR AT 60Hz (min/typ) |
-37db / -60db |
| Power Consumption (typ/max) |
6.4A @ 60hz / 3.3A @ 50Hz |
| Protection |
Thermal, Short Circuit, Current, Clip |
| Cooling |
2 x 80mm Fans |
| Transformer Type |
Toroidial |
| Finish |
Grey and Black Powder Coat |
| Chassis Construction |
Steel and Aluminum |
| Rackmount |
RK1610 6U Rackmount Kit (Sold Separately) |
| Other Features |
Hi-Z Inputs (Ch 5 / 6), Ch 1 - 8 Mute Switch
EFX Footswitch Jack
Tiltback or Upright Wedge Angles |
| Dimensions (DWH inches) |
11" x 18.6" x 11" (28 cm x 47 cm x 28 cm) |
| Weight (lbs/kg) |
31.3 lbs / 14.2 kg |
Specifications subject to change without notice
