The KS112 is an ultra-compact powered subwoofer for installation and highly portable entertainment applications. The KS112 is a highly portable, single 12-inch bandpass design subwoofer, powered by a 2000 watt peak power class D amplifier module. The cabinet is constructed of premium birch and includes high-quality, low noise casters

Two M20 threaded pole receptacles are available for a positive, wobble-free connection to a threaded speaker pole in either vertical or horizontal deployment (pole not included).

Features

• High Output in an ultra-compact form factor
• 2000 Watt Class D amplifier module
• 12-inch, long-excursion driver; 6th order bandpass design

Intrinsic Correction^™tuning and loudspeaker management

Refined, professional appearance looks great in any application

Rugged painted wood enclosure for long life and lasting durability

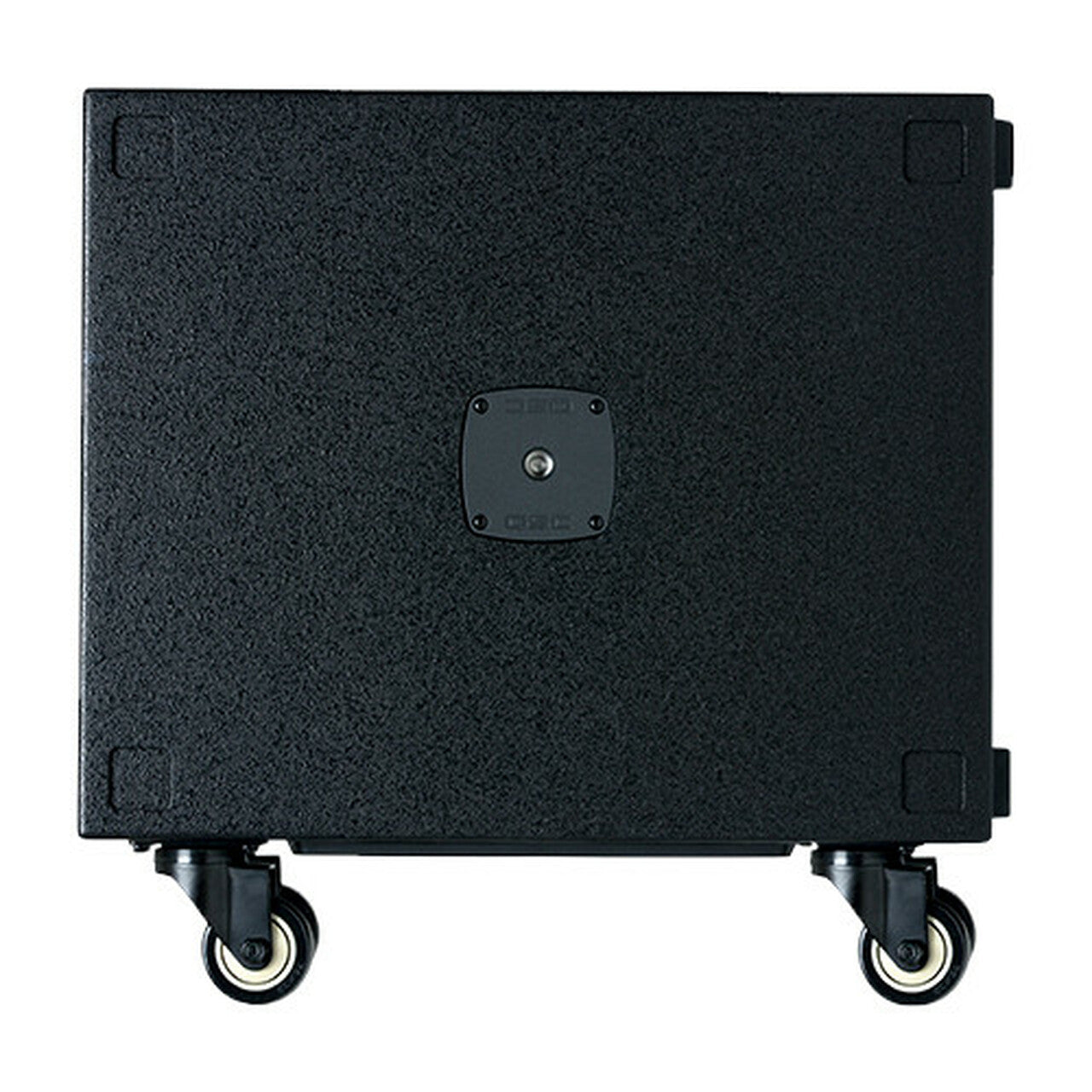

Deployment in either vertical or horizontal positions with dual M20 speaker pole fittings

Optional KS-LOC security cover prevents unauthorized tampering of controls

Complete EASE & CAD information available online

6-Year Warranty*

SPECIFICATIONS	KS112
Configuration	6th-Order Bandpass Subwoofer
LF Transducer	12-inch (305 mm), Cone
Frequency Response (-6 dB)	41 Hz - 108 Hz
Frequency Range (-10 dB)	38 Hz - 121 Hz
Maximum Rated SPL1	128 dB @ 1 m (peak)
Amplifier	Class D 2000W (peak)
Cooling	Low-noise, variable speed fan
Controls	Power On/Off Gain Control Rotary encoder 2 x selection buttons
Indicators	2 x Power LED (front and rear) Input Signal LED Limiter Active LED
Connectors	2 x locking XLR/F 1/4&quot, combo 2 x XLR/M (Loop-thru Output) 1 x locking IEC power connector
AC Power Input	Universal power supply 100 - 240 VAC, 50 - 60 Hz
AC Power Consumption	100 VAC, 2.4 A / 120 VAC, 2.0 A / 240 VAC, 1.3 A
Enclosure Details
Enclosure	15 mm Birch Plywood
Color	Black (RAL 9011)
Grille	Internal woofer cover
Dimensions (HWD) inches	24.5 x 15.5 x 24.25
Dimensions (HWD) mm	622 x 394 x 616
Net Weight	28.4 kg (62.6 lbs)
Shipping Weight	34.5 kg (76 lbs)
Regulatory	CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
Included Accessories	4 x Low-Noise, Heavy Duty Casters
Optional Accessories	KS112 CVR Transport Cover, KS-LOC Lock-Out Cover SP-16X Extension Pole, SP-36 Extension Pole

1Peak SPL is measured on-axis at 1m, pink noise crest factor 10dB, unweighted Continuous SPL is based on theoretical calculations based upon transducer sensitivity and peak available power (for comparison purpose and in accordance with common industry practice.

All specifications are subject to change without notice.
