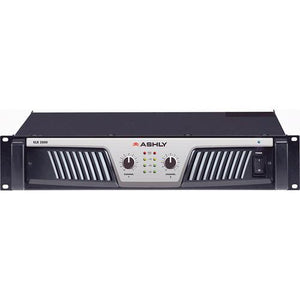

The KLR-5000 Two-Channel High Performance Amplifier from Ashly delivers a minimum power of 2500W per channel into 2 Ohm loads, 1700W RMS per channel into 4 Ohm loads, or 1000W RMS per channel into 8 Ohm loads with both channels operating. The KLR-5000 is optimized to deliver high levels of sustained power, extraordinary audio performance, and road-proven reliability into 2, 4, or 8 ohm loads and are housed in a uniform, rugged, 2RU chassis.
The output topography of the KLR-5000 is a two step class-H design. The protection circuits include output over current protection, DC output protection, chassis internal temperature monitoring, inrush limiting and a main circuit breaker.
The KLR-5000 incorporates the latest technologies delivering quality and value for professional performance at an extremely affordable price. Whether your application is professional audio or fixed performance installation, the KLR-5000 amplifier is optimized to provide reliable audio performance with sonic perfection.
Power Rating | 8Ω, 20Hz-20kHz, 1% THD: 1000W 4Ω, 20Hz-20kHz, 1% THD: 1700W 2Ω, 20Hz-20kHz, 1% THD: 2500W Bridged mono mode: 4Ω, 20Hz-20kHz, 1% THD: 5000W |
Current Draw | All channels driven @ 4Ω Idle: 1.14A 1/8th power pink noise: 17.5A 1/3 power sine wave: 24.7A S/N (20Hz-20kHz, unweighted): >110dB |
Circuit | 2 step class H |
Online Thermal Dissipation | All channels driven @ 4Ω Idle (BTU/ hr): 215 1/8th power pink noise (BTU/ hr): 3111 1/3 power sine wave (BTU/ hr): 4395 Input gain switch: 1.4V, 26dB, 32dB |
Frequency Response | 1W @ 8Ω 20Hz-20kHz (-3dB down point): +0.3dB 5Hz-70kHz |
Signal-to-Noise Ratio | S/N (20Hz-20kHz, unweighted) |
Damping Factor | 100Hz @ rated power @8Ω: >380 |
Total Harmonic Distortion (THD) | 20Hz-20kHz: 10dB below rated output @ 4Ω |
Impedance | 12 kΩ, balanced |
HPF | 30Hz, 50Hz, off (12dB/ Oct) |
Protection | Output over current, DC output, chassis temperature, mains breaker (KLR-5000 uses internal mains fuse) |
Cooling | Variable speed fan, front-to-rear air flow |
Front Panel | Protection/ clip, signal, power |
Attenuation | Per channel, front panel |
Input Connections | 3-pin Euroblock, XLR, ¼" TRS phone jack |
Output Connectors | Each channel four pin Speakon type |
Power Requirements | 3-prong NEMA 5-20 |
Temperature | 14-104°F (-10-40°C) |
Humidity | 0-90% |
Compliance | cCSAus, FCC, CE, RoHS |
Dimensions | 19 x 3.5 x 16" (482 x 88 x 407mm) |
Weight | 28.2 lb. (12.8kg) |
