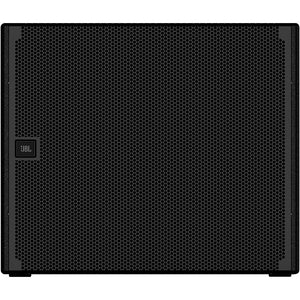

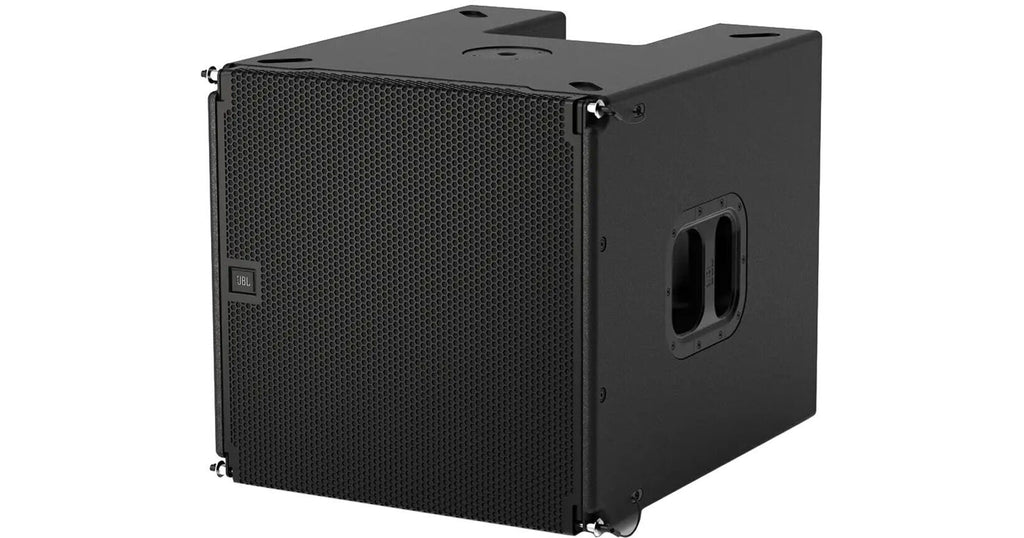

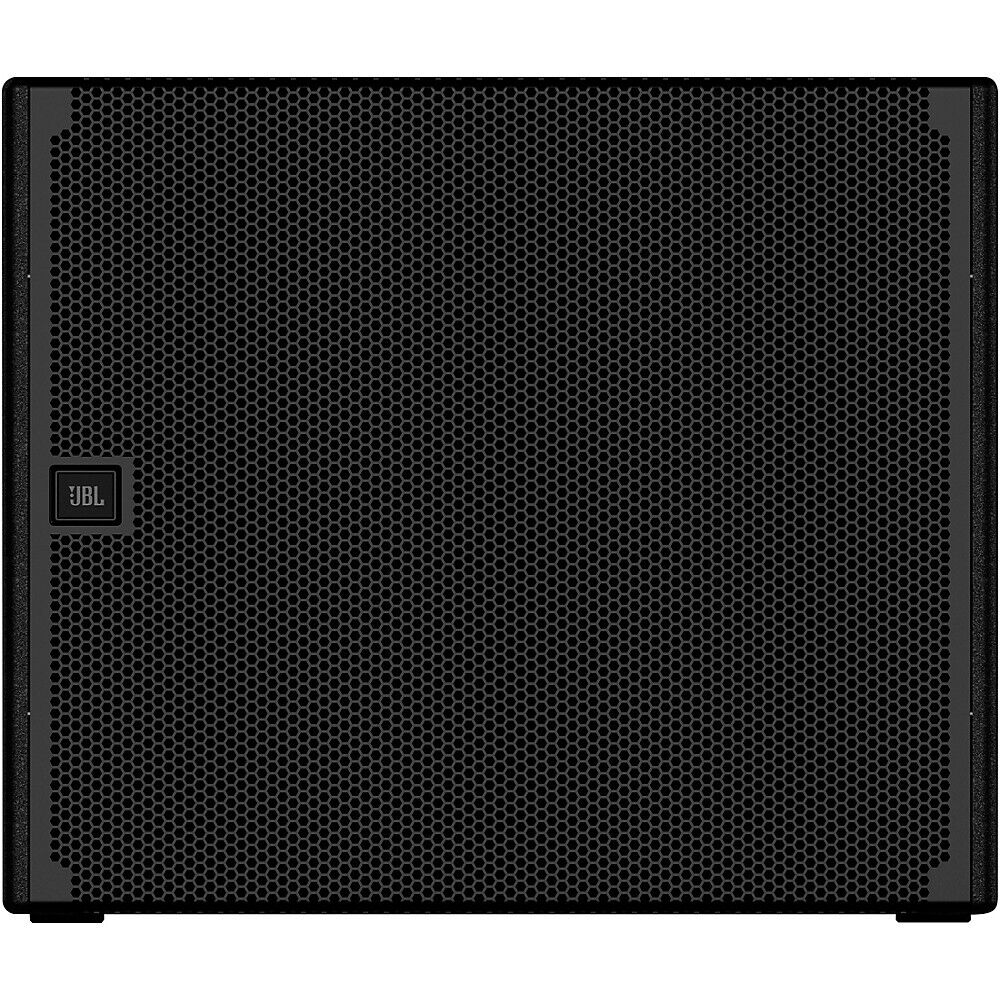

The SRX915SF is a powered, flyable, single 15-inch subwoofer designed to be deployed in suspended or ground-stacked configurations to complement SRX900 Series full-range systems. The integrated three-point rigging system in the SRX915SF allows units to be suspended in standalone arrays or in combination with SRX906LA cabinets in mixed-array configurations. The subwoofer houses a JBL 2276H 15-inch woofer featuring Differential Drive® – JBL’s dual voice coil, dual gap technology – to deliver better heat dissipation, lower power compression, and wider dynamic range than conventional single-coil designs. Built-in DSP and amplification offer a plug-and-play experience while providing consistency and optimum performance anywhere in the world. The SRX915SF incorporates a large low-frequency port design that improves airflow and reduces audible turbulence, even at high output levels. A reinforced 18 mm birch plywood cabinet ensures enhanced strength and durability. A full-featured software package gives users complete control of the system on various platforms, including Windows, macOS, and iPad OS. Learn more about JBL Performance here. Features High-performance, high-density system solution in a truck-pack friendly format High-power-handling transducers deliver low distortion and class-leading output Built-in, passively-cooled Class D amplification with a universal power supply Dual Ethernet ports with Neutrik etherCON connectors Complete control and configuration with JBL Performance software over HARMAN's HControl protocol User-controllable DSP LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers Rear-panel LCD provides access to control features Reinforced birch plywood enclosures M20 threaded mount for pole mounting or ground stacking full range components Integrated three-point rigging system
Specifications
Frequency Range (-10dB)
36 Hz-100 Hz (Preset: 80 Hz)
Coverage Pattern
Omnidirectional or Cardioid
Maximum SPL
130 dB
System Type
Active Subwoofer
Amplifier Design
Class-D
Continuous Power Rating
1,100 Watts
LF Driver
(1) JBL 2276H, 15 in diameter, 8 ohms, dual 3.0 in diameter voice coil, ferrite Differential Drive®
Enclosure
Exterior grade birch plywood, Black DuraFlexTM finish
Dimensions (H x W x D)
493 mm x 507 mm x 610 mm (19.4 in x 20.0 in x 24.0 in)
Net Weight (each)
39 kg (86 lbs)
