The SRX900 Series embodies the advanced performance principles that drive JBL's development of audio products that make a real difference in the world of professional audio. This next-generation family of powered line arrays and subwoofers addresses the growing need for scalable small and medium-format professional sound-reinforcement solutions for rental companies, fixed installations and musicians seeking the ultimate combination of performance and portability.

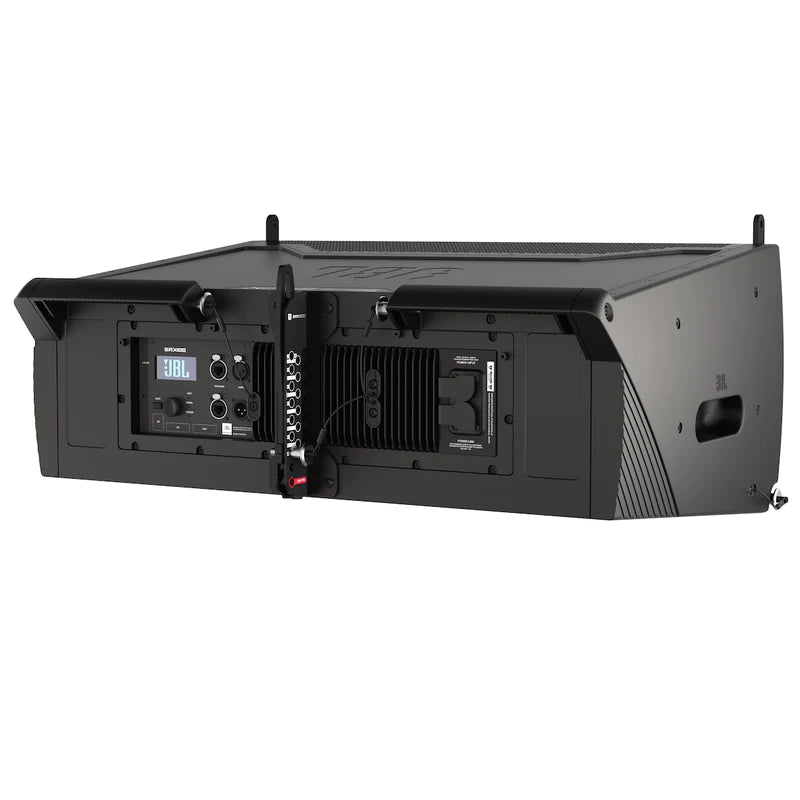

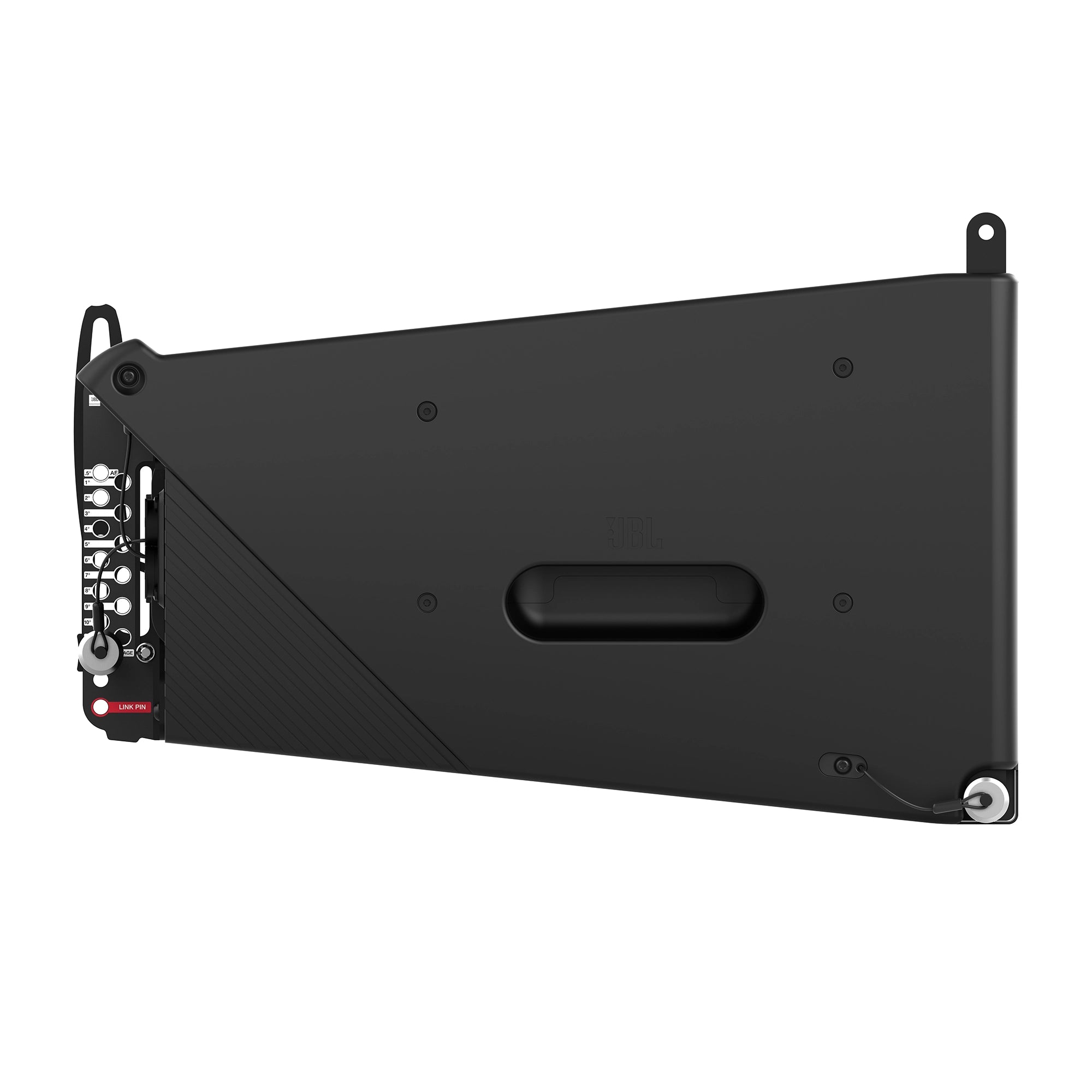

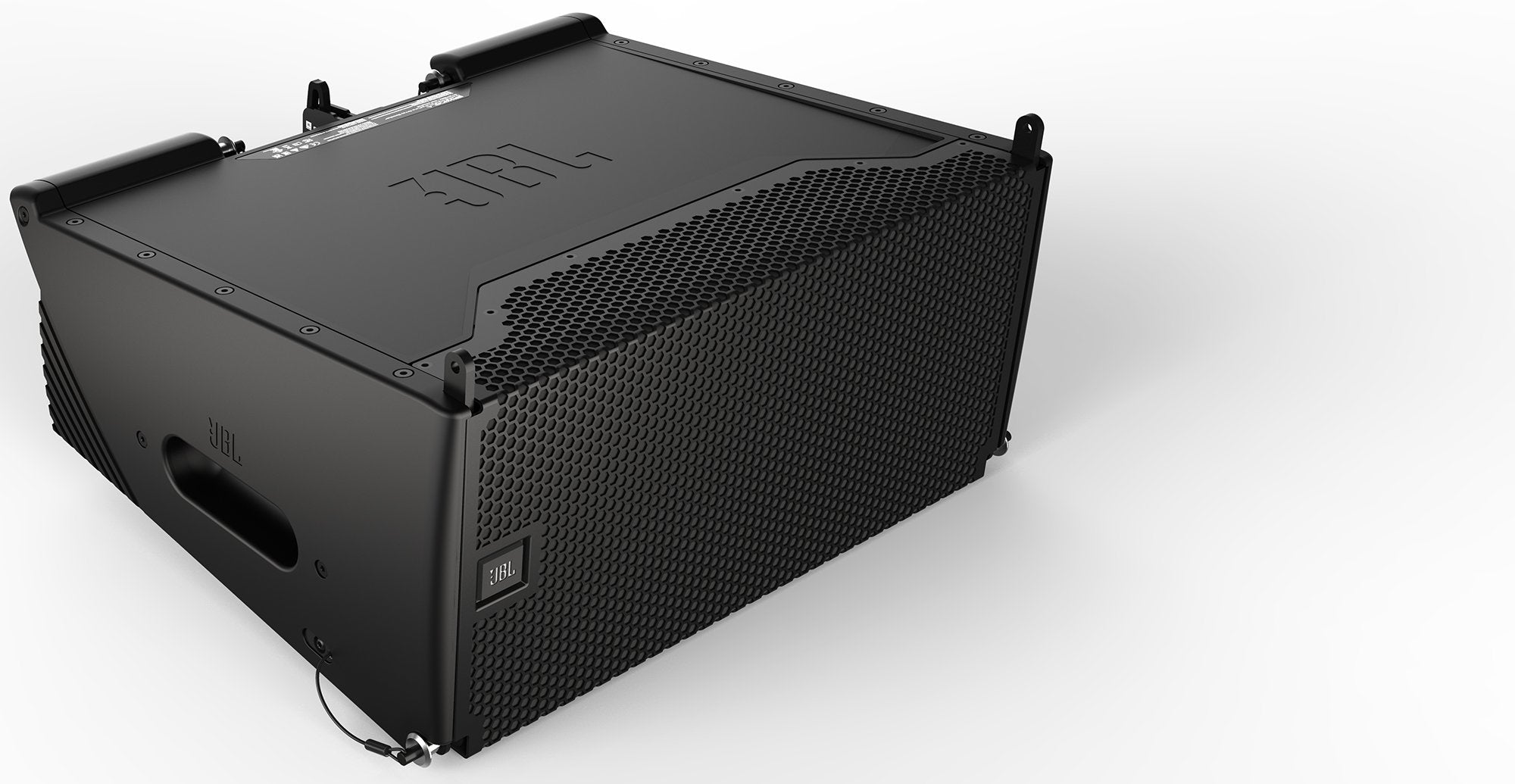

The SRX910LA is a two-way active line array element that can cover a variety of mid to large-sized applications, including rental houses, touring artists, DJs, and installations. Built-in DSP and amplification offer a plug and play experience while providing consistency and optimum performance anywhere in the world.
JBL transducers and a new acoustic design provide excellent sound fidelity and best-in-class maximum SPL. The product features dual 10-inch neodymium Differential Drive® woofers and a three-inch compression driver. The computer-optimized enclosure is made out of composite material and offers excellent performance while remaining compact and lightweight.
An innovative three-point rigging system and a full set of accessories allow systems to scale and solve the diverse needs of production companies and installation houses.JBL PERFORMANCE is a new, full-featured software package that gives users control of the system on various platforms, including Windows, macOS, and iPad OS.
Features
- High-performance, high-density system solution in a truck-pack friendly format
- High-power-handling transducers deliver low distortion, high fidelity, and class-leading output
- Built-in, passively cooled Class D amplification with a universal power supply
- Dual Ethernet ports with Neutrik etherCON connectors
- Supports HARMAN HControl Ethernet
- User-controllable DSP
- LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers
- Rear-panel LCD provides complete access to control features
- Reinforced composite loudspeaker enclosures
- Innovative three-point rigging system
Specifications
| Frequency Range (-10dB) | 53 Hz-19 kHz (array preset) |
| Coverage Pattern | 105 degrees nominal (400 Hz-16 kHz) |
| Maximum SPL | 135 dB |
| System Type | Line Array, two-way active |
| Amplifier Design | Class-D |
| Continuous Power Rating | 600 Watts | LF: 400 Watts | HF: 200 Watts |
| LF Driver | (2) JBL 261G-1, 10 in diameter, dual 2.0 in diameter voice coil, neodymium Differential Drive® |
| HF Driver | (1) JBL 2432H-3, 1.5 in exit neodymium compression driver with 3 in voice coil |
| Enclosure | Polypropylene, aluminum baffle, plywood internal bracing, four integral recessed handholds |
| Inter-Enclosure Angles | 0.5, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 |
| Dimensions (H x W x D) | 305 mm x 716 mm x 519 mm (12.0 in x 28.2 in x 20.5 in) |
| Net Weight (each) | 26.7 kg (59 lbs) |
Accessories (NOT INCLUDED)
Highlights:
- Compact and lightweight design
- Precision pick-point resolution
- Two-part collapsible design
- Support for third-party laser inclinometers
- Maximum Limit: (16) SRX910LA
- Compatible shackle size: 1/2 in
Included:
- (1) Spreader Bar
- (1) Extension Bar
- (1) 1/2-inch Shackle
- (1) Laser Bracket and Hardware
Highlights:
- Enables ground stacking SRX910LA arrays
- Allows attaching arrays to subwoofers
- Universal M20 threaded pole mount
- Angle range: -15 degrees to +5 degrees
- Support for up to (4) SRX910LA
Included:
- (1) Base Plate
- (1) M20 Thumb Screw
Highlights:
- Versatile pull-back accessory
- Compatible with SRX906LA and SRX910LA
- Support for up to 16 cabinets
- Lightweight design
- Shackle Size: 1/2 in
Included:
- (1) Pull-Back Adapter
- (1) 1/2-inch Black Shackle
Highlights:
- Vertical transport cart for (4) SRX910LA
- Truck-friendly dimensions
- Includes a hard top (VT TOP)
- Built-in stacking features for easy storage
- Lightweight design
- Heavy-duty casters
Included:
- (1) SRX910LA VT BOTTOM
- (1) SRX910LA VT TOP
Highlights:
- Heavy-duty soft cover for SRX910LA enclosures
- Covers four SRX910LA on a Vertical Transporter
- Includes input panel flaps for testing purposes
- Handle cutouts for easy transportation
- Heavy-duty industrial-grade zippers
Included:
- (1) Cover
Highlights:
- Universal rain cover for SRX900 products
- Supports: SRX906LA, SRX910LA, SRX918S, SRX928S
- Flexible material for conforming to cables
- Covers LCD, audio, and data connections
- Unfolds for easy cable and LCD access
- Designed to remain attached
Included:
- (1) Rain Cover
- (5) T15 M3.5 Screws
