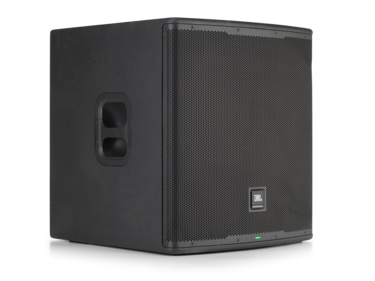

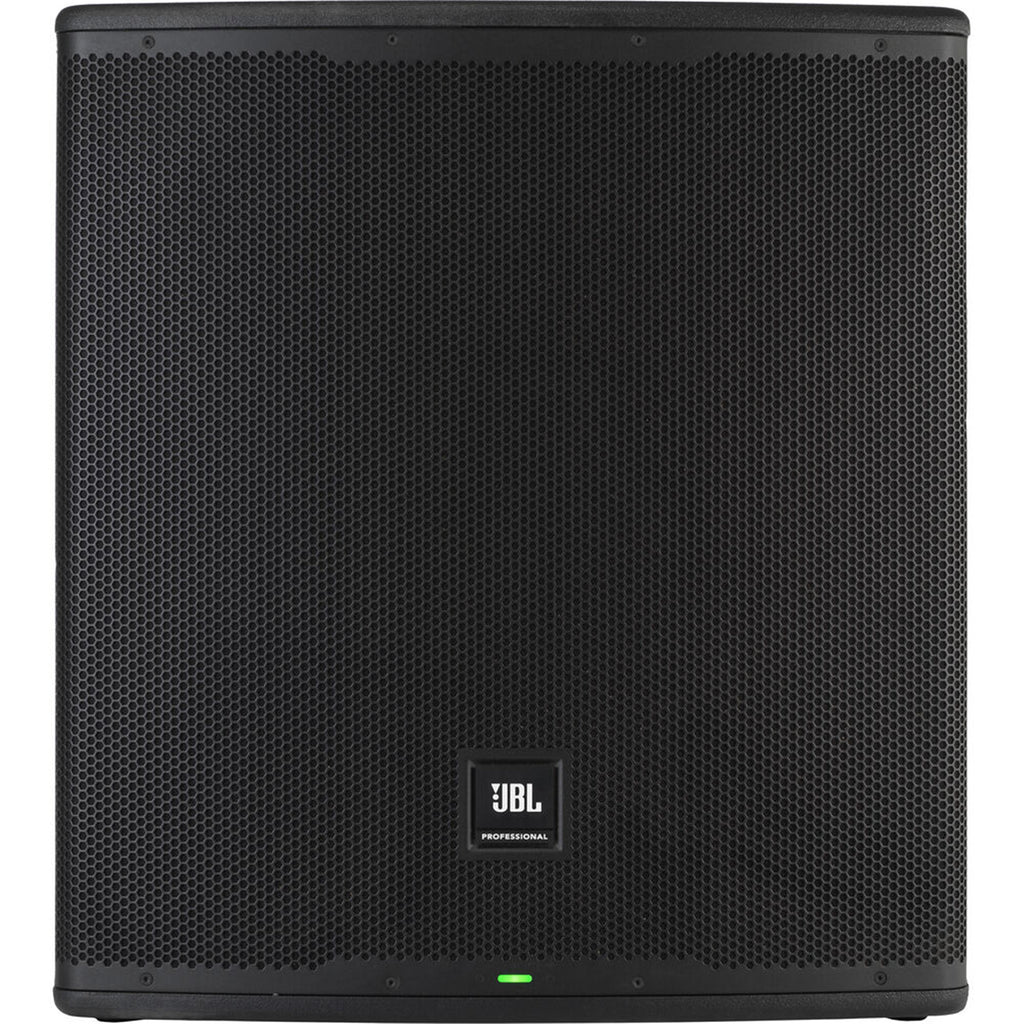

JBL EON718S - 18-inch Powered PA Subwoofer

The EON718S produces smooth, natural bass down to 31 Hz, thanks to a newly engineered acoustic package with a completely redesigned woofer and 1,500 watts of ultra-efficient amplification.

Advanced DSP and Control

The EON718S’s advanced DSP package includes built-in parametric EQ, polarity inversion and speaker delay. Access settings on-speaker using an integrated backlit LCD screen, or from anywhere in the venue using the JBL Pro Connect App. The EON700 Series’ built-in Bluetooth 5.0 audio streaming (full-range speakers) and control take advantage of the newest protocol’s security features, low latency, broad range and improved audio fidelity.

System Versatility

The EON718S subwoofer features a threaded pole mount for full-range speakers and can be easily stacked for cardioid configurations. Full-range models can be used as main PA speakers or floor monitors. Indexed feet molded into enclosures enable a range of acoustic configurations and secure stacking for traditional stand-up configurations and convenient storage and transport.

Rugged and Reliable

All audio products have useful lives, and JBL engineers are committed to making that lifespan as long as possible—not only in terms of reliability, but in terms of how good the system sounds every time it’s turned on.

EON700 Series full-range speakers feature FEA optimized composite enclosures, taking advantage of injection-molding and mechanical-shaping techniques for added durability without sacrificing cabinet size or performance. The EON718S subwoofer is housed in a rugged 15-ply birch enclosure; computer-optimized ergonomic handles make moving these speakers and subwoofers a breeze.

Like every JBL Professional product, the 718S undergoes stringent testing that goes above and beyond any conditions the product would face in the real world. Our industry-leading 100-hour power test ensures longevity so musicians and audio engineers can rely on JBL components in any scenario.

Specifications
System Type    18IN Powered Subwoofer
Woofer Model    718G
Woofer Size    18"
Woofer Magnet    Ferrite
Woofer Voice Coil    3"
Transducer Impedence    4 ohm rated
Max SPL    131dB @1m/2Pi
Freq Range -10    31Hz - 150Hz
Freq Range -3    40Hz -120Hz
Hor Dispersion    Omni
Vert Dispersion    Omni
Crossover Frequency    80, 100, 120Hz selectable
Power Rating    1500W Peak Power
1500W Peak / 750W RMS
AC power input    100V-120V or 220V-240V
Cooling    Passive
LED indicators    1 Power LED, 1 System Limit, 1 Front LED
Input Impedance    50k/100k un-balanced/balanced
Input Gain    -∞to +36db
I/O    2 XLR Combo
2 XLR M Thru
Cabinet    18mm Duraflex-coated Birch Plywood
Grille    16GA perforated steel with acoustically transparent black cloth backing
Suspension / Mounting    1 M20 Threaded Polecup
Handles    2
Net Weight    35.5kg (78.26 in.)
Gross Weight    42.5kg (93.70 in.)
Product Dims    HxWxL 674x609x637mm (26.54x23.98x25.08 in.)
Shipping Dims    HxWxL 722x743x713mm (28.43x29.25x28.07 in.)
