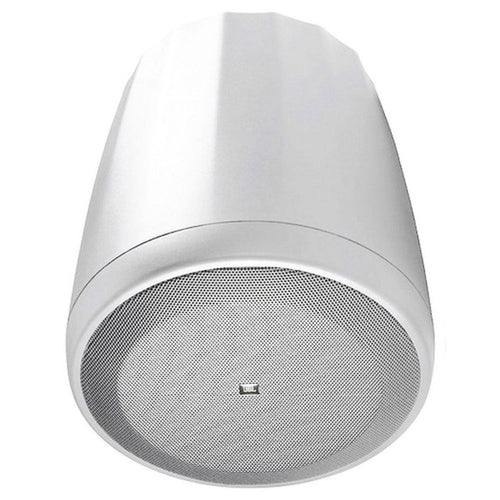

JBL CONTROL 67PT 6.5'' Compact Full-Range Pendant Speaker

Roll over image to zoom in Click on image to zoom

JBL CONTROL 67PT 6.5'' Compact Full-Range Pendant Speaker

JBLSKU: CONTROL 65PT WHITE

Couleur: Blanc

Variant

Price:

$599.00

Shipping calculated at checkout

Stock:

Sold out

Quantity:

Pay with Interac e-Transfer® at checkout

Share this product

Extended Range Full-Range Pendant Speaker

Control 67P/T incorporates a large enclosure and high-power 6.5” (165 mm) transducer for extended bass and high-fidelity performance. The extra-large RBI Radiation Boundary Integrator™ provides outstanding pattern control, which can allow fewer speakers to cover a venue.

Features

RBI Radiation Boundary Integrator Technology
120° conical coverage
6.5" (165 mm) low-frequency with silk-dome tweeter for high-fidelity sound quality
75 Watts, 8 ohms and 60W multi-tap transformer.
Black or white

Specifications

Frequency Range (-10dB)	58 Hz – 18 kHz
Frequency Range (±3 dB)	78 Hz – 16 kHz
Power Rating	75 Watts Continuous Pink Noise Power (with 300 Watts peaks)150 Watts Continuous Program Power
Nominal Sensitivity	90 dB
Coverage Angle	120° (+20°/-15°)
Directivity Factor (Q)	5.7
Directivity Index (DI)	7.5 dB
Maximum SPL (1m)	109 dB continuous pink noise, 115 dB peak
Impedance	8 ohms
Transformer Taps	70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, 15W
Transformer Insertion Loss	0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
Drivers	LF: 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former HF: 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
Enclosure	High impact polystyrene
Grille	Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Outdoor Capability	Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
Input Connectors	Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension	Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency	Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions (H x W x D)	312 mm (12.3 in) diameter x 330 mm (13.0 in) height to top of cabinet. 350 mm (13.8 in) to top of suspension bracket.
Net Weight (each)	5.2 kg (11.5 lbs)
Shipping Weight (pair)	12.3 kg (27 lbs)
Included Accessories	Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
Optional Accessories	MTC-PC60 top panel / terminal cover
Colors	Available in black or white (-WH). Paintable.

Make An Offer

Name

Offer

Message

JBL CONTROL 67PT 6.5'' Compact Full-Range Pendant Speaker

Extended Range Full-Range Pendant Speaker

Control 67P/T incorporates a large enclosure and high-power 6.5” (165 mm) transducer for extended bass and high-fidelity performance. The extra-large RBI Radiation Boundary Integrator™ provides outstanding pattern control, which can allow fewer speakers to cover a venue.

Features

RBI Radiation Boundary Integrator Technology

120° conical coverage

6.5" (165 mm) low-frequency with silk-dome tweeter for high-fidelity sound quality

75 Watts, 8 ohms and 60W multi-tap transformer.

Black or white

Specifications

Frequency Range (-10dB) 58 Hz – 18 kHz

Frequency Range (±3 dB) 78 Hz – 16 kHz

Power Rating 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)150 Watts Continuous Program Power

Nominal Sensitivity 90 dB

Coverage Angle 120° (+20°/-15°)

Directivity Factor (Q) 5.7

Directivity Index (DI) 7.5 dB

Maximum SPL (1m) 109 dB continuous pink noise, 115 dB peak

Impedance 8 ohms

Transformer Taps 70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, 15W

Transformer Insertion Loss 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W

Drivers LF: 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
HF: 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former

Enclosure High impact polystyrene

Grille Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)

Outdoor Capability Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.

Input Connectors Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.

Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).

Safety Agency Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.

Dimensions (H x W x D) 312 mm (12.3 in) diameter x 330 mm (13.0 in) height to top of cabinet. 350 mm (13.8 in) to top of suspension bracket.

Net Weight (each) 5.2 kg (11.5 lbs)

Shipping Weight (pair) 12.3 kg (27 lbs)

Included Accessories Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.

Optional Accessories MTC-PC60 top panel / terminal cover

Colors Available in black or white (-WH). Paintable.
