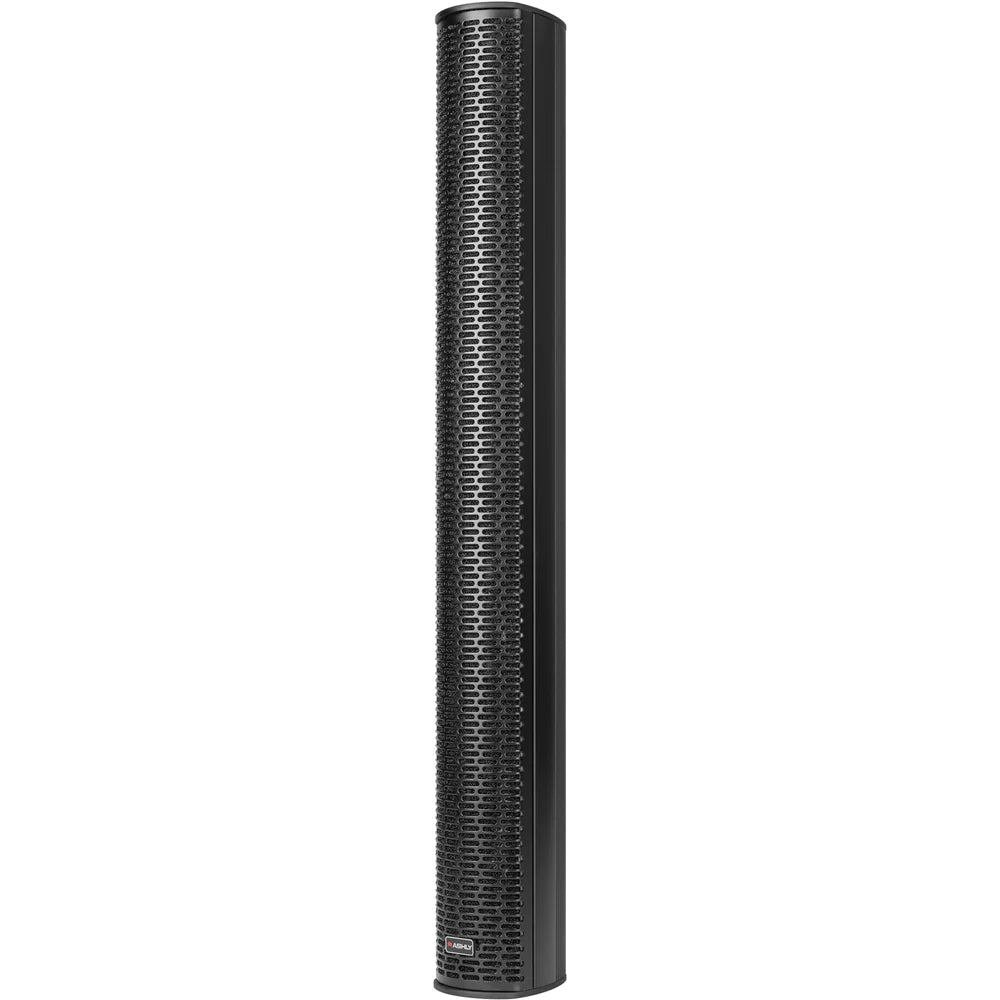

ASHLY IS 3.8P - Ashly IS-3.8P Passive Dual-Z Directivity Column Speaker-Single - 8 x 3" (Black)

AshlyModel : IS-3.8P

Price:
Sale price$1,689

Shipping calculated at checkout

Stock:
Usually Stock At Our Supplier (3-5 business days)
 More payment options

Description

8 x 3" Passive Dual-Z Focused Directivity Column Speaker.

The Ashly IS 3.8P 8 x 3" Passive Dual-Z Focused Directivity Column Speaker fit perfectly next to flat-screens in conference rooms.

Combined with an SP 12.1P sub, you can create an effective "system on a stick" for churches, wedding receptions and corporate events. Both models ship with flush-mount brackets. Two IS speakers can be joined with an optional joining bracket. Pole and tripod mounts are also available.

IS Series are slim column array speakers designed to deliver high-quality speech and music in venues that require high intelligibility, low physical profile and wide, yet consistent coverage. They are a cost-effective way to provide vertical pattern control, and consistent sound levels front-to-back of a venue... especially when combined with Ashly amps and processors that incorporate Protea or AquaControl™ software. IS columns fit perfectly next to flat-screens in conference rooms; combined with an SP 12.1P sub, you can create an effective "system on a stick" for churches, wedding receptions and corporate events. Their durable all metal enclosures will withstand the rigors of portable use, as well as installation and an impedance switch (8 O/32 O) allows use for both 2/4 speaker or multiple speakers per channel (i.e. distributed) configurations, without loading down the amplifier and without the need for transformers. Available in two configurations: IS 2.8P 2" x 8 Column and IS 3.8P 3" x 8 Column, they are designed to provide optimum performance when used with Ashly's Protea or AquaControl-based DSP. Two speakers may be stacked (using the optional plate) for additional throw where needed. Add the SP-12.1P 12" Subwoofer for a kicking low-frequency response. Flush wall brackets are supplied. Other mount options are also available.

Features

  • 8 x 3-inch matched, high power handling transducers with Neodymium magnet structures and heat-resistant voice coils
  • Switchable 8 O / 32 O impedance allows up to eight loudspeakers to be driven by a single amplifier channel.
  • AquaControl™ and Protea DSP presets for selected Ashly power amplifiers and DSP processors

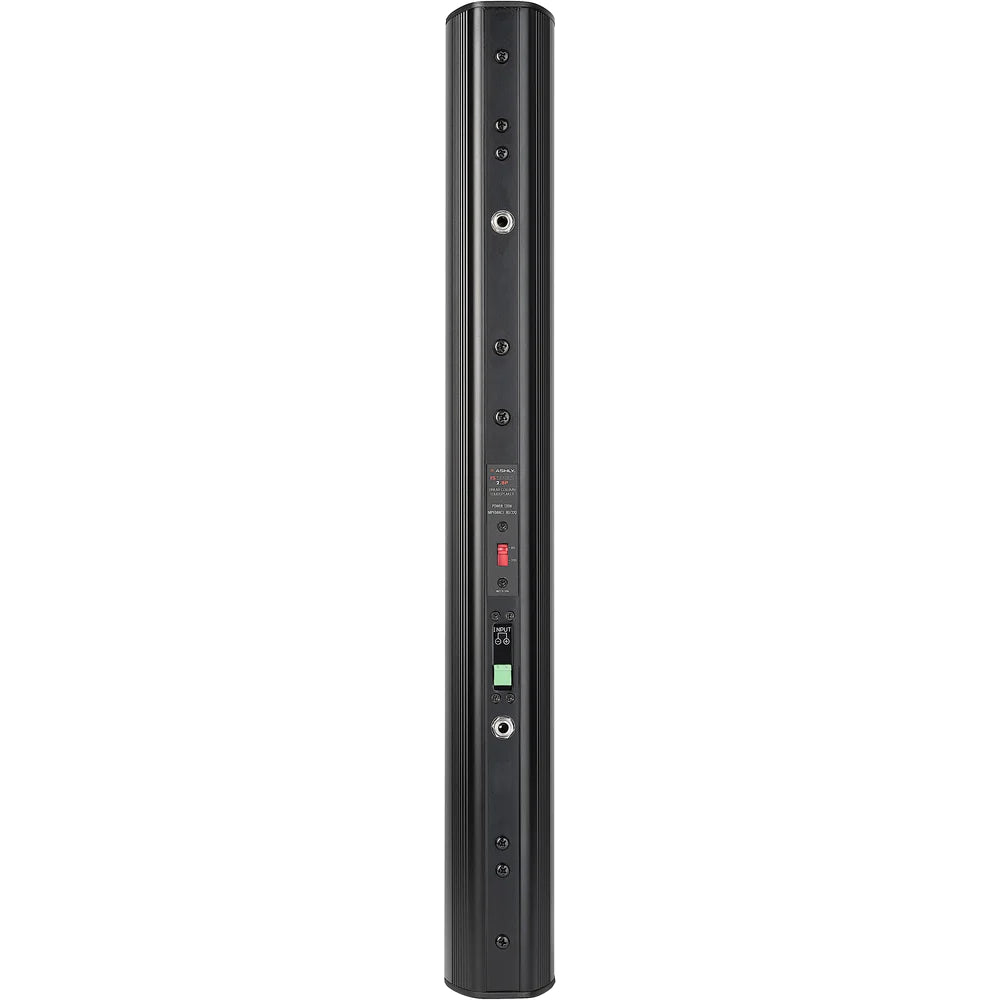

  • 4-pole Euroblock connector, plus 2 x SpeakOn® Connectors
  • High-strength and light aluminum enclosure
  • Durable, chip-resistant polymer coating
  • Optional pole, tripod, and tilt or flush wall mounts

Specifications

  • Transducer: 8 x 3-inch (76 mm), Neodymium
  • Frequency Response(-10dB limits): 105 Hz - 19 kHz
  • Sensitivity (ref 2.83V): 95 dB
  • Nominal Impedance: 8 O / 32 O switchable
  • Maximum Continuous SPL, @ a MIV (continuous / peak): 113 dB / 124 dB
  • Maximum Continuous SPL, calculated from power handling (continuous / peak): 119 dB / 125 dB
  • Maximum Input Voltage (MIV): 30 dBV, 31.6 V (equivalent to 125 W into rated impedance
  • Power Handling: 240 W
  • Beamwidth: Horizontal: 170°, Vertical: 25°
  • Directivity Index (DI): 11.8 dB
  • Directivity Factor (Q): 15.2
  • Input Connectors: 2 x NL4 SpeakOn, 1 x 4-position Euroblock
  • Mounting Provisions: IS-TWM Tilt Wall Mount, IS-FWM Flush Wall Mount Bracket (included)
  • Enclosure Material: Aluminum
  • Dimensions (HxWxD): 31.77 in. x 4.06 in. x 5.12 in. (807 mm x 103 mm x 130 mm)
  • Net Weight: 12.8 lbs. / 5.8 kg
