1-inch titanium diaphragm HF driver with neodymium magnetic structure
Coherent Coverage Waveguide
Full-bandwidth overload protection (LF and HF)

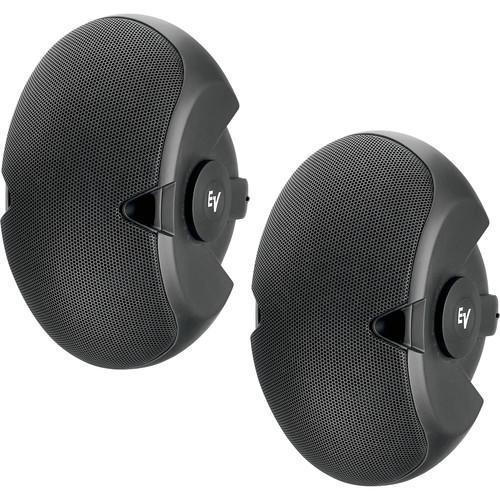

Elliptical weather-resistant ABS enclosure

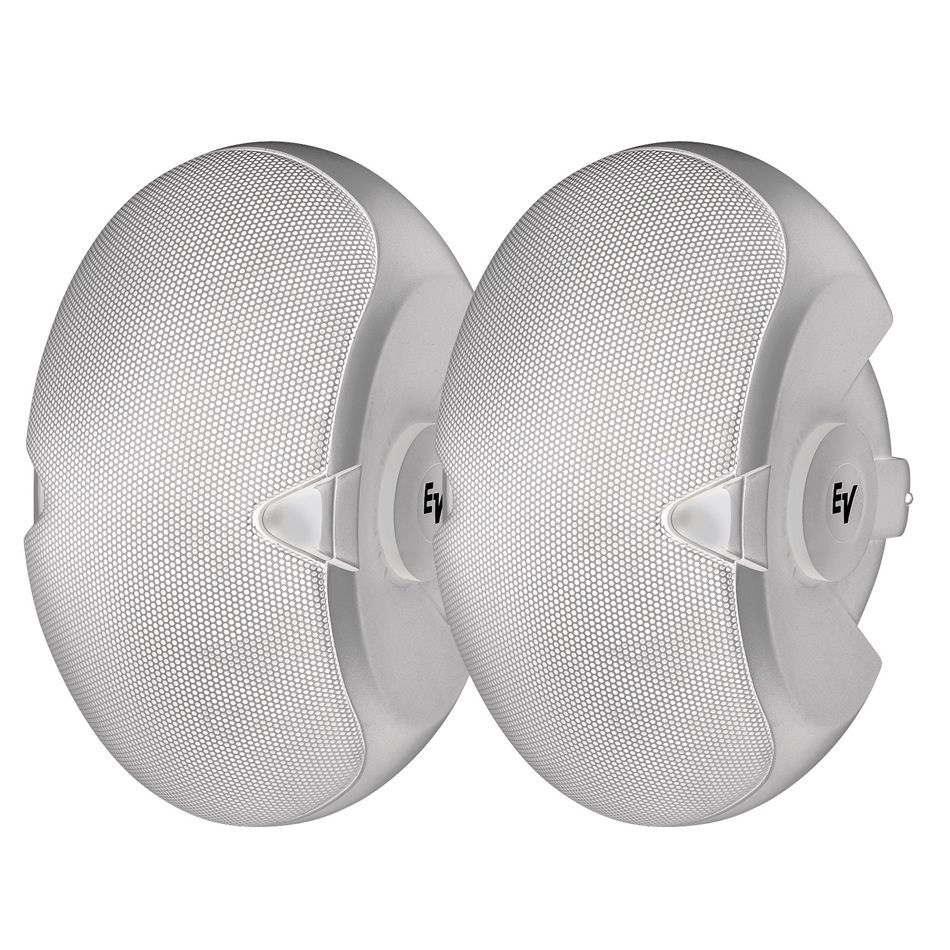

Paintable black or white finish
Magnetically shielded for video applications
Strong-Arm Mount for easy, flexible aiming
"T" version for 70 or 100 V distributed systems
SPECIFICATIONS
Frequency Response1(-10 dB)
65Hz - 20kH
Power Handling2
200W Cont. Prog./400W Peak
Sensitivity3
89 dB, 1W/1m
Impedance
8 ohms
Max SPL
113 db
Horizontal Coverage4
120°
Vertical Coverage4
80°
Crossover Frequency
2.2 kHz
LF Transducer
2 x 4" (100 mm)
HF Transducer
1" (25 mm)
Protection
Full System
Weather Resistance
Meets Mil Spec 810 humidity, salt spray, temperature and UV, and IEC 529 IP 34 splashproof ratings
Swing x Rotation
100° x 90°
Terminals
Phoenix Connector
Enclosure Material
ABS (paintable)
"t" Version Wattage Taps
70V: 3.75 W 70V/100V: 7.5W, 15W, 30W, 8 ohm bypass
Dim (H x W x D)
12.2" x 6.9" x 8.5" (234 mm x 127 mm x 165 mm)
Net Weight (each)
8.5 lbs (3.9 kg)
Shipping Weight (pair)
19 lbs (8.6 kg)
Included Accessories
SAM™, hex key
1Half Space (wall mounting) 2Continuous Program Rating: 3 dB greater than continuous pink noiserating (IEC-shaped pink noise with 6dB crest factor) 3Avg: Half Space (wall mounting) 4When mounted with long axis in vertical plane
