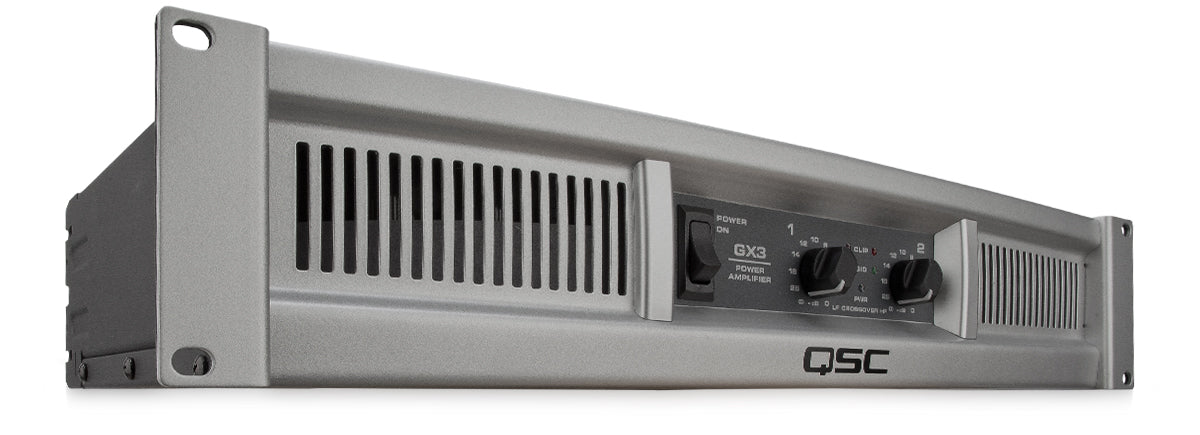

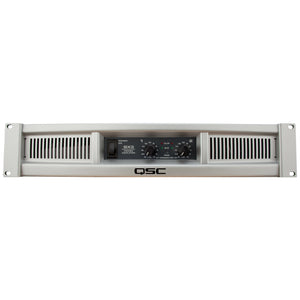

QSC GX3 425-watt Power Amplifier at a Glance:
- The right amount of power for your application
- Efficient operation
- GuardRail: protection from overloads
- Subwoofer-ready when you are
The right amount of power for your application
GX amplifiers deliver just the right amount of power to the most popular speakers used by entertainers. Most loudspeaker manufacturers recommend an amplifier with power output equal to the speaker's ",Program (Music) Power", rating or two times the ",Continuous (RMS) Power", rating.
The GX3 is ideal for speakers in the 300 watt (Program) range, while the GX5 provides full performance for 500 watt (Program) speakers. Both models supply maximum possible power to 4 ohm and 8 ohm loads. Owners of popular 4 ohm loudspeakers (dual-woofer, two-way models and many subwoofers) will find the 700 watt (4 ohm) power of the GX5 an ideal match.
The GX3 uses the latest evolution of the QSC Grounded Collector output system, for optimum cooling of the critical power transistors. A true Class B biasing system combines maximum thermal efficiency with excellent audio performance. The GX5 uses a Class H system, based on key elements of the PLX Series, almost doubling power in the same size and weight. QSC design expertise allows the output devices to shift from low-power to high-power rails in less than a millionth of a second, ensuring that the output power is always right where it needs to be without excess loss.
Both amplifiers use premium toroidal power transformers for reliable ",mid-weight", performance. A variable-speed fan moves air crosswise through the amplifier, drawing cool air in over the power transformer, through the fan, and then over the heat sink. This keeps the transformer cool and allows a full size heat sink to fit in a down-sized chassis. As always, the amplifiers are fully protected from the usual hazards of the trade, ensuring stable performance and long life.
GuardRail: protection from overloads
GuardRail protection delivers full peak power while preventing detrimental overloads. During excessive clipping, or extreme overheating, GuardRail reduces gain just enough to preserve the integrity of the music, protect the speakers and keep the audience excited, without unprofessional distortion levels or shutdowns.
Subwoofer-ready when you are
A subwoofer reduces strain on the full-range speaker, allowing it to play louder, or letting a smaller speaker do the same job. The GX Series supports this mode with a Crossover switch that splits the full-range input entering Ch 1, sending 20 Hz - 100 Hz to the sub (Ch 1) and 100 Hz - 20 kHz to the top box (Ch 2). The front panel gain controls balance the sub and top box, while GuardRail optimizes peak power into the sub and top individually, for greater musical impact and dynamic range.
QSC GX3 425-watt Power Amplifier Features:
- Power levels matched to the most popular speakers
- Optimized for maximum real-world headroom into 4 ohm and 8 ohm speaker systems
- Inputs: XLR, 1/4", TRS and phono input connectors for compatibility with any source
- Outputs: Speakon combo accepts, 1/4", (TS) plugs or Speakon 2-pole and 4-pole plugs (connects 2 poles only). Binding posts support all other speaker wiring systems.
- Minimum depth chassis (10.1", / 257 mm) fits in compact, inexpensive effects racks
- Lightweight - less than 30 lbs.
- Detented gain controls for precise setting and matching of sensitivity
- GuardRail automatically protects the amplifier and loudspeakers from damage due to temperature rise or overdrive without shutting down the show
- Front panel LEDs monitor power, signal and clipping
- Subwoofer/Satellite crossover built-in
- Power at 4 ohms/1kHz (both channels driven): 425W
- Distortion (typical): 20Hz-20kHz, 1dB below rated power
- Dynamic headroom (4 ohms): 2dB
- Input impedance (ohms): reater than 20k (balanced)
- Maximum input level: +24 dB (16 Vrms)
- Input connectors (each channel):
3-pin XLR and 1/4", TRS, balanced, parallel
- Output connectors (each channel)
Speakon, 1/4",, binding posts
- Amplifier and load protection:
Short circuit, open circuit, thermal, RF protection, load protected against DC faults
- Front-panel controls and indicators: Gain controls, 21 detents, red clip LEDs, proportional, 0.1% THD threshold, green signal LEDs, threshold -35dB, blue power LED, AC on

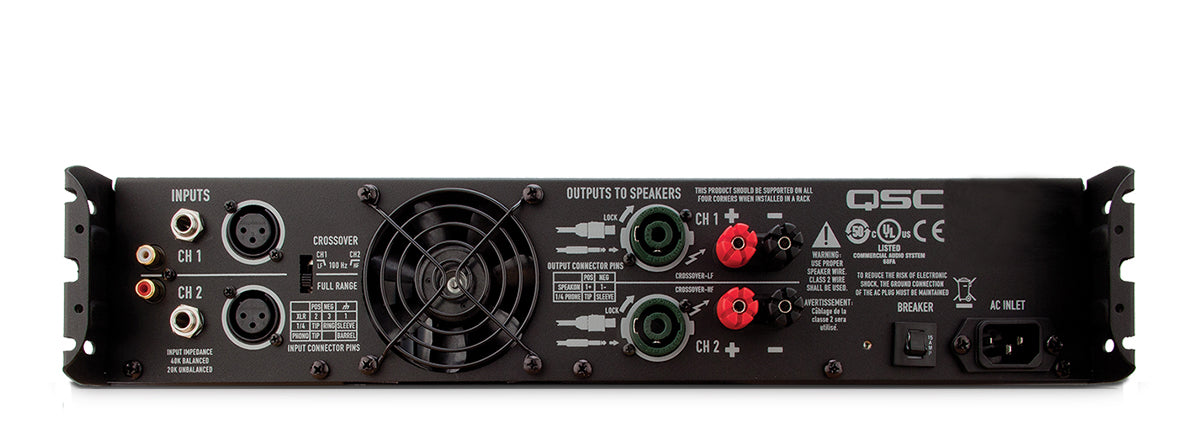

- Rear panel controls: Full range/crossover switch
100Hz, 3rd order LP (sub), 2nd order HP (top)
- Dimensions", Height: 3.5",/2RU,
width: 19",, depth: 10.1",
