ELECTRO-VOICE ETX18SP - 1800 W Class-D power amplifier with integrated FIR-Drive DSP 135 dB peak SPL

Roll over image to zoom in Click on image to zoom

ELECTRO-VOICE ETX18SP - 1800 W Class-D power amplifier with integrated FIR-Drive DSP 135 dB peak SPL

Name: ELECTRO-VOICE ETX18SP - 1800 W Class-D power amplifier with integrated FIR-Drive DSP 135 dB peak SPL
Brand: ELECTRO-VOICE
SKU: ETX-18SP-US
Price: 2849.00 CAD
Availability: InStock

ELECTRO-VOICESKU: ETX-18SP-US

Price:

$2,849.00

Shipping calculated at checkout

Stock:

Available to order from our supplier!

Quantity:

Pay with Interac e-Transfer® at checkout

Share this product

18-inch DVX woofer for extended low-frequency response

1800 W Class-D power amplifier with integrated FIR-Drive DSP
135 dB peak SPL

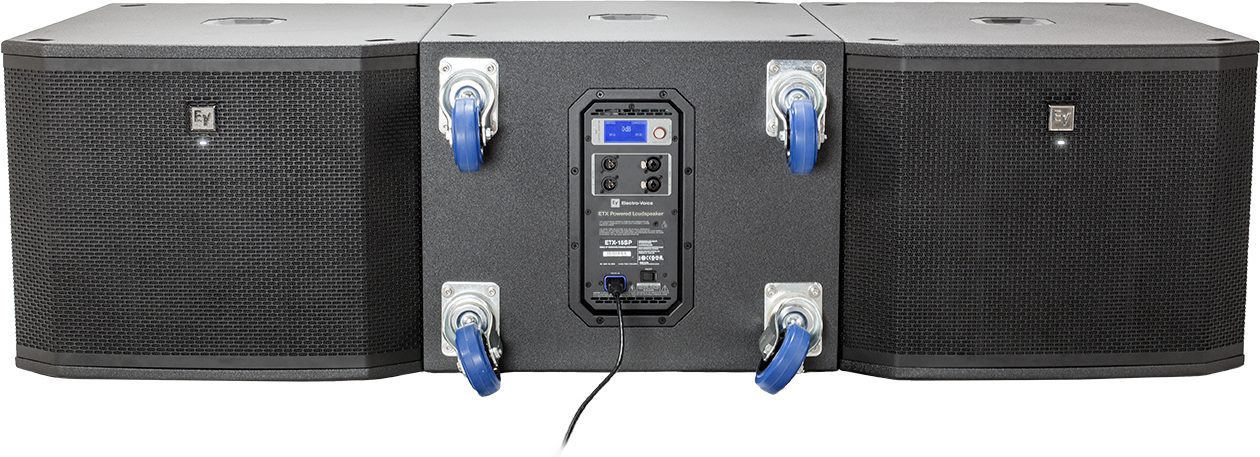

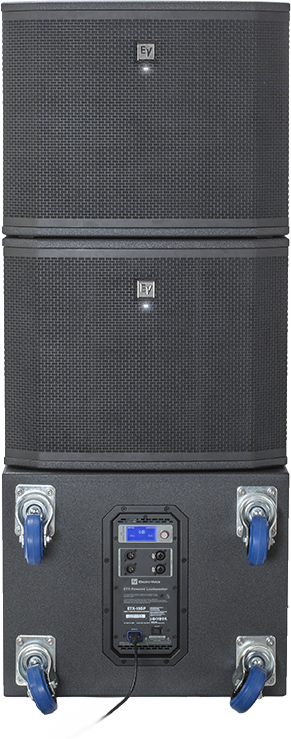

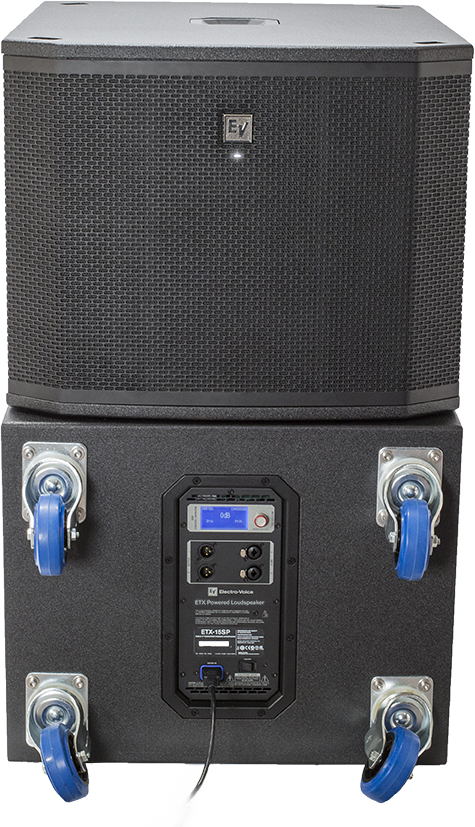

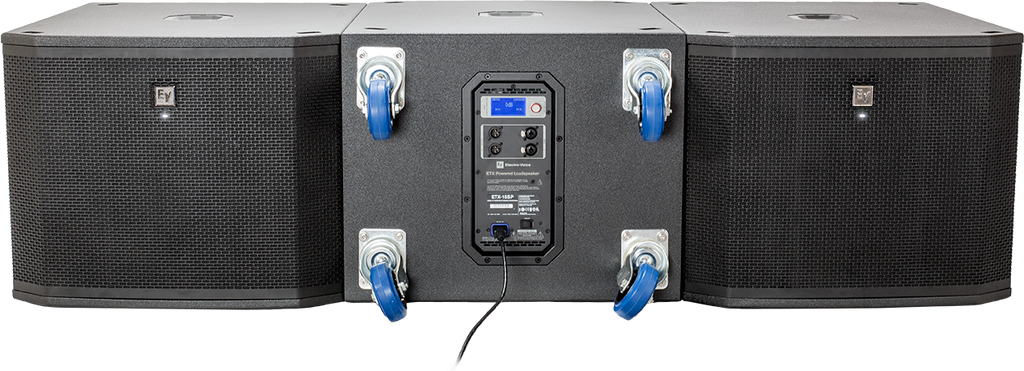

Special DSP preset for true cardioid performance across the full operating bandwidth

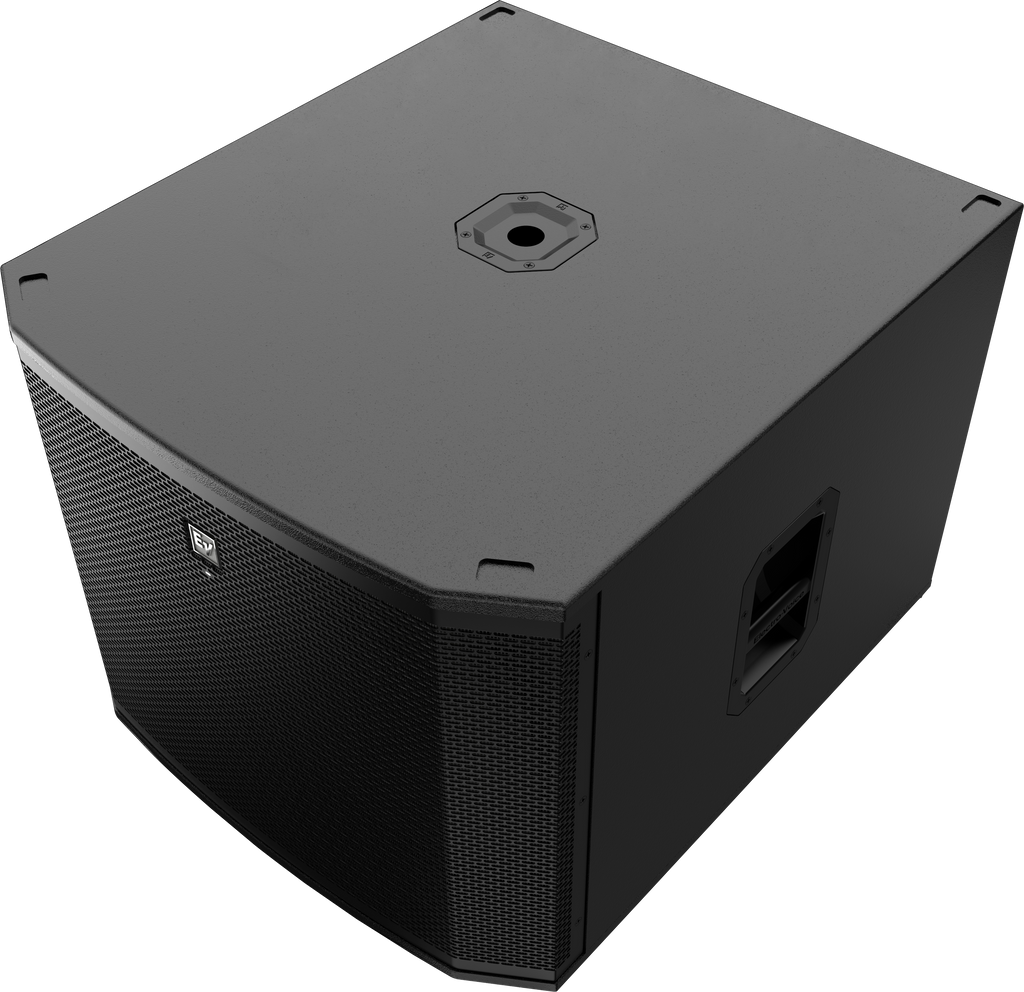

Combo pole cup (insert and threaded) for use with the ETX Powered Loudspeaker full range models

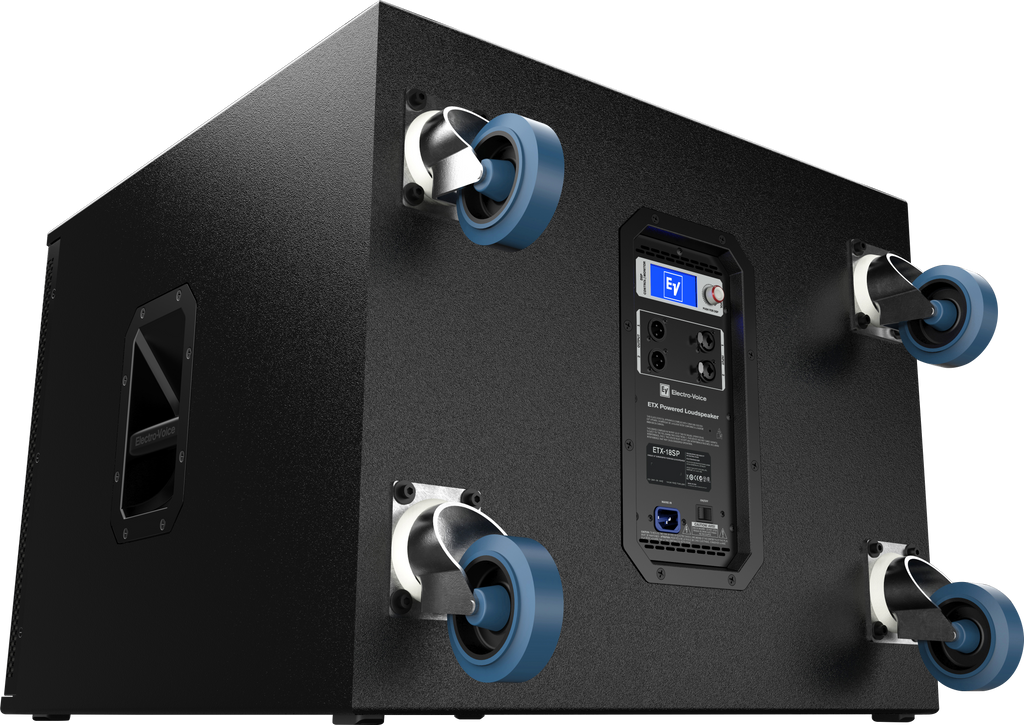

Removable casters

Specifications

Frequency Response (-3 dB)	33 Hz – 150 Hz¹
Frequency Range (-10 dB)	28 Hz – 180 Hz¹
Maximum SPL	135 dB peak²
Power Rating	1800 W
LF Transducer	DVX3180A 457 mm (18 in)
Low Pass Frequency	Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz
Specifications

Connectors	(2) XLR/TRS Combo Jack and (2) XLR link Output
Enclosure	18mm Plywood with EVCoat
Grille	16AWG steel with powdercoat
Dimensions (H x W x D)	550 mm x 675 mm x 910 mm (22 in x 27 in x 36 in)
Dimensions (H x W x D) without casters	550 mm x 675 mm x 777 mm (22 in x 27 in x 31 in)
Net Weight	51.8 kg (114.2 lb)
Shipping Weight	58.9 kg (129.9 lb)
Power Consumption	100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A³

¹ Half space measurement using the music DSP preset and 150 Hz low pass.
² Maximum SPL is measured at 1 m using broadband pink noise at maximum amplifier output.
³ Current rating is 1/8 power.
