Inside each low-profile, tour-grade wood enclosure are a range of unique new features that set ETX apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EV-engineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.
- 15-inch DVX woofer for maximum punch
- 1800 W Class-D power amplifier with integrated FIR-Drive DSP
- 134 dB peak SPL

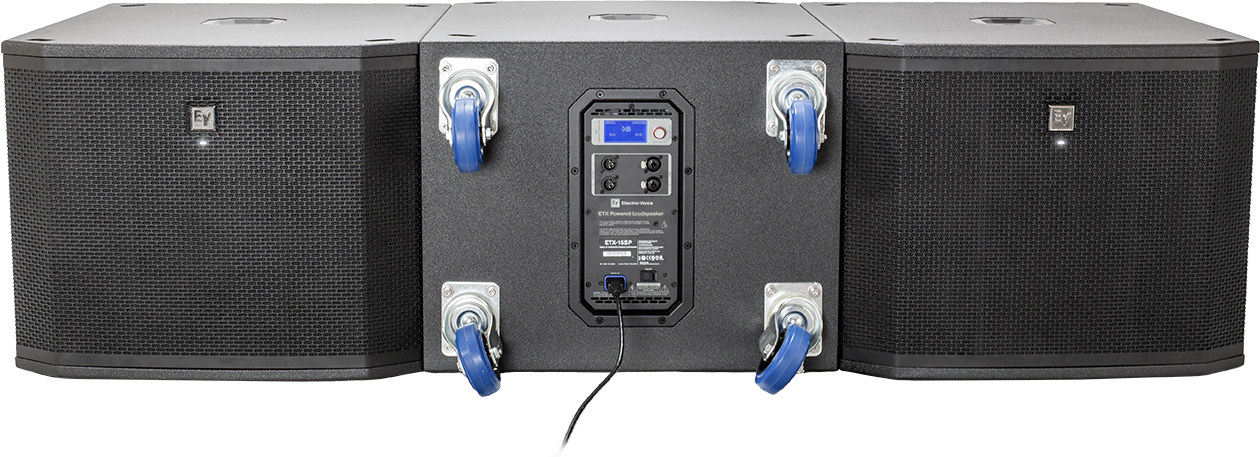

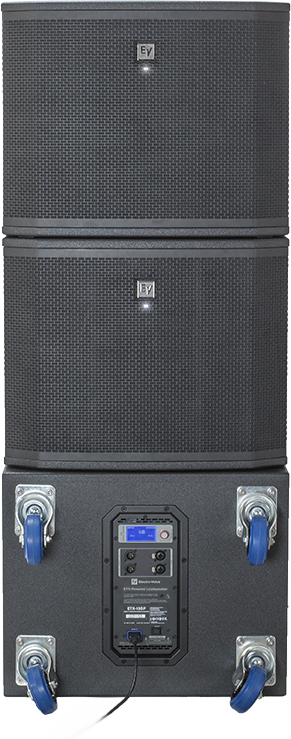

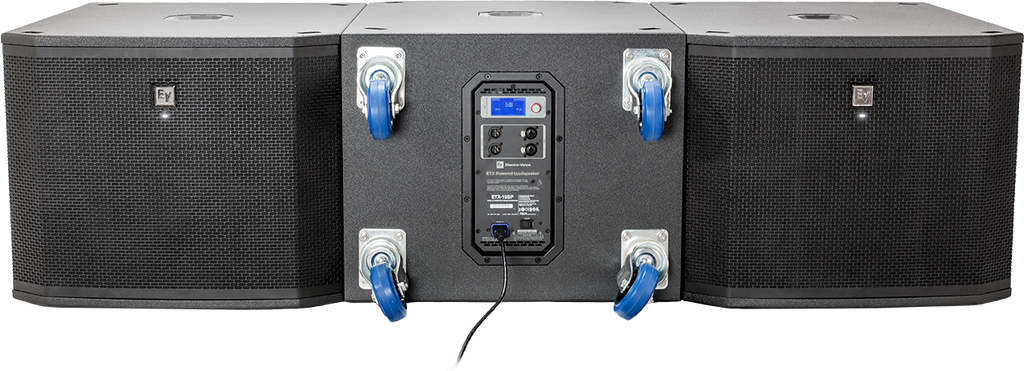

- Special DSP preset for true cardioid performance across the full operating bandwidth

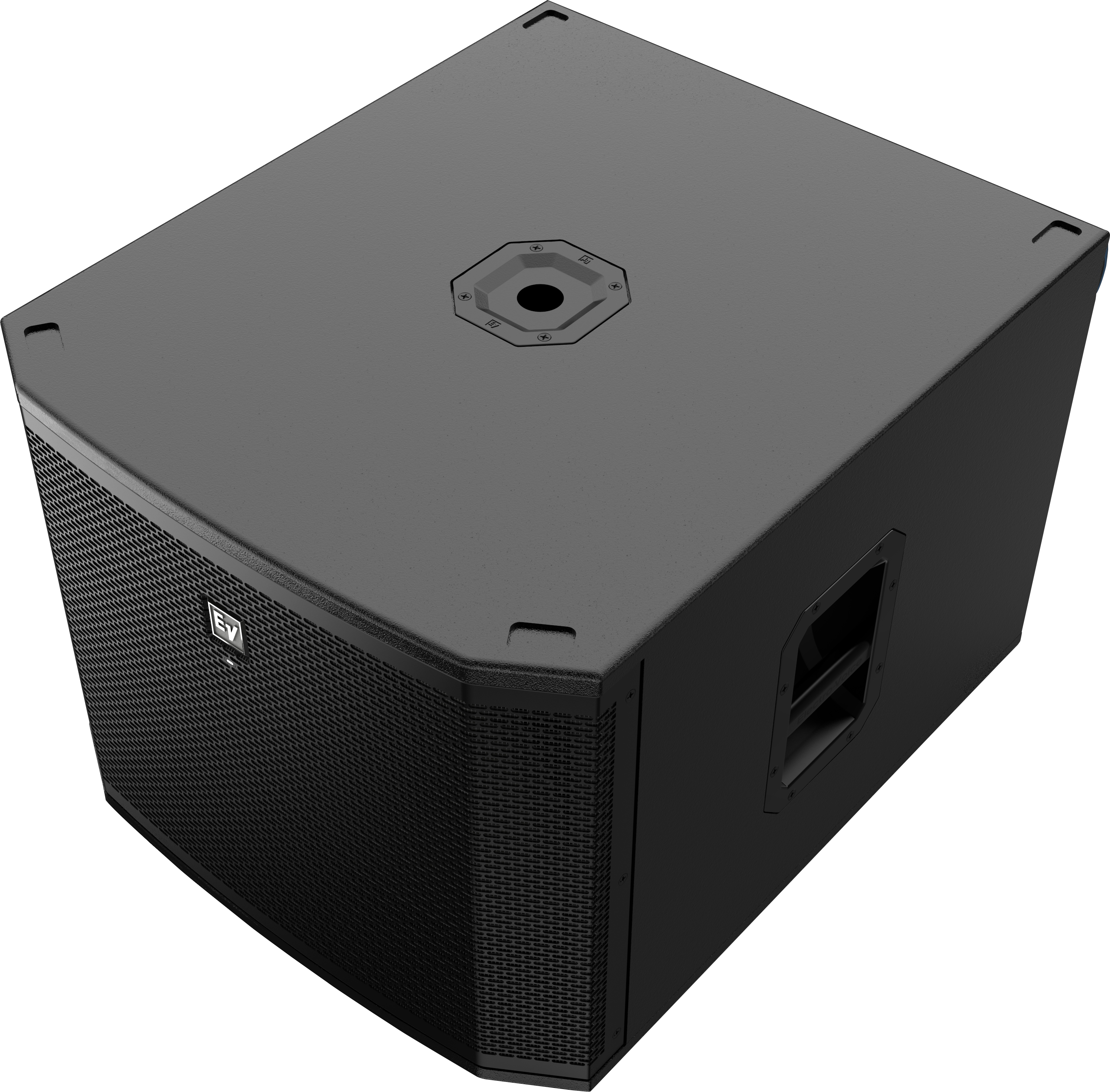

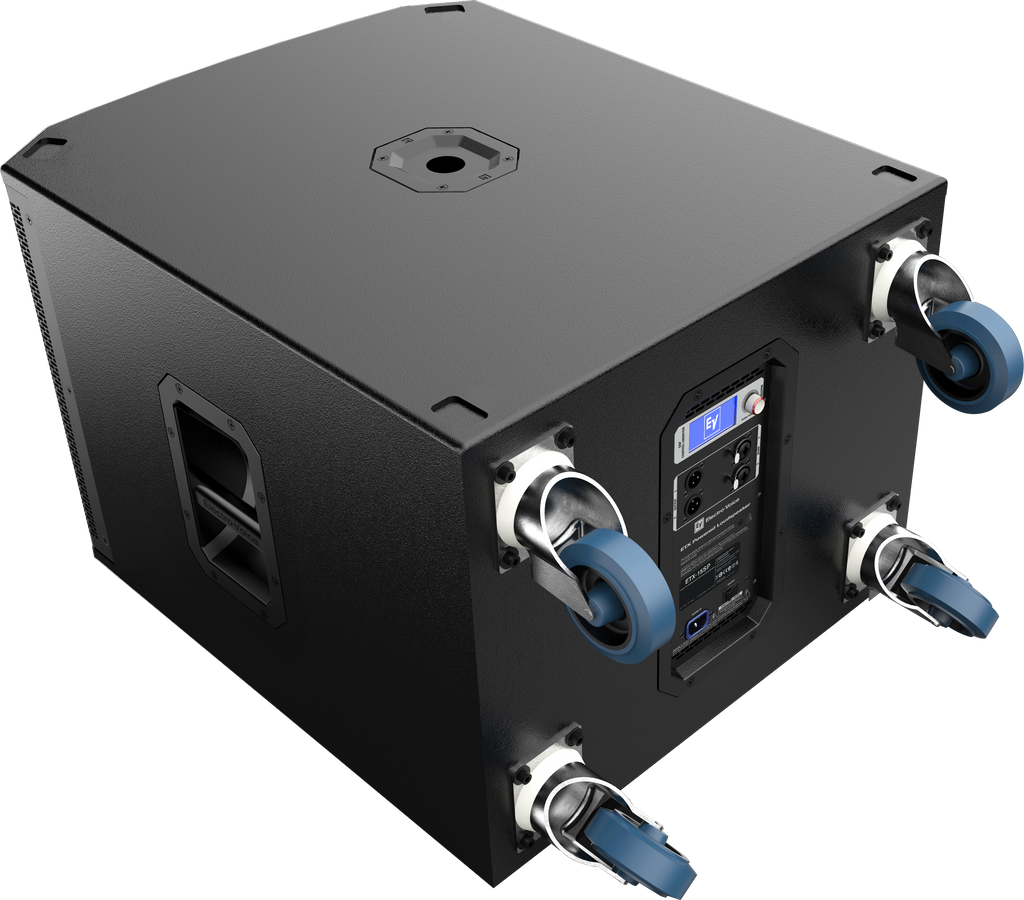

- Combo pole cup (insert and threaded) for use with the ETX two-way models

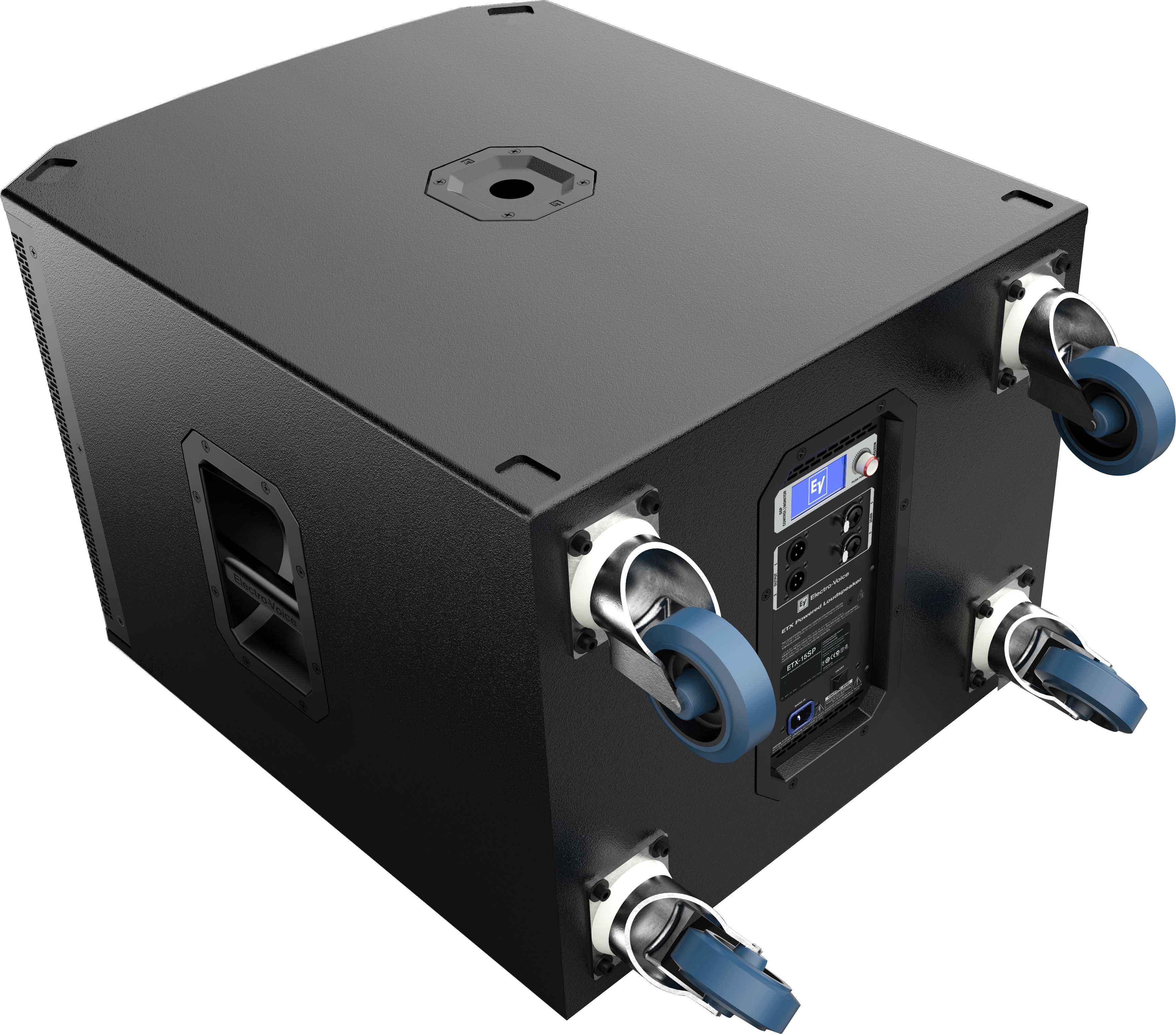

- Removable casters
| Frequency Range |
32 Hz &ndash, 180 Hz |
| Low Pass Frequency |
Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz |
| MaximumSPL |
134 dB peakdB |
| Power Rating |
1800 W |
| Frequency Response |
37 Hz &ndash, 150 Hz |
| LFTransducer |
DVX3159A 380 mm (15 in) |
| Connector Type |
(2) XLR/TRS Combo Jack and (2) XLR link Output |
| Enclosure Material |
18-mm, 13-ply birch plywood with EVCoat |
| Grill |
16AWG steel with powdercoat |
| Suspension |
(8) M10 suspension points |
| Height |
471mm(18.54",) |
| Width |
576mm(22.68",) |
| Depth |
825mm(32.48",) |
