| Frequency Response (-3 dB) |
48 Hz – 20 kHz1
|
| Frequency Range (-10 dB) |
40 Hz – 20 kHz1
|
| Maximum SPL |
135 dB peak2
|
|
|
| Coverage (H x V) |
90° x 60° |
| Power Rating |
2000 W |
| LF Transducer |
SMX2150 380 mm (15 in) |
| HF Transducer |
DH3-B 1.25-in titanium compression driver |
| Crossover Frequency |
1500 Hz |
| Connectors |
(2) XLR/TRS combo jack and (1) XLR link output |
| Enclosure |
18mm Plywood with EVCoat |
| Grille |
16AWG steel with powdercoat |

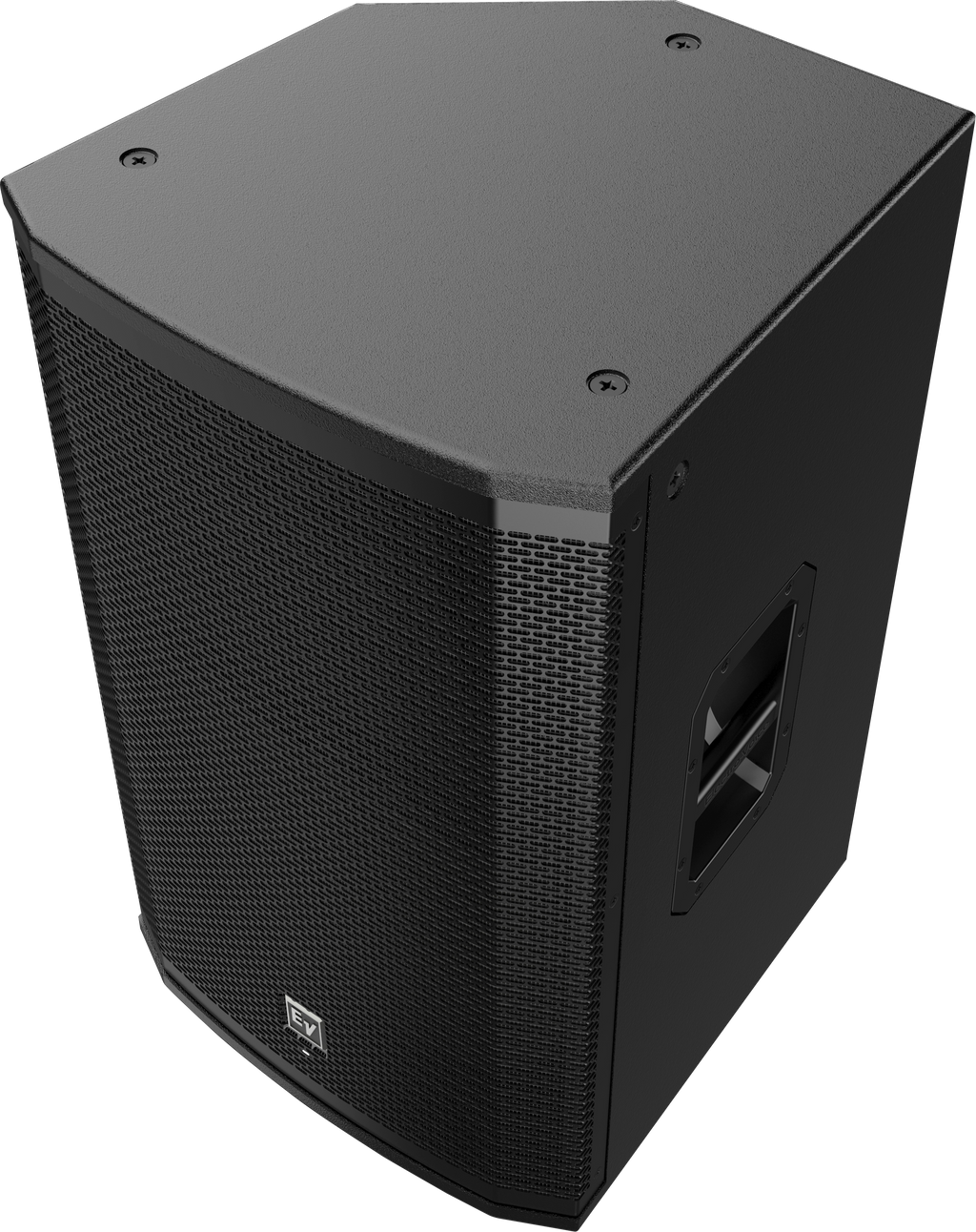

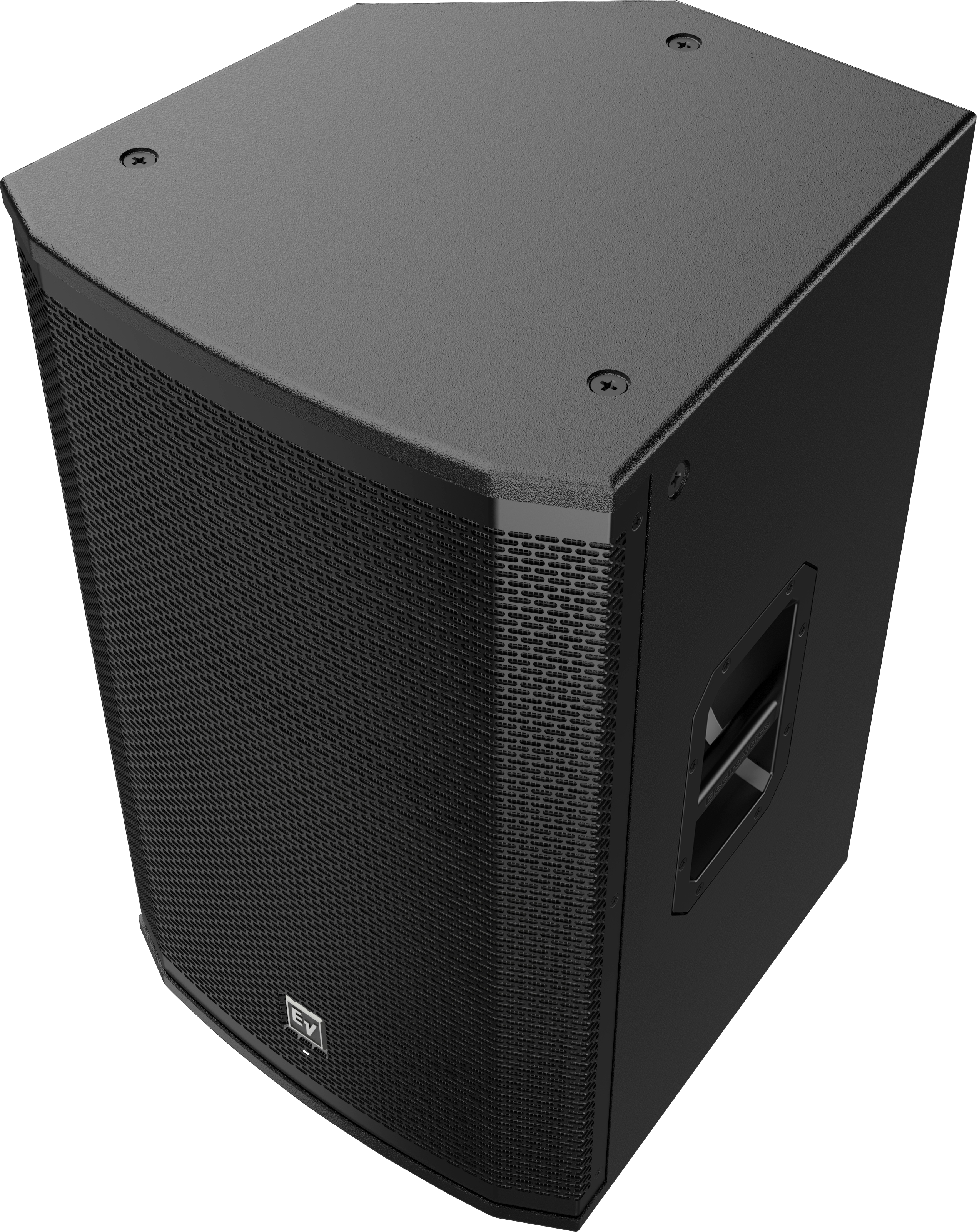

| Suspension |
(8) M10 suspension points |
| Dimensions (H x W x D) |
691 mm x 431 mm x 447 mm (27 in x 17 in x 18 in) |
| Net Weight |
27.7 kg (61.1 lb) |
| Shipping Weight |
31.5 kg (69.5 lb) |
| Power Consumption |
100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A3
|
1 Full space measurement using the music DSP preset.
2 Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
3 Current rating is 1/8 power.
