Description
ES933
Miniature MicroLine condenser hanging microphone, phantom power only, includes wall/ceiling plate power module
ES933
The ES933 condenser hanging microphone is designed for quality sound reinforcement, professional recording, television, and other demanding sound pickup applications. Its low-profile design and excellent response make it ideally suited for suspending over choirs, instrumental groups and theater stages.

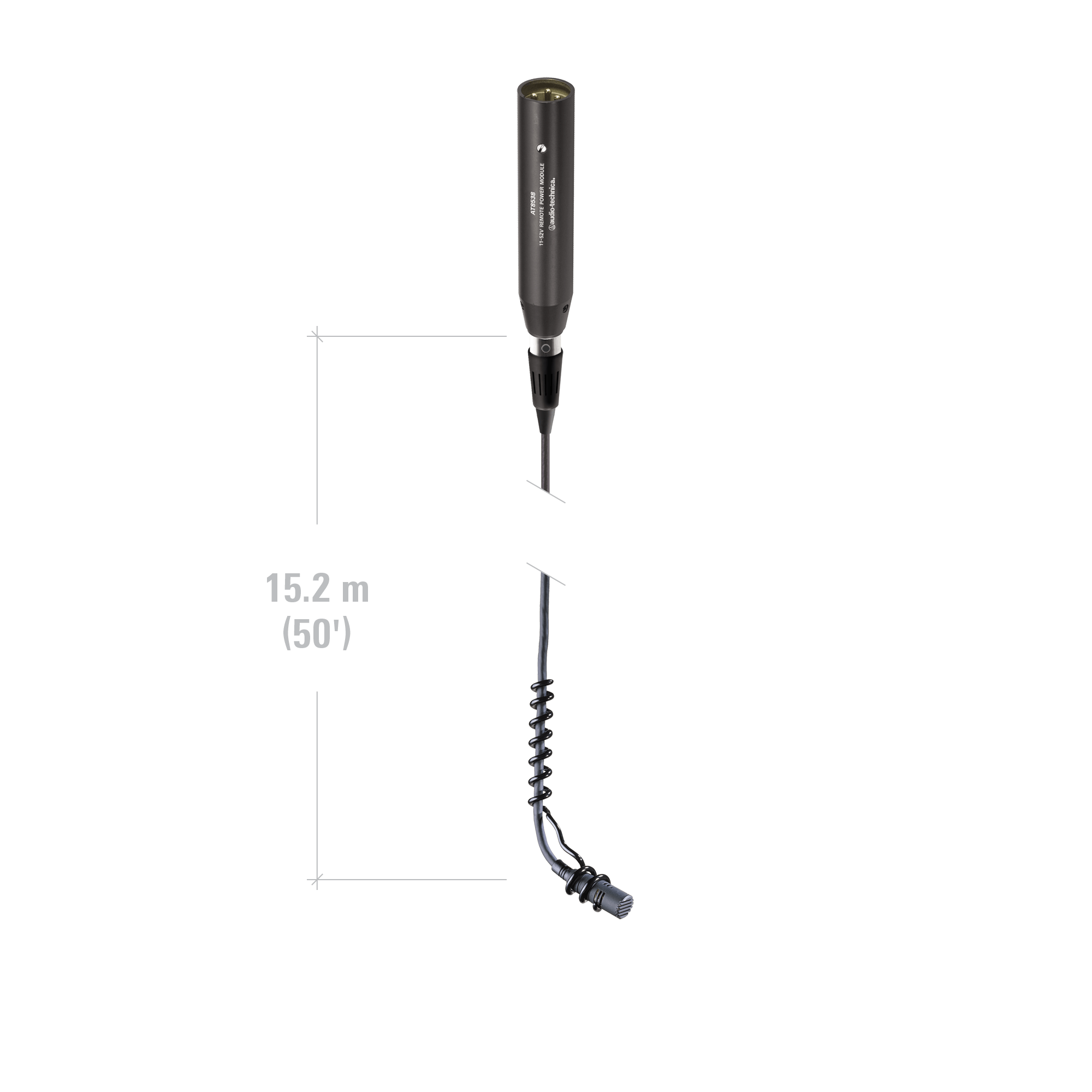

The microphone is equipped with a 15.2 m (50') permanently attached miniature cable, terminated with a TA3F-type connector that attaches to compatible Audio-Technica power modules. UniGuard® RFI-shielding technology protects the microphone from radio frequency interference (RFI).
The microphone comes with a two-stage foam windscreen and vinyl-coated steel hanger. Additional interchangeable elements – omnidirectional (360°), cardioid (120°), hypercardioid (100°), and MicroLine® (90°) – are available separately.
Available configurations:
ES933C/MIC: cardioid polar pattern (120° acceptance angle); no power module; low-reflectance black finish.
ES933H/MIC: hypercardioid polar pattern (100° acceptance angle); no power module; low-reflectance black finish.
ES933ML/MIC: MicroLine polar pattern (90° acceptance angle); no power module; low-reflectance black finish.
ES933WC/MIC: cardioid polar pattern (120° acceptance angle); no power module; low-reflectance white finish.
ES933WH/MIC: hypercardioid polar pattern (100° acceptance angle); no power module; low-reflectance white finish.
ES933WML/MIC: MicroLine polar pattern (90° acceptance angle); no power module; low-reflectance white finish.
ES933C: cardioid polar pattern (120° acceptance angle); AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); low-reflectance black finish.
ES933H: hypercardioid polar pattern (100° acceptance angle); AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); low-reflectance black finish.
ES933ML: MicroLine polar pattern (90° acceptance angle); AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); low-reflectance black finish.
ES933WC: cardioid polar pattern (120° acceptance angle); AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); low-reflectance white finish.
ES933WH: hypercardioid polar pattern (100° acceptance angle); AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); low-reflectance white finish.
ES933WML: MicroLine polar pattern (90° acceptance angle); AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); low-reflectance white finish.
ES933PMC: cardioid polar pattern (120° acceptance angle); AT8534 wall/ceiling plate power module (+10 dB gain switch, 80 Hz high-pass UniSteep® filter); low-reflectance black finish.
ES933PMH: hypercardioid polar pattern (100° acceptance angle); AT8534 wall/ceiling plate power module (+10 dB gain switch, 80 Hz high-pass UniSteep® filter); low-reflectance black finish.
ES933PMML: MicroLine polar pattern (90° acceptance angle); AT8534 wall/ceiling plate power module (+10 dB gain switch, 80 Hz high-pass UniSteep® filter); low-reflectance black finish.
ES933PMWC: cardioid polar pattern (120° acceptance angle); AT8534 wall/ceiling plate power module (+10 dB gain switch, 80 Hz high-pass UniSteep® filter); low-reflectance white finish.
ES933PMWH: hypercardioid polar pattern (100° acceptance angle); AT8534 wall/ceiling plate power module (+10 dB gain switch, 80 Hz high-pass UniSteep® filter); low-reflectance white finish.
ES933PMWML: MicroLine polar pattern (90° acceptance angle); AT8534 wall/ceiling plate power module (+10 dB gain switch, 80 Hz high-pass UniSteep® filter); low-reflectance white finish.
- Designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications
- Small size and excellent response are ideal for suspension over choirs, instrumental groups and theater stages
- Available interchangeable elements permit angle of acceptance from 90º to 360º
- Superior off-axis rejection for maximum gain before feedback
- Requires 11V to 52V DC phantom
- UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- Integral UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
| Microphones | |
|---|---|
| Element | Fixed-charge back plate, permanently polarized condenser |
| Frequency Response | 30-20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Open Circuit Sensitivity | -40 dB (10.0 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | 138 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | 109 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 65 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 2 mA typical |
| Switches | Flat, roll-off |
| Weight (Microphone) | 5.5 g (0.2 oz) |
| Weight (Power Module) | 81 g (2.9 oz) |
| Cable | 15.2 m (50') long (permanently attached to microphone), 3.2 mm (0.13") diameter, 2-conductor shielded cable, terminated with TA3F-type connector |
| Dimensions (Power Module) | 92.9 mm (3.66") long, 18.9 mm (0.74") diameter |
| Dimensions (Microphone) | 27.5 mm (1.08") long, 8.4 mm (0.33") head diameter |
| Output Connector (Power Module) | Integral 3-pin XLRM-type |
| Optional Interchangeable Elements | ESE-O omnidirectional (360°), ESE-H hypercardioid (100°), ESE-ML MicroLine® (90°) |
| Accessories Included | AT8109 two-stage foam windscreen, AT8452 steel hanger |
| Audio-Technica Case Style | M25 |
