Miniature cardioid condenser hanging microphone, phantom power only, includes foam windscreen and steel hanger, black
Overview
ES933
The ES933 condenser hanging microphone is designed for quality sound reinforcement, professional recording, television, and other demanding sound pickup applications. Its low-profile design and excellent response make it ideally suited for suspending over choirs, instrumental groups and theater stages.

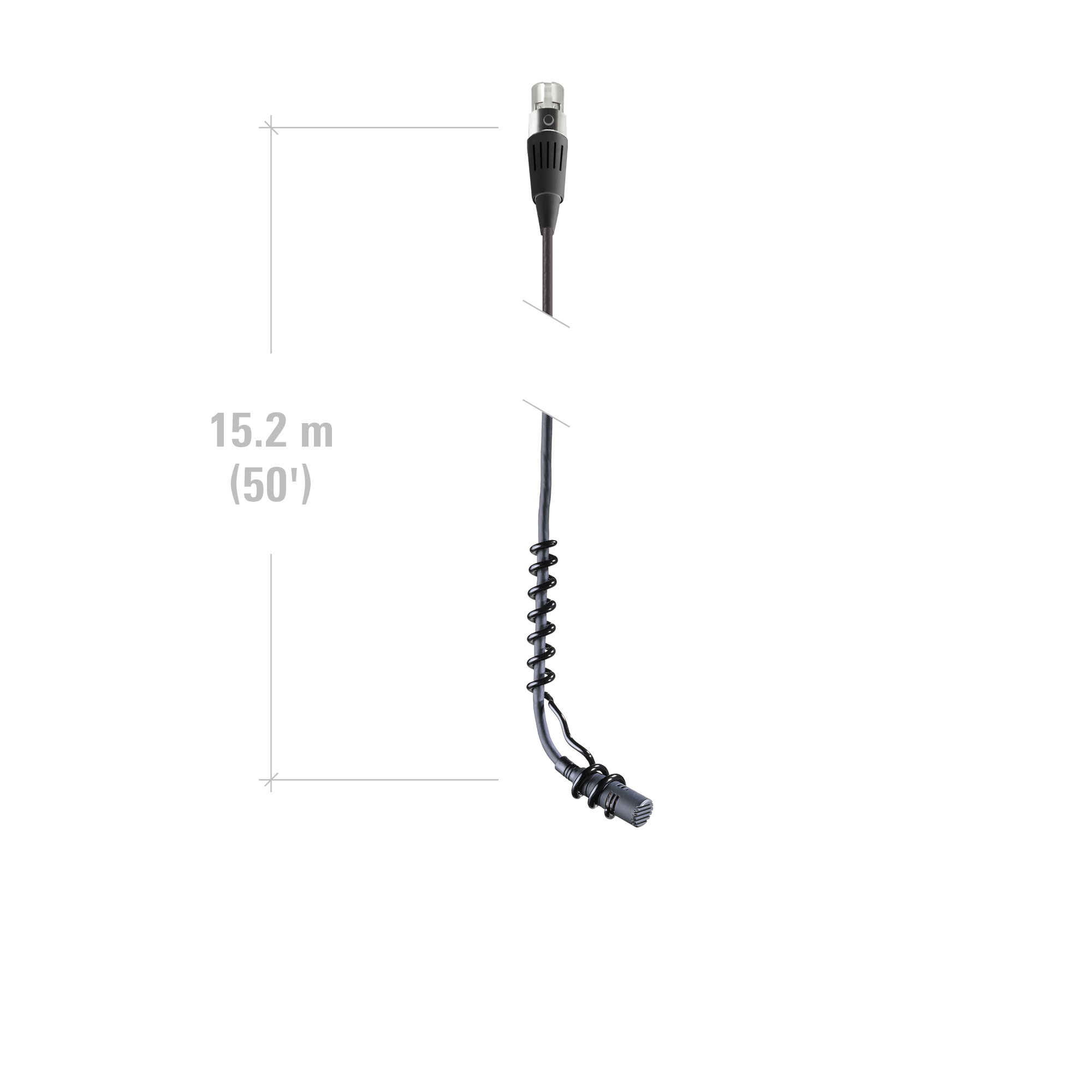

The microphone is equipped with a 15.2 m (50') permanently attached miniature cable, terminated with a TA3F-type connector that attaches to compatible Audio-Technica power modules. UniGuard® RFI-shielding technology protects the microphone from radio frequency interference (RFI).

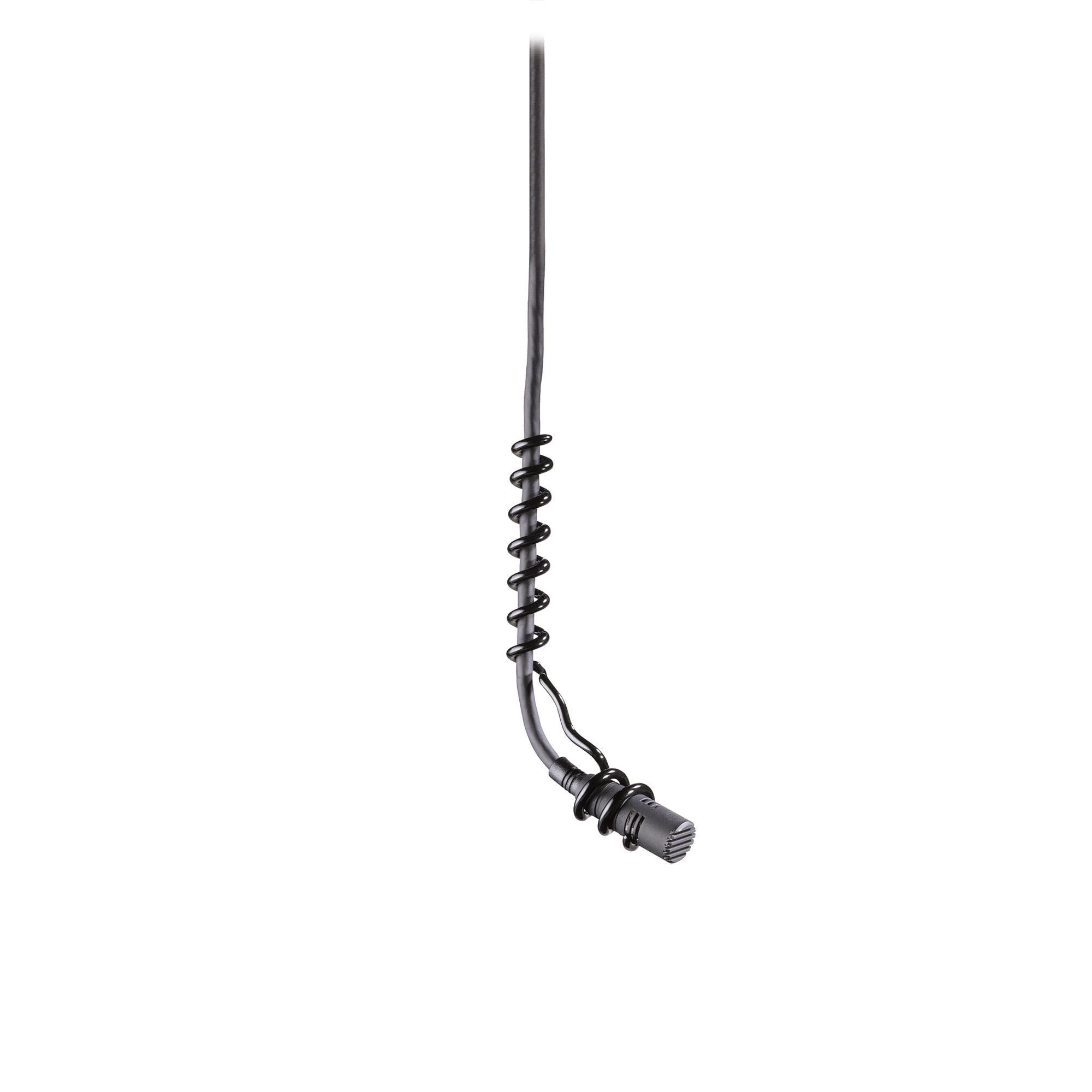

The microphone comes with a two-stage foam windscreen and vinyl-coated steel hanger. Additional interchangeable elements – omnidirectional (360°), cardioid (120°), hypercardioid (100°), and MicroLine® (90°) – are available separately.
Available configurations:
ES933C/MIC:cardioid polar pattern (120° acceptance angle); no power module; low-reflectance black finish.
ES933H/MIC:hypercardioid polar pattern (100° acceptance angle); no power module; low-reflectance black finish.
ES933ML/MIC:MicroLine polar pattern (90° acceptance angle); no power module; low-reflectance black finish.
ES933WC/MIC:cardioid polar pattern (120° acceptance angle); no power module; low-reflectance white finish.
ES933WH/MIC:hypercardioid polar pattern (100° acceptance angle); no power module; low-reflectance white finish.
ES933WML/MIC:MicroLine polar pattern (90° acceptance angle); no power module; low-reflectance white finish.

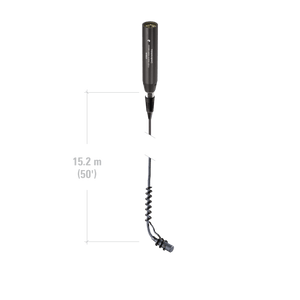

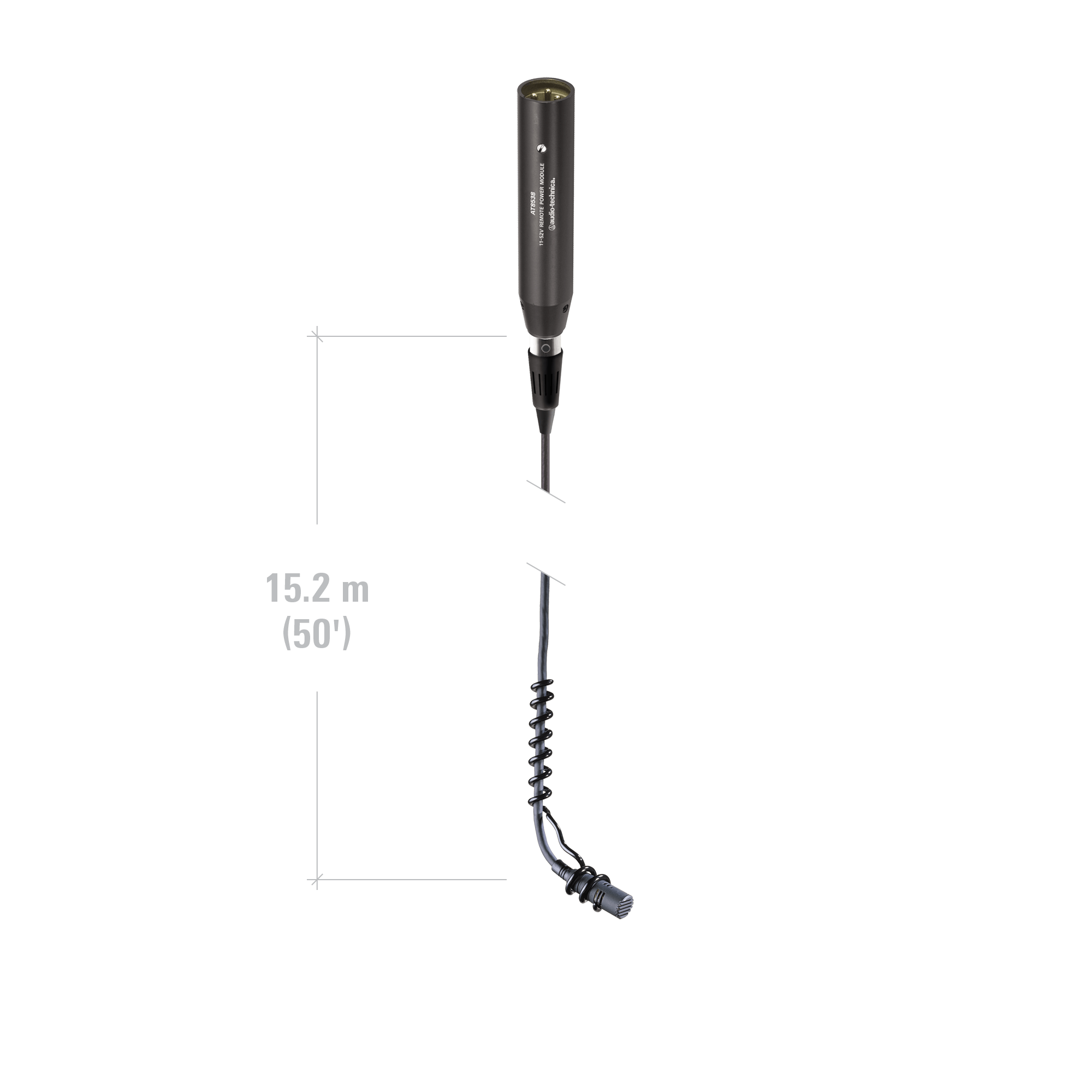

ES933C:cardioid polar pattern (120° acceptance angle); AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); low-reflectance black finish.
ES933H:hypercardioid polar pattern (100° acceptance angle); AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); low-reflectance black finish.
ES933ML:MicroLine polar pattern (90° acceptance angle); AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); low-reflectance black finish.
ES933WC:cardioid polar pattern (120° acceptance angle); AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); low-reflectance white finish.
ES933WH:hypercardioid polar pattern (100° acceptance angle); AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); low-reflectance white finish.
ES933WML:MicroLine polar pattern (90° acceptance angle); AT8538 phantom power only in-line power module (80 Hz high-pass UniSteep® filter); low-reflectance white finish.
Designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications
Small size and excellent response are ideal for suspension over choirs, instrumental groups and theater stages
Available interchangeable elements permit angle of acceptance from 90º to 360º
Superior off-axis rejection for maximum gain before feedback
Requires 11V to 52V DC phantom
UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
Integral UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
Microphones
Element
Fixed-charge back plate, permanently polarised condenser
Frequency Response
30 - 20,000 Hz
Low Frequency Roll Off
80 Hz, 18 dB/octave
Open Circuit Sensitivity
-40 dB (10.0 mV) re 1V at 1 Pa
Maximum Input Sound Level
138 dB SPL, 1 kHz at 1% THD
Dynamic Range
109 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio
65 dB, 1 kHz at 1 Pa
Phantom Power Requirements
11-52V DC, 2 mA typical
Switches
Flat, roll-off
Cable
15.2 m (50') long (permanently attached to microphone), 3.2 mm (0.13") diameter, 2-conductor shielded cable, terminated with TA3F-type connector
