Description
Modular microphone system includes aMicroLine condenser microphone element, 4.85" gooseneck and 3-pin flush-mount power module

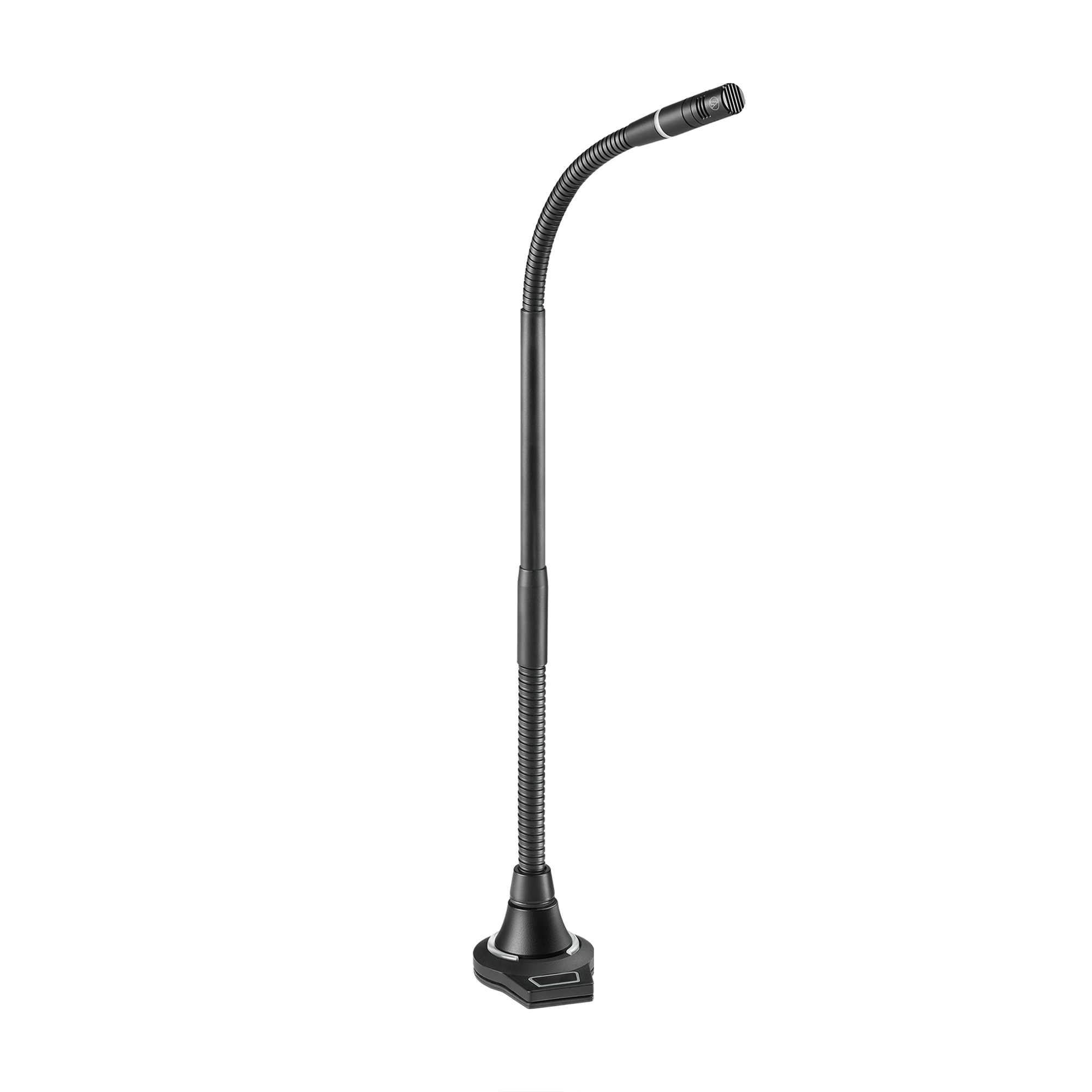

The ES925ML/FM3 is a modular microphone system designed for professional sound reinforcement and other commercial sound applications. It includes a MicroLine® condenser microphone element, gooseneck and a 3-pin flush-mount power module. Each component is interchangeable with other ES modular microphone components, allowing you to mix and match power module types (XLR, FM3, FM5, DS5), gooseneck (4.85", 9.08", 12.08", 15.08", 18.08", 21.08"), and microphone polar patterns (MicroLine®, hypercardioid, cardioid, omnidirectional).
The microphone’s low-profile element provides a uniform MicroLine polar pattern with a 90° acceptance angle. It comes with a foam windscreen to protect against plosives. The microphone element attaches to the small-diameter gooseneck, which offers highly flexible positioning while maintaining a well-contoured appearance. The 3-pin flush-mount power module is equipped with a capacitive touch switch that enables local muting of the microphone. The power module mounts unobtrusively in tabletops and comes with isolators that provide mechanical dampening of the mounting surface. Both the power module and the microphone element housing feature a highly visible, two-state RGB LED status indicator. UniGuard® innovations offer unsurpassed immunity from radio frequency interference.
The ES925ML/FM3 is a modular microphone system designed for professional sound reinforcement and other commercial sound applications. It includes a MicroLine® condenser microphone element, gooseneck and a 3-pin flush-mount power module. Each component is interchangeable with other ES modular microphone components, allowing you to mix and match power module types (XLR, FM3, FM5, DS5), gooseneck (4.85", 9.08", 12.08", 15.08", 18.08", 21.08"), and microphone polar patterns (MicroLine®, hypercardioid, cardioid, omnidirectional).
The microphone’s low-profile element provides a uniform MicroLine polar pattern with a 90° acceptance angle. It comes with a foam windscreen to protect against plosives. The microphone element attaches to the small-diameter gooseneck, which offers highly flexible positioning while maintaining a well-contoured appearance. The 3-pin flush-mount power module is equipped with a capacitive touch switch that enables local muting of the microphone. The power module mounts unobtrusively in tabletops and comes with isolators that provide mechanical dampening of the mounting surface. Both the power module and the microphone element housing feature a highly visible, two-state RGB LED status indicator. UniGuard® innovations offer unsurpassed immunity from radio frequency interference.
- Système de microphone modulaire doté d'une capsule de microphone, d'un col-de-cygne et d'un module d'alimentation (tous interchangeables avec d'autres composants de microphones modulaires ES)
- Module d'alimentation encastrable et logement d'élément dotés d'un voyant d'état DEL RVB à deux états, très visible
- Touche capacitive pour couper localement le microphone
- Module d'alimentation avec sortie de type XLR à 3 broches permettant une installation discrète sur tables
- Conçu pour le renforcement sonore professionnel et d'autres applications commerciales
- Capsules de microphone interchangeables pour un son naturel complet
- Isolateurs acoustiques inclus atténuant les vibrations de surface
- Capsules interchangeables pour varier l'angle d'admission de 90 à 360°
- Col-de-cygne de petit diamètre pour un positionnement très flexible
- Rejet hors axe supérieur pour un gain maximal avant accrochage
- Technologie de blindage RFI UniGuard® pour une protection optimale contre le brouillage radioélectrique
- Bonnette anti-vent en mousse incluse
- Disponible en six longueurs
| Microphones | |
|---|---|
| Capsule | Condensateur polarisé en permanence avec plaque fixe à charge fixe |
| Directivité | Cardioïde |
| Réponse en Fréquence | 30-20 000 Hz |
| Sensibilité | -40 dB (10 mV) réf 1 V/Pa |
| Pression Acoustique Maximale | 140 dB SPL |
| Dynamique | 112 dB |
| Rapport Signal/Bruit | 66 dB |
| Alimentation Fantôme | 22-52 V CC |
| Commutateurs | Couleur de la DEL x 2 : micro on, micro off |
| Consommation Électrique | 8 mA |
| Poids | ES925C6/FM3 : 110 g ES925C12/FM3 : 134 g ES925C15/FM3 : 139 g ES925C18/FM3 : 144 g ES925C21/FM3 : 149 g ES925C24/FM3 : 154 g |
| Dimensions | ES925C6/FM3: 38.0 mm (1.50") W x 48.0 mm (1.89") D x 207.6 mm (8.17") H ES925C12/FM3: 38.0 mm (1.50") W x 48.0 mm (1.89") D x 315.0 mm (12.40") H ES925C15/FM3: 38.0 mm (1.50") W x 48.0 mm (1.89") D x 391.2 mm (15.40") H ES925C18/FM3: 38.0 mm (1. |
| Connecteur de Sortie | Type XLRM 3 broches intégré |
| Capsules Interchangeables En Option | ESE-Ca cardioïde (120°) ESE-Ha hypercardioïde (100°) ESE-MLa MicroLine® (90°) ESE-Oa omnidirectionnel (360°) |
| Accessoires Fournis | Paire d'isolateurs acoustiques, écrou, bonnette anti-vent en mousse AT8109a, vis (M2 x 2), clé hexagonale |
| Boîte de Protection | M44 |
