ES925/XLR Gooseneck Microphone with XLR Power Module
The ES925/XLR is a modular microphone system designed for professional sound reinforcement and other commercial sound applications. It includes a condenser microphone element, gooseneck, and an XLR power module.
Each component is interchangeable with other ES modular microphone components, allowing you to mix and match power module types (XLR, FM3, FM5, DS5), gooseneck lengths (4.85", 9.08", 12.08", 15.08", 18.08", 21.08"), and microphone polar patterns (MicroLine®, hypercardioid, cardioid, omnidirectional).
The low-profile element housing of the ES925/XLR features a highly visible, single-state RGB LED status indicator that functions seamlessly with ATUC series products and the AT8699R desk stand. A foam windscreen is included to protect against plosives. The microphone element attaches to the small-diameter gooseneck, which offers highly flexible positioning while maintaining a well-contoured appearance. The XLR power module plugs into any standard XLRF-type connector or mounts to 5/8"-27 stands using the included quick-mount stand adapter. UniGuard® innovations offer unsurpassed immunity from radio frequency interference.
Each component is interchangeable with other ES925 modular microphone components, allowing you to customize your build.
Power Modules
3-pin XLR (XLR)
3-pin flush-mount (FM3)
5-pin flush-mount (FM5)
5-pin desk stand (DS5)
Gooseneck Lengths
4.85", 9.08", 12.08", 15.08", 18.08", 21.08”
Microphone Polar Patterns
MicroLine®, (90° acceptance angle)
Hypercardioid (100° acceptance angle)
Cardioid (120° acceptance angle)
Omnidirectional (120° acceptance angle) also available
Modular microphone system includes a microphone element, gooseneck and power module each interchangeable with components from other ES Modular Microphones
Element housing features a highly visible, single-state RGB LED status indicator that functions seamlessly with ATUC series products and AT8699R desk stand

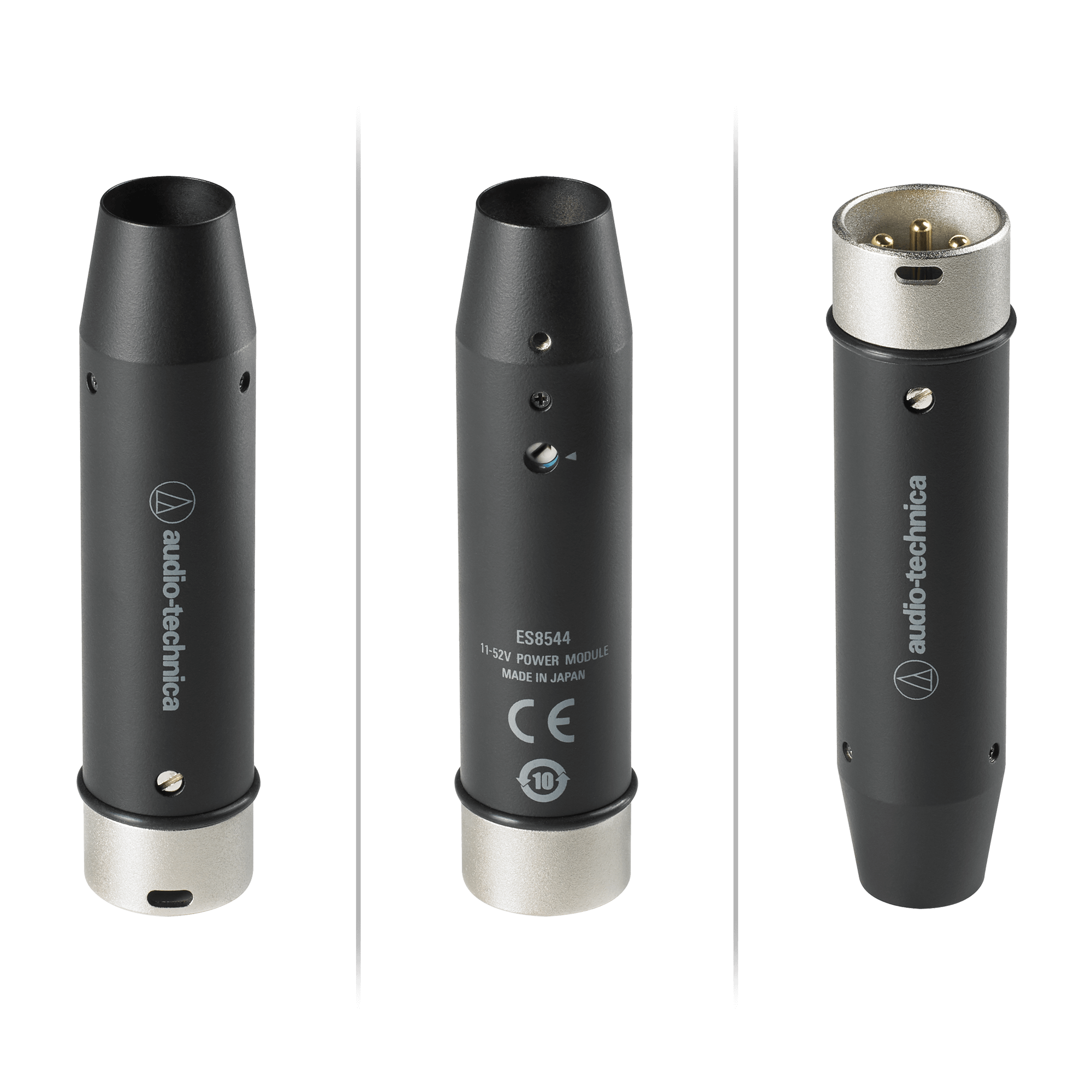

Power module plugs into any standard XLRF-type connector or mounts to 5/8"-27 stands using included quick-mount stand adapter
Available interchangeable elements permit angle of acceptance from 90° to 360°
Designed for professional sound reinforcement and other commercial sound applications
Interchangeable condenser microphone elements provide full-range, natural sound
Included low-profile universal isolation mount attenuates noise, shock and vibration
Superior off-axis rejection for maximum gain before feedback
UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
Includes foam windscreen
Available in six lengths
Microphones
Element
Fixed-charge back plate, permanently polarized condenser
Frequency Response
30-20,000 Hz
Open Circuit Sensitivity
-40 dB (10.0 mV) re 1V at 1 Pa
Maximum Input Sound Level
140 dB SPL
Dynamic Range
112 dB
Signal-to-Noise Ratio
66 dB
Phantom Power Requirements
11-52V DC
Switches
LED Color
Current Consumption
6.7 mA
Weight
ES925C6/XLR: 102.0 g (3.6 oz) ES925C12/XLR: 126.0 g (4.5 oz) ES925C15/XLR: 131.0 g (4.6 oz) ES925C18/XLR: 136.0 g (4.8 oz) ES925C21/XLR: 141.0 g (5.0 oz) ES925C24/XLR: 146.0 g (5.2 oz)
Dimensions
ES925C6/XLR: 20.2 mm (0.80") diameter, 197.4 mm (7.77") height ES925C12/XLR: 20.2 mm (0.80") diameter, 304.8 mm (12.00") height ES925C15/XLR: 20.2 mm (0.80") diameter, 381.0 mm (15.00") height ES925C18/XLR: 20.2 mm (0.80") diameter, 457.2 mm (18
AT8109a foam windscreen; AT8474 universal isolation mount; AT8473 quick mount stand adapter; 5/8"-17 to 3/8"-16 threaded adapter; set screw (M2 x 2); hex wrench
Audio-Technica Case Style
M43
