21-inch - 2400 watts The most powerful subwoofer in the elite family.
Features
- 21-inch rear horn loaded subwoofer
- 2400 watts (3600 watts Peak)
- 142db Peak (136dB Continuous)
- 32-150 (Hz +/- 3dB) Max SPL
- Selectable Punchy, Smooth and Deep modes
- 80Hz to 150 Hz High Frequency Roll-off
- 2 Wheels with rear tilt back
- Handles 2X top rear, 2X bottom front, 3X each side
- Pole mount adapter 1X Top (1 3/8-inch-3.5 cm)
Overview
The ES21P is a 21- inch active subwoofer that dials up the watts to produce an astonishing amount of low-end output. Adding to Elite's existing line of 12, 15 and 18 inch subwoofers, the ES21P is an accessible solution for demanding club and concert settings.
Specifications
| System Type |
Rear Horn Loaded Subwoofer |
| Active or Passive |
Active |
| Power Rating (Watts) |
2400 watts (3600 Watts Peak) |
| Max SPL (dB) |
142dB Peak (136dB Continuous) |
| Frequency Response (Hz +/- 3dB) |
32 - 150 (Hz +/- 3dB) |
| LF Driver(s) |
21-inch Cast Frame Woofer w/6-inch Voicecoil |
| LF Protection |
Thermal / Overcurrent (X-max) / Clip |
| Power Consumption (typ/max) |
120V (4.0A / 5.6A), 230V (2.0A / 2.8A) |

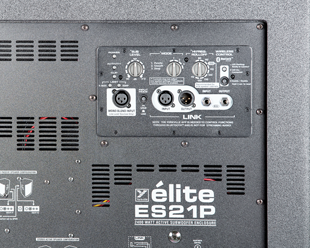

| In / Out Connections |
1 x XLR Input
1 x XLR Mono Blend Input
1 x ¼-inch Link Input
1 x ¼-inch Link Output
1 x XLR Link Output |
| Level Controls |
Master - Sub Level |
| LED Indicators |
Power, Activity, Protection (Clip, X-Max, Temp) |
| Other Controls / Features |
Active Controls: Mode - 1 Punchy, 2 Smooth, 3 Deep
High Frequency Roll-off - 80Hz to 150 Hz |
| Wheels |
2 x Rear tilt-back |

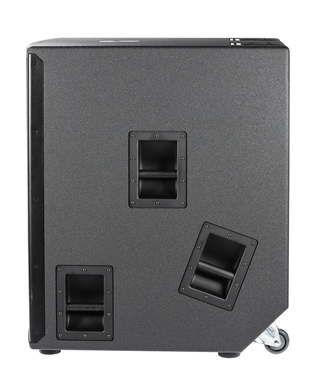

| Bar Handles |
1 x (Left Side ), 1 x (Right Side) |
| Pole Mount Adapter (1 3/8"-3.5cm) |
1 (Top) (1 3/8-inch-3.5cm) |
| Enclosure Materials |
15mm (5/8inch) 11-ply Russian Birch |
| Covering / Finish |
Black Ultrathane Paint |
| Dimensions (DWH xbackW, inches) |
30.5 x 25.5 x 36 (D/W/H) |
| Dimensions (DWH xbackW, cm) |
77.5 x 64.1 x 91 (D/W/H) |
| Weight (lbs/kg) |
202 / 92 |
