ELX118 performance with self-amplification

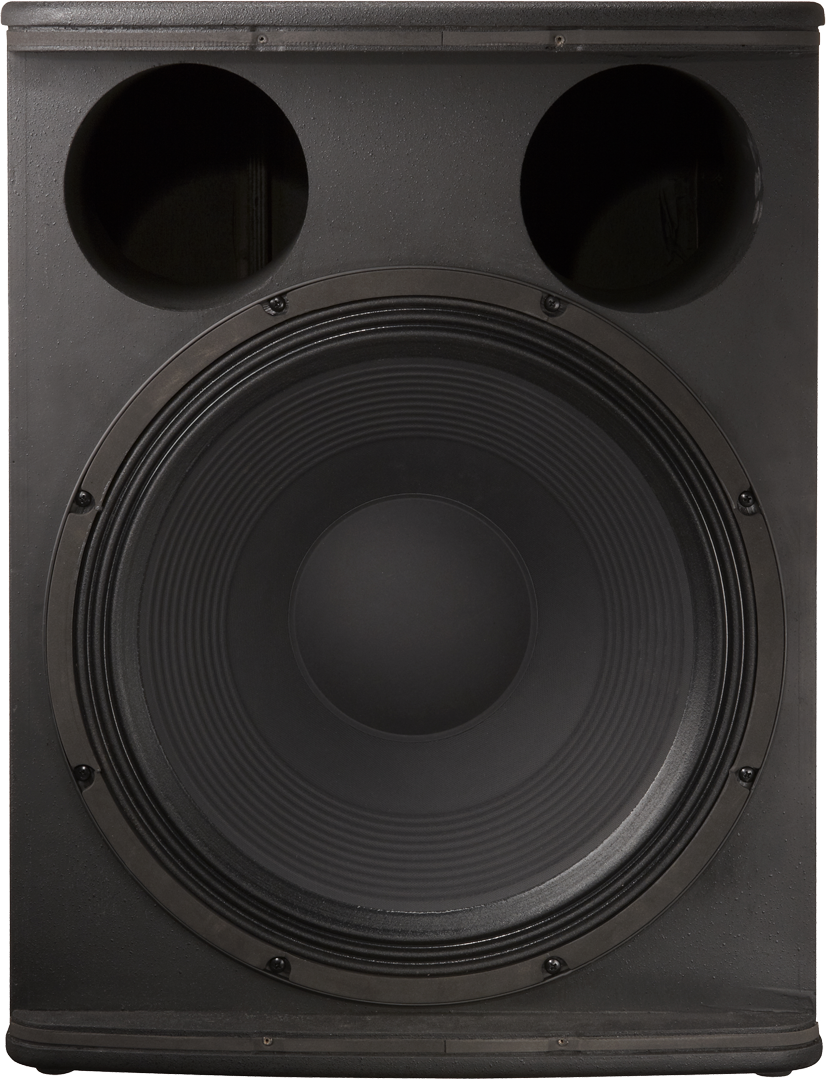

- EVS-18K woofer for extended LF
- 32 Hz, 130 Hz frequency range
- Lightweight, cool-running 700 W Class D amp
- Selectable Normal/Boost modes

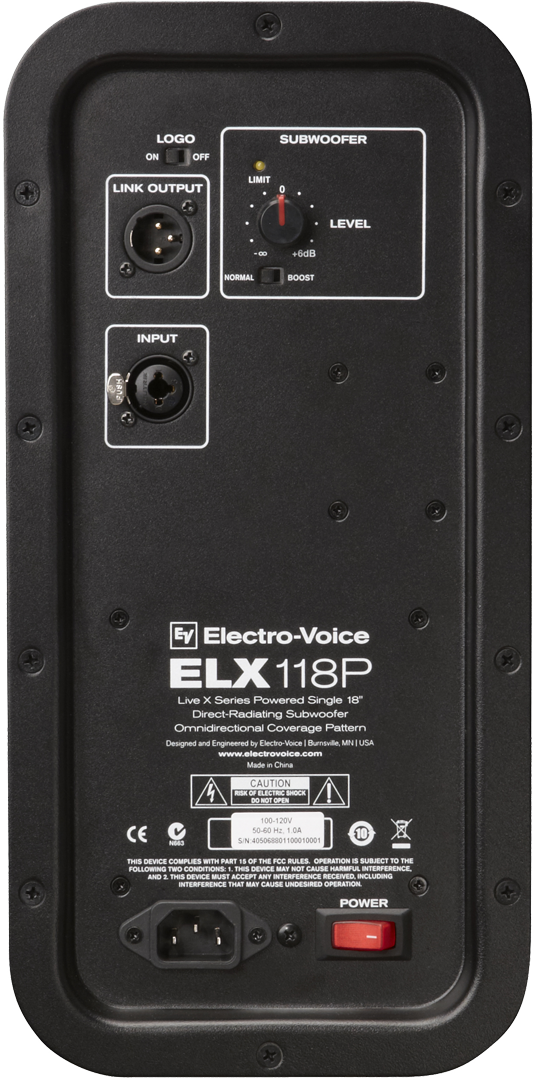

- XLR and TRS combo input
- XLR parallel output.
ase Material |
9-ply, 15mm Plywood, Internally Braced, with Texured Paint |
Color |
Black |
Coverage (Nominal -6 dB) |
Omnidirectional |
Nominal Impedance |
8 &Omega, |
Power Rating |
700 W |
Speaker Type |
Subwoofer |
Woofer Size |
457.2 mm (18",) |
Frequency Response (-3 dB) |
36 - 210 Hz |
Frequency Response (-10 dB) |
32 - 130 Hz |
Internal Crossover |
Yes |
Max. SPL/1m (calc) |
125 dB |
LF Transducer |
(1) EVS-18K, 457mm (18",) Woofer |
HF Transducer |
N/A |
Crossover Frequency |
100 Hz |
Connector Type |
(1) XLR/TRS Combo Jack, (1) XLR Link Output |
Grill |
18GA Steel with Black Powdercoat |
Height |
661 mm (26.02",) |
Width |
507 mm (19.96",) |
Depth |
574 mm (22.6",) |
Weight Net |
31.3 kg (69 lbs) |
Shipping Weight |
39.3 kg (86.64 lbs) |
