The EKX series is the newest member of the Electro-Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology, all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications.
QuickSmartDSP features best-in-class processing, EV's signature single-knob user interface, and intuitive menu navigation via LCD.
Cardioid Control Technology allows output to be steered towards the audience with up to 35 dB reduction on stage when multiple subs are deployed. High-efficiency 1300 W Class D power amplifier delivers up to 134 dB peak SPL on the EKX-18SP utilizing high-sensitivity transducers designed and engineered by EV. Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.

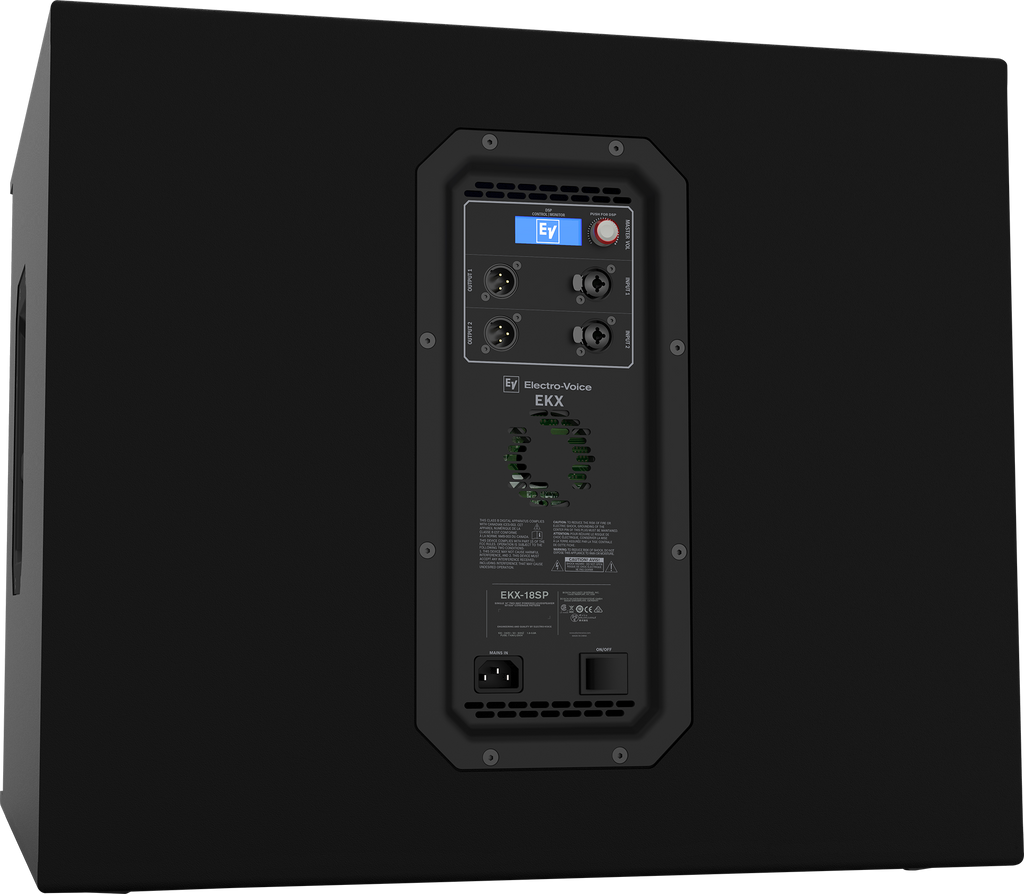

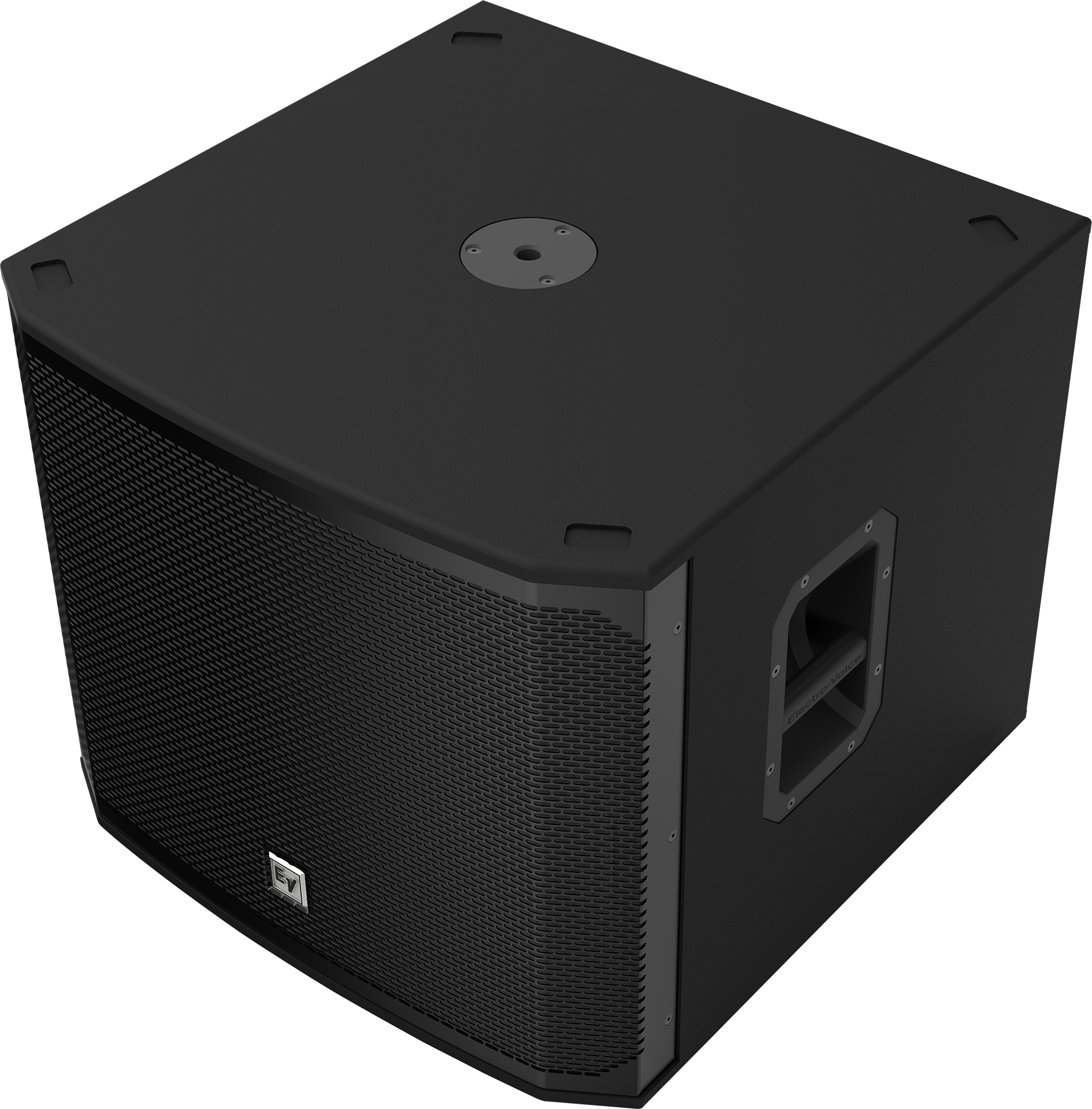

Two XLR outputs for easy system expansion to additional loudspeakers or subwoofers. Large slot ports for low distortion and excellent bass extension. Metal grille reinforcement bar (two on the 18SP). M20 threaded pole mount plate.
| Type de connecteur |
(2) XLR / TRS prises combo et (2) sorties de liaison XLR |
| Mate,riau du boî,tier |
15 mm, contre-plaque, avec EVCoat. |
| Re,ponse en fre,quence (-10dB) |
35 Hz - 180Hzdemi-espace de mesure |
| Re,ponse en fre,quence (-3dB) |
40 Hz - 150Hzdemi-espace de mesure |
| Gril |
18 AWG acier avec revê,tement en poudre |
| LFtransducteur |
EVS-18C 457 mm (18 po) |
| Passe-bas Fre,quence |
Re,glable: 80 Hz, 100 Hz, 120 Hz, 150 Hz |
| MaximumSPL |
134 dB maximum SPL, 1 m en utilisant un bruit rose large bande a, la puissance maximale. |
| Consommation |
1.8 Une note actuelle est huitiè,me puissance |
| Puissance |
1300 W |
| Poids |
41,2kg(90,83lb) |
| Hauteur |
12RU520mm(20,47",) |
| Largeur |
606mm(23,86",) |
| Profondeur |
612mm(2409",) |
| Poids net |
32,8kg(72,31lb) |
