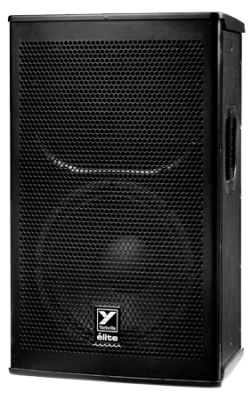

ELITE 12" PASSIVE SPEAKER - 600W.
Building on the market success and positive user reaction to the Elite powered cabinets, Yorkville Sound introduces three new elite passive speakers. Now available in 10, 12 and 15-inch configurations, the passive elites' provide the perfect solution for installations and venues with existing power amps.
• 12-inch Two-way Passive Loudspeaker
• 600 Watts (1200 Watts peak)
• 127dB Peak (124dB Continuous) Max SPL
• 55 - 18k (Hz +/- 3dB)
• Made In Canada
Specifications
| System Type |
Two Way |
| Active or Passive |
Passive |
| Power Rating (Watts) |
600 Watts (1200 Watts Peak / 300 Watts Continuous) |
| Biampable |
No |
| Nominal Impedance (Ohms) |
8 |
| Sensitivity (dB @1Watt/1m) |
97 |
| Max SPL (dB) |
128dB Peak (125dB Continuous) |
| Frequency Response (Hz +/- 3dB) |
55 - 18k |
| Crossover Frequency (Hz) |
1900 |
| Driver Configuration |
12-inch, 3-inch Diaphragm |
| HF Driver(s) |
3-inch Voicecoil (Titanium Diaphragm) |
| HF Horn |
ABS plastic custom Waveguide |
| HF Dispersion (°H x °V) |
60x40 |
| HF Protection |
3xSK3 protection bulbs |
| LF Driver(s) |
12-inch (3-inch voicecoil) |
| Inputs - 1/4" Jacks |
2 |
| Inputs - Speakon 4-pin |
2 |
| Bar Handles |
2 |
| Flying Hardware |
3/8-inch x 3 (2 Top, 1 Back) |
| Pole Mount Adapter (1 3/8"-3.5cm) |
Yes |
| Enclosure Materials |
15mm (5/8inch) 11-ply Russian Birch |
| Grille |
Perforated Metal |
| Covering / Finish |
Black Ultrathane Paint |
| Dimensions (DWH xbackW, inches) |
14 x 16 x 25.5 x 9.5 |
| Dimensions (DWH xbackW, cm) |
35.5 x 40.5 x 64.8 x 24 |
| Weight (lbs/kg) |
51 / 23 |
