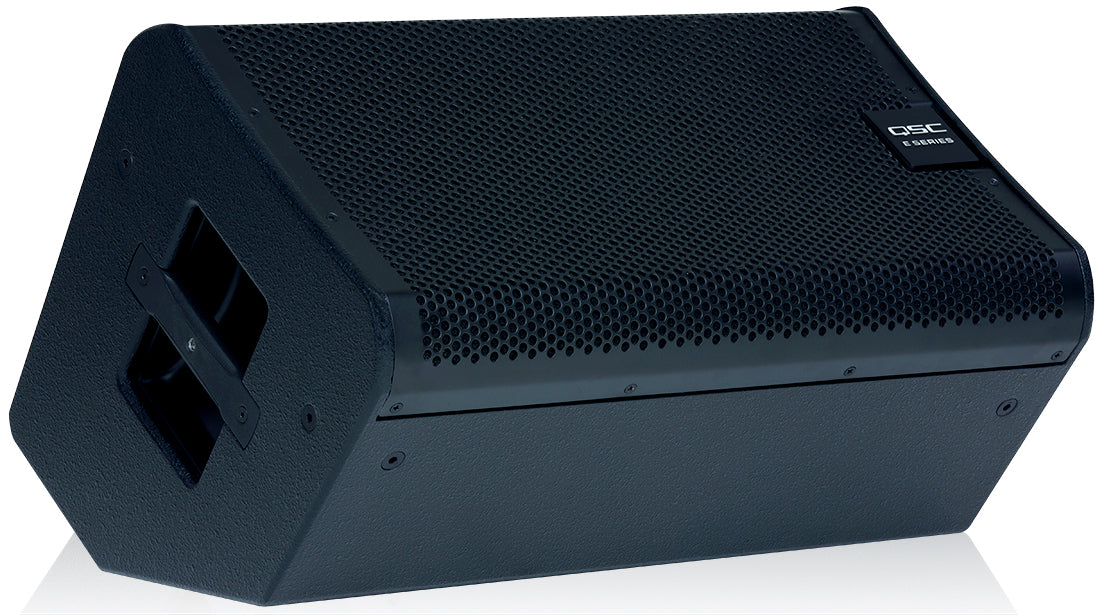

The E10 is a compact, two-way loudspeaker with a 10-inch, die cast frame woofer with a 2.5-inch voice-coil housed in a multi-purpose enclosure that’s at home in stage monitor or main PA deployment. It incorporates QSC’s Directivity Matched Transition® (DMT) design with a wide 85° coverage. When used as a stage monitor, the E10 is angled up at a 55° angle allowing it to be placed near the performer when used on a crowded stage.
E Series loudspeakers will perform very well with any quality, professional power amplifier – but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today’s powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC gxd or pld amplifiers or with a QSC touchmix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.
Features
- High output, professional quality sound with 300 W continuous power
- E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
- Rugged tour-grade textured paint
- Foam-lined perforated steel grill
- Suitable for main PA and stage monitor
- Available U-Style Yoke and M8 rigging kit for permanent installation
- Dual angle pole socket
| Model | E110 |
| Configuration | 1 x 10-inch, 2-way, non-powered |
| Frequency Range (-6 dB) | 68Hz – 20kHz |
| Power capacity²: continuous/peak | 300 W / 1200 W |
| Sensitivity | 95dB, 1W@1m |
| Coverage Angle | 85° conical DMT™ |
| Output (Peak SPL @ 1m) | 126dB |
|
Drivers LF HF |
254 mm (10-inch) driver with 64 mm (2.5-inch) voice coil; 25 mm (1-inch) exit, 45 mm (1.75-inch) voice coil, compression driver |
| Nominal Impedance | 8Ω |
| Cross-over | Full-range only, 1.8kHz |
| Input Connections | 2x NL4, 1x barrier strip |
| Enclosure | Multi-angle plywood, black texture pain finish. One top-mounted handle. Perforated, powder-coated steel grille with foam lining. |
| Mounting and suspension | 6 x M8 suspension points, dual angle, 35mm pole-socket |
| Net weight | 20kg / 44lbs |
| Shipping weight | 23kg / 50lbs |
| Dimensions (WxHxD) |
330x560x330mm 13x22x13 in |
