POWERED 18'' SUB WITH DSP

Power, Performance, and Easy System Integration

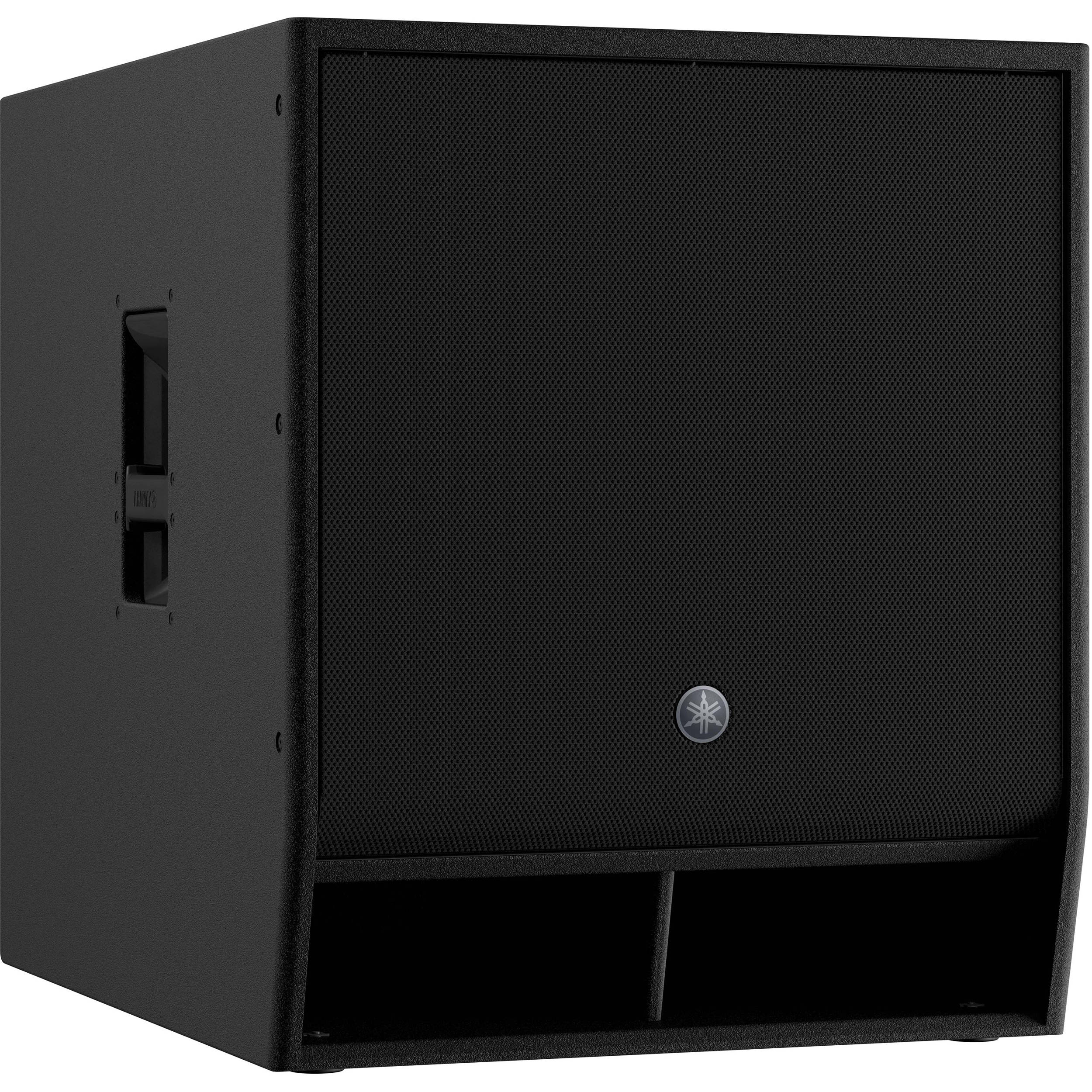

The Yamaha DXS18XLF offers thunderous low end, superb clarity, and best-in-class SPL performance. This powered bass-reflex subwoofer boasts a high-power 1,600-watt Class D amplifier, a 30Hz&ndash,150Hz frequency range, and can tackle any application you throw at it. Sophisticated DSP processing yields high-resolution sound with super-low latency, while optimized presets and an intuitive LCD display make dialing in your settings a piece of cake. This sub employs a lightweight, yet durable, plywood cabinet with a premium-grade polyurea coating. The DXS18XLF is a must-have for completing your full-range DZR system.

Sophisticated DSP processing

Yamaha's D-XSUB LF processing gives you total command of your low end. Choose between a NORMAL mode that offers balanced low-frequency response and a BOOST mode that provides tighter, more focused bass with extra punch. Beyond that, XTENDED LF mode drops your low-end even lower, yielding chest-thumping low-frequencies that must be heard to be believed. Ensure a clean stage monitoring environment, thanks to the DXS18XLF's Cardioid Mode, which effectively decreases the sound pressure onstage while increasing the low-frequency output directed towards your audience. Despite all this powerful DSP, the DXS18XLF remains easy to use, thanks to optimized factory presets and an intuitive LCD screen.

Custom-designed transducer

The Yamaha DXS18XLF is loaded with a great-sounding, custom-designed transducer. Its durable die-cast aluminum frame and 4-inch voice coil deliver impressive bass response, even at cranked volumes. Experience extraordinary low-frequency linearity, thanks to the DXS18XLF's dual damper, which mitigates unwanted vibration during high-output situations.

Yamaha DXS15XLF Features:

• Powered subwoofer with 18&quot, LF driver
• A must-have for completing your full-range DZR system
• Boasts a high-power 1,600-watt Class D amplifier and 30Hz&ndash,150Hz frequency range
• D-XSUB LF processing gives you total command of your low end with NORMAL, BOOST, and XTENDED LF modes
• Cardioid Mode decreases stage volume while increasing the low-frequency output directed towards your audience
• Optimized factory presets and intuitive LCD screen make operation easy
• Great-sounding, custom-designed transducer
• Dual damper ensures extraordinary low-frequency linearity during high-output situations
• Lightweight, yet durable, plywood cabinet with a premium-grade polyurea coating

Tech Specs

• Powered/Unpowered:Powered
• LF Driver Size:18&quot, Cone, 4&quot, Voice Coil, Ferrite Magnet
• Power Rating:1230W Continuous
• Total Power:1600W Peak
• Inputs:2 x XLR-1/4&quot, combo
• Outputs:2 x XLR (thru/output)
• Other I/O:1 x USB Type A
• Frequency Range:30Hz-150hz (-10 dB)
• Maximum Peak SPL:136dB SPL @ 1m
• Signal Processing:EQ, Delay, Cardioid Mode, D-XSUB Processing
• Mounting Options:Floor, Pole Mount with 1.37&quot, (35mm) and M20 sockets
• Power Source:Standard IEC AC cable
• Enclosure Material:Plywood Cabinet with Polyurea Coating, Black Finish
• Height:25.9&quot, (with feet)
• Width:21.7&quot,
• Depth:28.3&quot,
• Weight:107.8 lbs.
