If you like your bass prominent and powerful, DXS Series high-output, powered subwoofers will ensure your bottom-heavy audio is heard loud and clear. Featuring high-efficiency Class-D amplifiers and a customized woofer housed in a sturdy plywood band-pass enclosure, DXS subwoofers are capable of delivering up to an impressive 1020W of distortion-free power with supreme clarity. The lineup features the acclaimed DXS18 and recently upgraded versions of the 15” and 12” models, the DXS15mkII and DXS12mkII, which have adopted technologies and features from the DXS18 for an added professional edge and boost in performance. All feature Yamaha's state-of-the-art DSP, protection functions, and flexible crossover control allowing for seamless compatibility with Yamaha's vast lineup of full-range speakers, and reliable management of your bottom end. We've worked tirelessly to develop subwoofers with this level of versatility, dependability, and power because for Yamaha, great bass is serious business. Make it your business too.

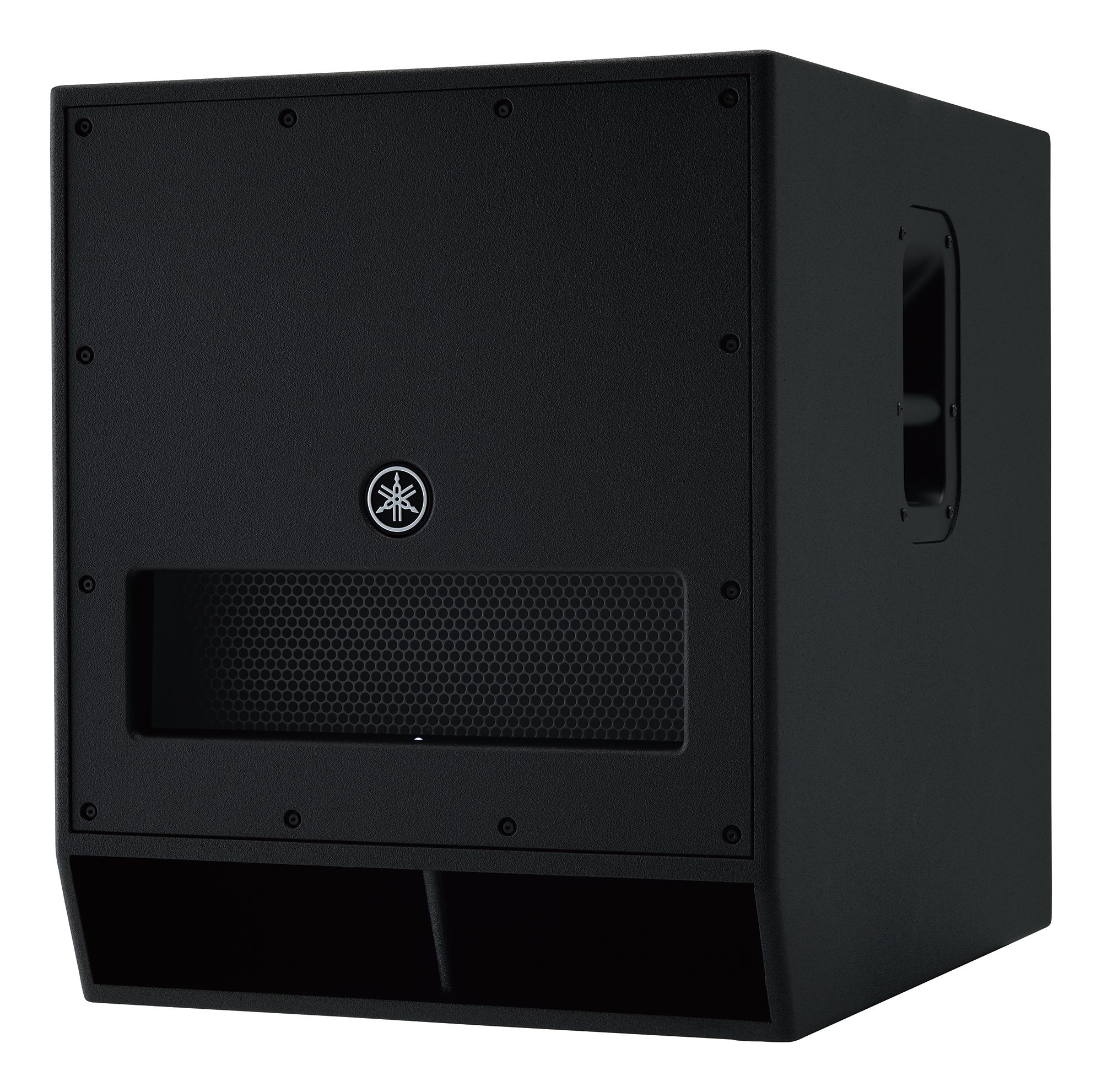

The DXS 18 achieves best in class SPL of up to 136dB and delivers the lowest frequency response (down to 32Hz) in the lineup. Housed in a sturdy band-pass enclosure, the custom built 18” driver with a large 4-inch voice coil and a Class-D amplifier delivers 1020W of power with exceptional clarity and accuracy.
DXS18
DXS15mkII
General specifications
Speaker type
18" Powered subwoofer, Band-pass type
15" powered subwoofer, Band-pass type
Frequency range (-10dB)
32Hz – 120Hz
40 Hz - 150 Hz
Components
LF
18" cone, Voice Coil:4"
15" cone, 2.5" voice coil
Output power
Dynamic:1020W / Continuous: 800W
Dynamic:1020W / Continuous: 800W
Maximum output level (1m; on axis)
136dB SPL
135dB SPL
I/O connectors
INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST)
INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST)
Processors
D-XSUB: BOOST, XTD LF, NORMAL
D-XSUB: BOOST, XTD LF, NORMAL
Cooling
Natural convection
Natural convection
Power requirements
100V – 240V, 50Hz/60Hz
100V – 240V, 50Hz/60Hz
Power consumption
100W
100W
Pole socket
35 mm (depth 80 mm) & M20 (threaded depth 25 mm)
35 mm (depth 80 mm) & M20 (threaded depth 25 mm)
Dimensions
W
563mm (22.2")
480 mm (18.90”)
H
683mm (26.8")
611 mm (24.06”)
D
721mm (28.4")
614 mm (24.17”)
Net weight
49.7kg (110lbs)
36.0 kg (79.4lbs)
Others
Material: Plywood (LINE-X®, Black)
Material, Finish, Color: Meranti Plywood, Durable Polyurea Coating, Black
