4-track Portable Recorder for DSLR
• Two XLR mic inputs with phantom power
• 4-track recording and Dual Recording modes
• Mounts directly to camera with built-in tripod hardware
4-track Recorder/Mixer for Production Audio
DR-60DMKII

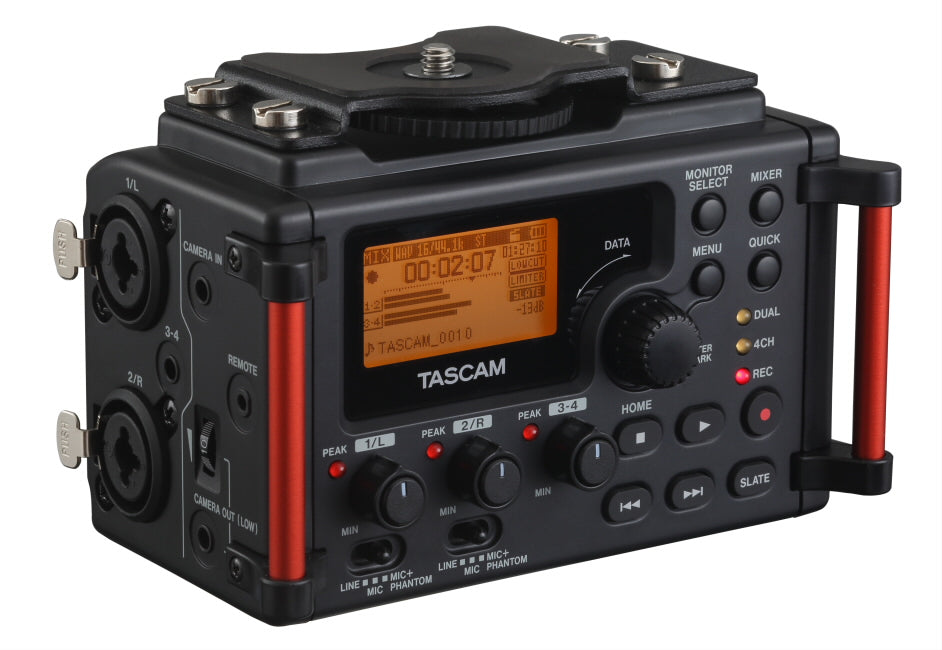

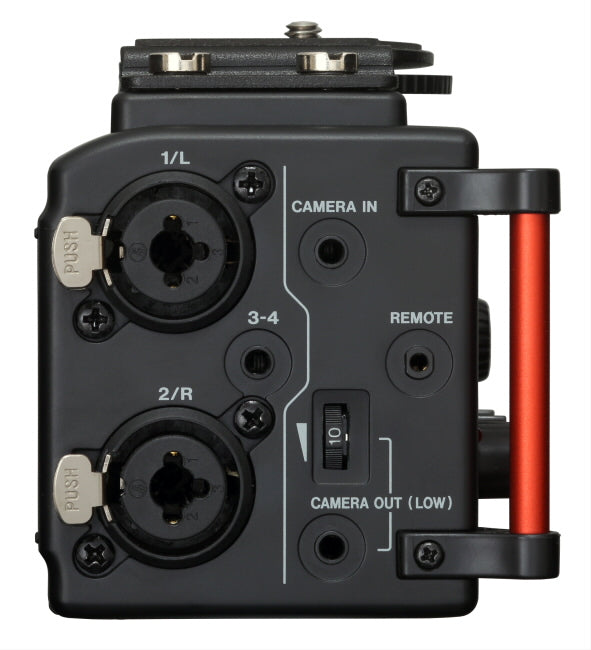

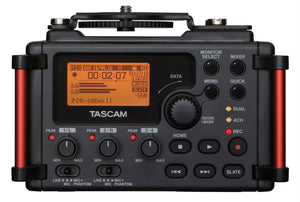

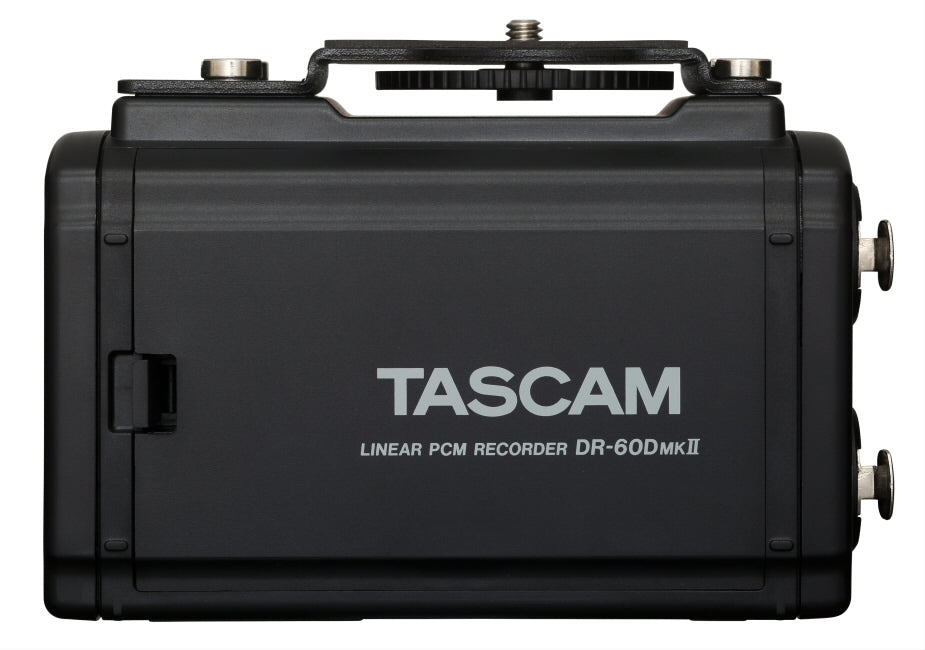

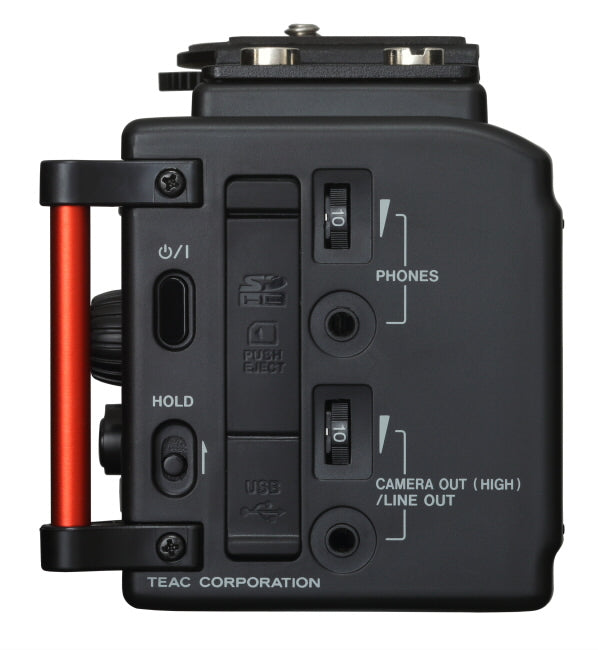

Portable Recorder Designed for DSLR Filmmakers
TASCAM's DR-60DmkII, an update of the award winning DR-60D, is the audio recording solution for on-set filmmakers and videographers. The streamlined design fits perfectly under a DSLR camera rig, without relying on bulky recorders or the limited audio quality of the camera’s microphone in.
Features at a glance
- Record to SD/SDHC card (Up to 32GB)
- Simultaneously record up to 4 tracks
- Record Modes: MONO, STEREO, DUAL MONO, DUAL STEREO, 4-CHANNEL
- Recording format: 44.1/48/96kHz, 16 or 24-bit, WAV/BWF
- TASCAM HDDA microphone preamps wth 120dB EIN and 64dB of gain
- Recording levels can be adjusted independently for the 1/L, 2/R and 3-4 inputs
- Two combo XLR/TRS inputs support +4dBu mic/line level input
- Phantom power to channels 1/2 (24V or 48VDC on XLRF)
- Plug-in power and high-output mic input supported on inputs 3-4
- CAMERA OUT connector for output from the DR-60DmkII mixer (adjustable gain)
- CAMERA IN connector for sound monitoring from the camera
- Independent adjustable LINE OUT and HEADPHONE jacks for high-quality sound output
- 50mW/ch headphone amplifier
- Tripod mounting socket (bottom) and mounting screw attachment (top)
- Handles protect the screen and can be used to attach a shoulder strap
- Soft-Touch Rubber Keys for silent operation
- HOLD switch to prevent accidental operation
- QUICK button feature for easy access to various functions
- 128x64 pixel LCD with backlight
- USB 2.0 connection for high-speed transferring of files
- Mini USB cable included
- Operates on 4-AA batteries, an AC adapter (sold separately) or USB bus power
- Can extend battery life with BP-6AA battery pack (sold separately)
- Dedicated remote control jack for the wired RC-10 remote control or RC-3F footswitch (both sold separately)
- Internal mixer: PAN and LEVEL controls
- Low cut filter (40/80/120Hz)
- Limiter (1/L and 2/R can be selected for linked operation)
- Delay function for microphone distance adjustment (up to 150ms)
- M-S decode functionSlate tone generator (AUTO/MANUAL)
- Selectable duration of slate tone from four positions (0.5/1/2/3 sec, when auto-generated)
- Selectable slate tone generation. (3 positions: OFF/HEAD/HEAD+TAIL, when auto-generated)
- File naming format can be set to use a user-defined word or date
- Dual-recording function allows two files to be recorded simultaneously at different levels
- Auto-record function can automatically start and stop recording at set leve
- lPre-recording function allows the unit to record a 2 second sound buffer before recording is activated
- Self-timer function for solo recording
- New file starts recording automatically without interruption when maximum file size is reached
- Track incrementing function allows a recording to be split by creating a new file when desired
- Jump back and play function
- Equalizer function for playback, and level alignment function to enhance the perceived overall sound pressure
- Resume function to memorize the playback position before the unit is turned off
- MARK function up to 99 points per audio track
- DIVIDE function
-
Spec description
Recording media SD card (64MB to 2GB), SDHC card (4GB to 32GB) Recording format WAV 44.1k/48k/96k Hz, 16/24-bit BWF 44.1k/48k/96k Hz, 16/24-bit Number of channels 4-channel (stereo x2) Analog audio input 1/L, 2/R connectors Connector XLR-3-31 (1:GND, 2:HOT, 3:COLD) / 1/4" (6.3mm) TRS standard jack Set to "MIC / MIC+PHANTOM" Input impedance 2kΩ Phantom power 48V ±4V (10mA/CH) / 24V ±4V (10mA/CH) Maximum input level 0dBu Minimum input level –72dBu MIC input gain TRIM MAX LOW +11dB MID +36dB HIGH +52dB HIGH+PLUS +64dB Set to “LINE” Input impedance 10kΩ or more Standard input level +4dBu Maximum input level +24dBu 3-4 connector Connector 1/8" (3.5mm) stereo mini jack (this connector can be supplied plug-in power) Input impedance 10kΩ Maximum input level +10dBV Minimum input level –50dBV MIC input gain TRIM MAX LOW +3dB HIGH +26dB HI + PLUS +38dB CAMERA IN connector Connector 1/8" (3.5mm) stereo mini jack Input impedance 10kΩ Standard input level –10dBV Maximum input level +6dBV Analog audio output CAMERA OUT connector Connector 1/8" (3.5mm) stereo mini jack Output impedance 200Ω Standard output level –50dBV Maximum output level –30dBV LINE OUT connector Connector 1/8" (3.5mm) stereo mini jack Output impedance 200Ω Standard output level –10dBV Maximum output level +10dBV PHONES connector Connector 1/8" (3.5mm) stereo mini jack Maximum output level 50mW + 50mW USB Connector Mini-B type Format USB2.0 HIGH SPEED mass storage class REMOTE Connector 2.5mm TRS jack Power Four AA batteries (Alkaline or NI-MH),
USB bus power,
Dedicated AC adapter (TASCAM PS-P515U, sold separately),
Dedicated external battery pack (TASCAM BP-6AA, sold separately)Power consumption 5.4W Continuous operation time 2ch WAV, 44.1kHz, 16-bit Rec, *All times are approximate. DR-60D alone Alkaline batteries (EVOLTA) 2-½ hours (Phantom ON)
4-½ hours (Phantom OFF)NI-MH batteries (eneloop) 3-¼ hours (Phantom ON)
5 hours (Phantom OFF)NI-MH batteries (eneloop pro) 3-¾ hours (Phantom ON)
6 hours (Phantom OFF)DR-60D with BP-6AA Alkaline batteries (EVOLTA) 5-½ hours (Phantom ON)
10-½ hours (Phantom OFF)NI-MH batteries (eneloop) 7-½ hours (Phantom ON)
12 hours (Phantom OFF)NI-MH batteries (eneloop pro) 9-½ hours (Phantom ON)
14-½ hours (Phantom OFF)Dimensions (W×H×D) 5.2" × 3.7" × 3.1" / 133 × 93.2 × 78 mm (with the top adapter attached) Weight 1.12 lbs. / 510 g (excluding batteries) Operating temperature 32˚F to 104˚F / 0˚C to 40˚C Standard accessories USB cable, warranty card, Owner's manual Computer compatibility Windows OS Windows XP, Windows Vista, Windows 7, Windows 8 CPU Pentium 300MHz or more RAM 128MB or more USB recommended: USB2.0 Macintosh OS Mac OS X Jaguar (V10.2), Mac OS X Panther (V10.3), Mac OS X Tiger (V10.4),
Mac OS X Leopard (V10.5), Mac OS X Snow Leopard(V10.6.8), OS X Lion(V10.7),
OS X Mountain Lion(V10.8)CPU Power PC, iMac, G3, G4 266MHz or more 64MB or more USB recommended: USB2.0 Audio performance Frequency response 20Hz to 20kHz +0.5/–2dB (LINE IN or MIC IN to LINE OUT, Fs 44.1k/48k Hz, JEITA)
20Hz to 40kHz +0.5/–3dB(LINE IN or MIC IN to LINE OUT, Fs 96kHz, JEITA)Distortion 0.02% or less (LINE IN or MIC IN to LINE OUT Fs 44.1k/48k/96k Hz, JEITA) S/N ratio 92dB or more (LINE IN or MIC IN to LINE OUT Fs 44.1k/48k/96k Hz, JEITA) Equivalent input noise –120dBu or more Recording Duration
The table below shows the maximum recording time on SD/SDHC cards of different capacities for different file formats for recording.
File format (recording setting) SD/SDHC card capacity (hours:mintes) 1GB 2GB 4GB 8GB WAV/BWF 16-bit (STEREO) 44.1kHz 1:41 3:22 6:44 13:28 48kHz 1:33 3:06 6:12 12:24 96kHz 0:46 1:33 3:06 6:12 WAV/BWF 24 bit (STEREO) 44.1kHz 1:07 2:15 4:30 9:00 48kHz 1:02 2:04 4:08 8:16 96kHz 0:31 1:02 2:04 4:08 - The recording times shown above are estimates. They might differ depending on the SD/SDHC card in use.
- The recording times shown above are not continuous recording times, but rather they are the total possible recording times for the SD/SDHC card.
- If recorded in mono in WAV files, the maximum recording time will be double the figures above.
- For dual and 4-channel recording in WAV/BWF format, the recording times are about half those shown above.
DR-60DMKII Tested media List
Last update:August 20, 2015 Maker Series Model Capacity Result SanDisk SanDisk Extreme PRO®
SDHC™ UHS-I Memory Card (U3, Class10)SDSDXPA-032G-JU3 32GB OK SDSDXPA-016G-JU3 16GB OK SanDisk Extreme®
SDHC™ UHS-I Memory Card (U3, Class10)SDSDXL-032G-JU3 32GB OK SanDisk®
SDHC™ Memory Card (CLASS4)SDSDB-008G-J01 8GB OK Maker Series Model Capacity Result SanDisk SanDisk Extreme PRO®
SDHC™ UHS-II Memory CardSDSDXPB-032G-J35 32GB OK SDSDXPB-016G-J35 16GB OK SanDisk Extreme PRO®
SDHC™ UHS-I Memory Card (Class10)SDSDXPA-016G-J35N 16GB OK SanDisk Extreme Pro®
SDHC™UHS-I Card (Class10)SDSDXPA-032G-J35 32GB OK SDSDXPA-016G-J35 16GB OK SanDisk Extreme®
SDHC™ UHS-I Card (Class10)SDSDXS-032G-J35 32GB OK SDSDXS-016G-J35 16GB OK SDSDXS-008G-J35 8GB OK SanDisk Extreme ®
SDHC™ Card (Class10)SDSDX3-008G-J31A 8GB OK SanDisk Extreme ®
SDHC™ Card (Class6)SDSDX3-4096-J21N 4GB OK SanDisk Ultra® PLUS
SDHC™ UHS-I Memory Cards (Class10)SDSDUP-016G-J35 16GB OK SDSDUP-008G-J35 8GB OK SanDisk Standard SDHC™ Card (Class4) SDSDB-4096-J95A 4GB OK Lexar Lexar® Professional 600x
SDHC™UHS-I Card (Class10)LSD32GCTBJP600 32GB OK LSD16GCTBJP600 16GB OK Lexar® Professional 400x
SDHC™UHS-I Card (Class10)LSD32GCTBJP400 32GB OK LSD16GCTBJP400 16GB OK Lexar® Platinum II 200x
SDHC™ UHS-I Card (Class10)LSD8GBBBJP200C10 8GB OK Lexar® SD™/SDHC™ Card
(MULTI USE)LSD4GBACJP 4GB OK LSD2GBACJP 2GB OK Panasonic SDHC (UHS-I / Class10)
R:90MB/s W:45MB/sRP-SDUC32GJK 32GB OK SDHC™ Card
(Class6) R:20MB/sRP-SDLC32GJK 32GB OK RP-SDLC16GJK 16GB OK RP-SDLC08GJK 8GB OK RP-SDLC04GJK 4GB OK
/
