DENON PRO DN500-CB

The DN-500CB is a highly-versatile yet affordable media player that excels in applications where users bring their own devices for education, instruction or entertainment. The DN-500CB plays not only CD media but provides Bluetooth connectivity, USB playback and a 3.5mm AUX input for connecting virtually any other playback device.

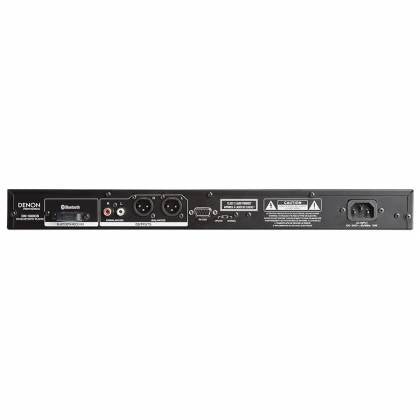

Like all 500 series Denon Professional media players, the DN-500CB offers an RS-232c port on the rear for control via serial command and the serial command protocol guide is available for download.

Perfect for retail, education, and hotel/conference applications, this player offers features normally found on higher-priced players, such as Bluetooth Pairing, Front Panel Lock, Power On Play, direct access to tracks, memory of settings after loss of power, and balanced XLR output.

• Bluetooth 5.0 pairing to (8) devices
• Slot-loading CD transport
• USB host port for file playback
• 10-button direct track access
• 3.5mm AUX input for playback from portable players
• RS-232c control capable
• Compact IR remote control included
• Balanced (XLR) and unbalanced (RCA) outputs

• Audio Specifications

  • Audio channels:

    • 2 channels / stereo



  • Frequency response:

    • 10 - 20,000 Hz, +/- 1.0dB



  • > 85dB (10- 20,000 Hz A-weighted)

    • Dynamic range:



  • Signal to Noise ratio:

    • > 90dB (1kHz, 0db, A-weighted)



  • Channel separation:

    • > 80dB (1kHz, 0dB, A-weighted)



  • Total Harmonic Distortion (THD):

    • < 0.01% (1kHz, 0dB, A-weighted)



• Bluetooth Specifications

  • Output class:

    • Class C



  • Bluetooth version:

    • 5.0



  • Support profile:

    • A2DP, AVRCP (1.3/1.4)



  • Support codecs:

    • SBC, MP3, AAC, aptX



• Outputs

  • XLR (balanced)

    • 2.0Vrms



  • RCA (unbalanced)

    • +4dBu



• Remote Control

  • IR Remote

    • Infrared protocol / NEC format

    • Transmit output level:

      • >200mVp-p



  • Serial Remote

    • D-sub 9-pin female RS-232C

    • Mode:

      • Full duplex



    • Baud rate:

      • 9600/38400 b/s (selectable in the menu)



    • Data:

      • 8bits



    • Start bit:

      • 1bit



    • Stop bit:

      • 1bit



    • Parity:

      • none



    • Flow control:

      • none



• Audio File / SIGNAL

  • Sample rate:

    • CD-DA, Audio file 44.1kHz



  • Word length:

    • CD-DA, Audio file 16-bit



  • File format:

    • Audio file WAV/MP3/AAC



  • Bit rate:

    • MP3, AAC, CBR/VBR ST/Mono 32~320kps



  • ID3 tag:

    • MP3 V1.x~2.4



• CD Drive

  • Media

    • File system:

      • CD-DA (CD-TEXT), CD-ROM (ISO9660)



    • Disc:

      • CD, CD-R



• USB Storage Device

  • File system:

    • FAT 16/32



  • Media type:

    • Flash/ HDD



• Environmental

  • Operating temperature:

    • 40° - 95° F (5° - 35° C)



  • Operating humidity:

    • 25 ~ 85% non-condensing



• General

  • Power

    • Power requirements:

      • 100-230 VAC



    • Power consumption:

      • <30W



  • LCD Display:

    • LCD 2 lines, 16 characters x 2 lines LCM display



  • Dimensions:

    • 19" x 13.7" x 1.73" (483 x 347 x 44mm)



  • Weight:

    • 6.4 lbs (2.92kg)
