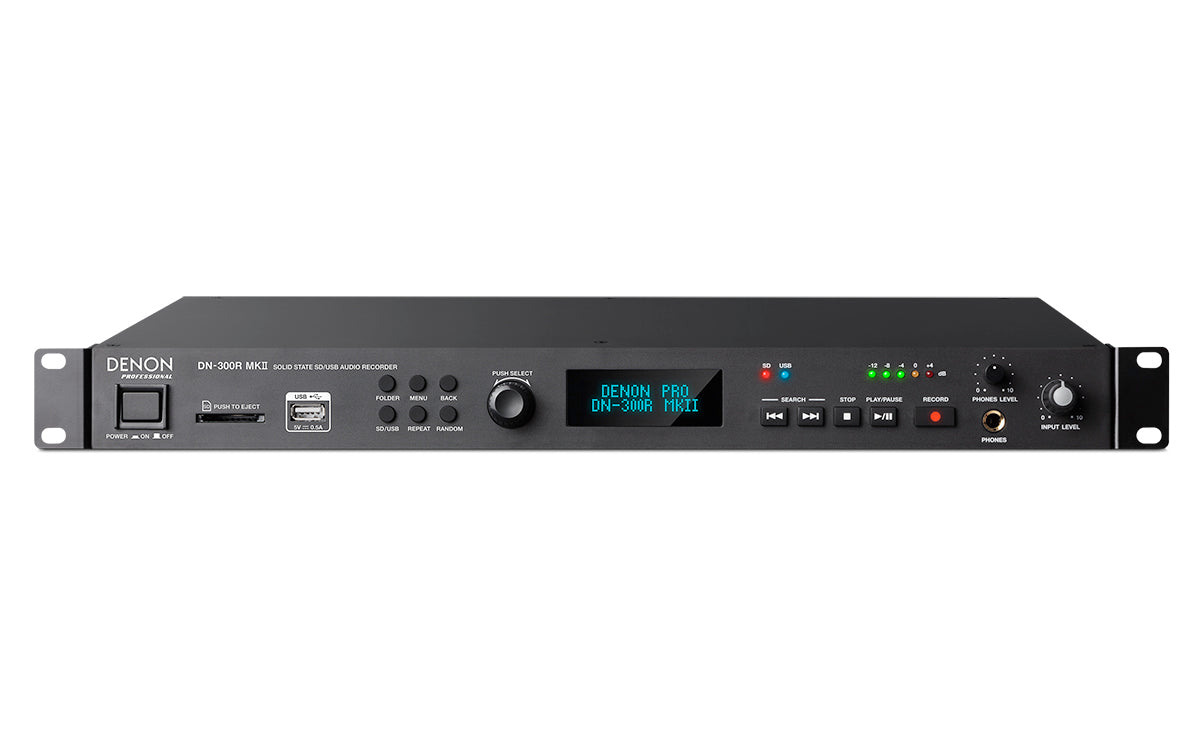

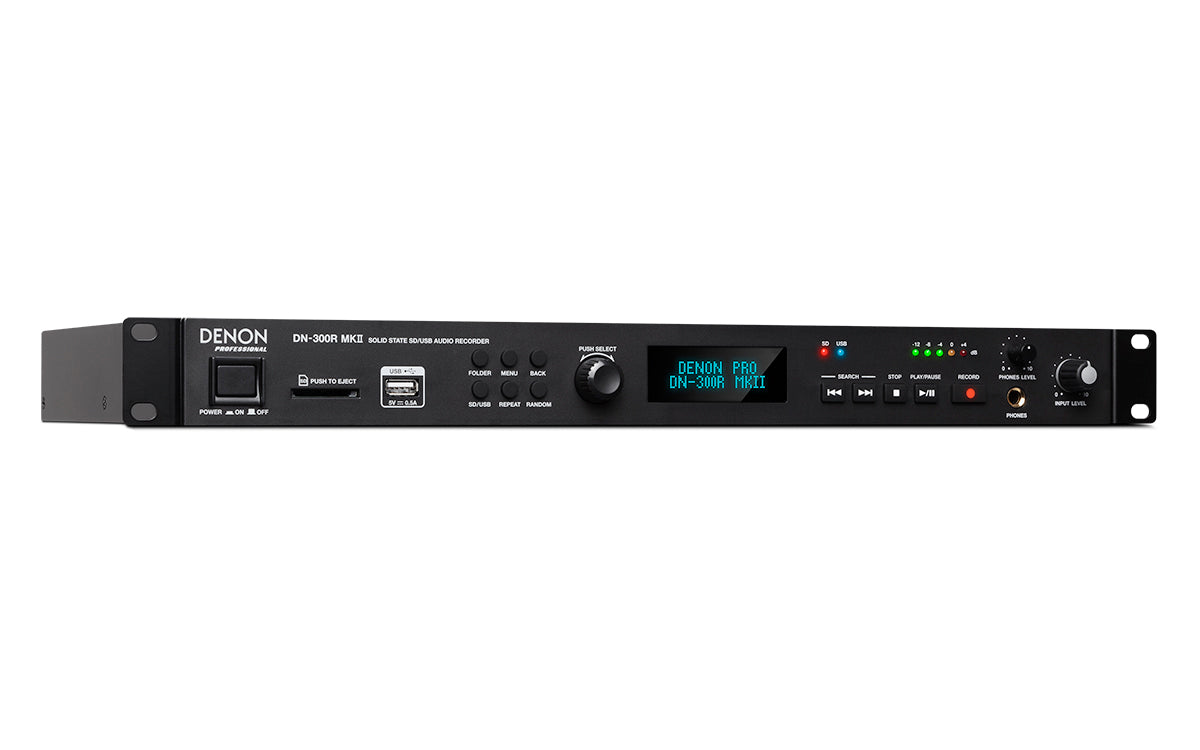

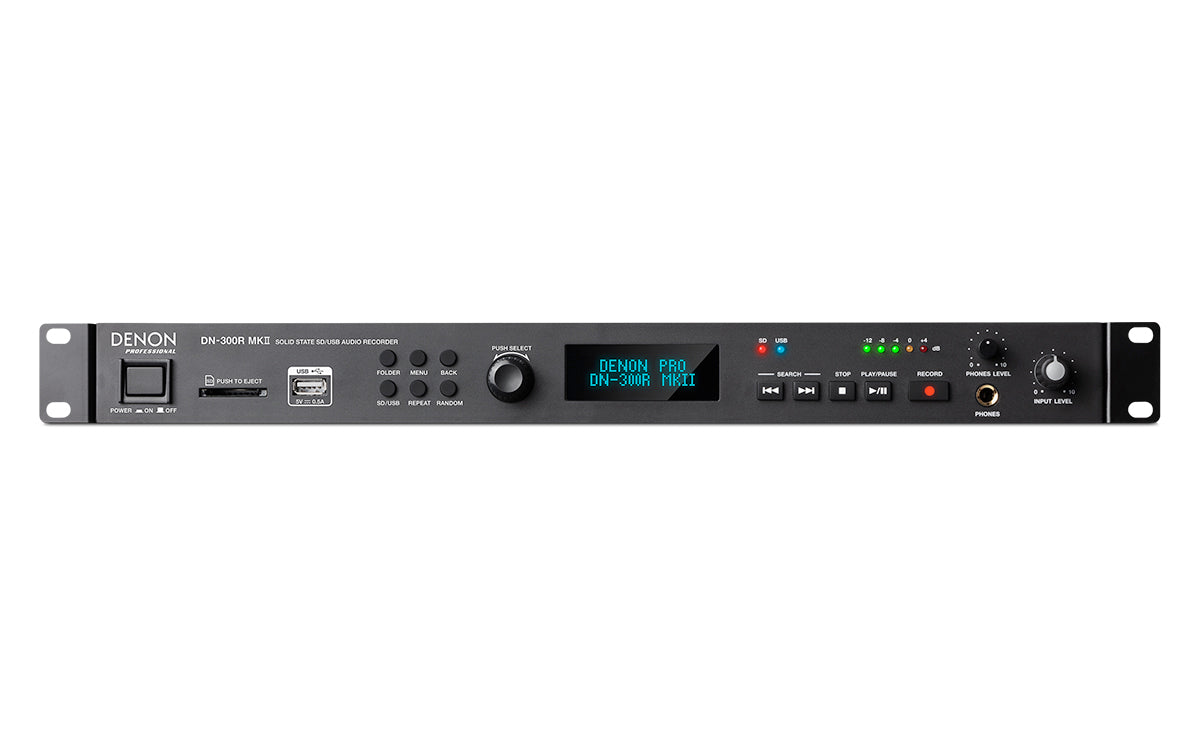

The DN-300RMKII records to both SD and USB media simultaneously – perfect for recording conferences where the client needs a copy of the recording after the event. With outstanding ease-of-use and simple operation, anyone can use the DN-300RMKII right out of the box and record to SD, USB or both. Utilizing Dual Mono or Dual Stereo modes, the ability to record a second mono or stereo file at -10dB on the same media is supported - even when recording to both SD and USB at the same time. The DN-300RMKII is exactly what the market is looking for in terms of a simple but high-quality recording solution for commercial applications. The DN-300RMKII gives installers and contractors the flexibility and convenience they need for total commercial recording capability.
- Records WAV and Mp3 files to SD and USB media simultaneously
- Simple and easy to use
- Powers-up in record-ready mode
- Dual Stereo & Dual Mono modes for recording -10dB safety tracks on the same media
- Balanced and unbalanced inputs and outputs
- Compact 1RU design
-
Digital Audio System
-
System:
- Solid-state SD/USB audio recorder/player
-
Compatible Media (FAT16, FAT32)
- USB Device (mass storage class)
- SD/SDHC
- SDXC
-
Supported File Formats
-
MP3
-
Sampling frequency:
- 44.1 kHz
-
Bit rate:
- 192, 256 kbps (recording); 64 - 320 kbps and VBR (playback)
-
Format:
- MPEG1 Audio Layer 3
-
File extension:
- .mp3
-
-
WAV
-
Sampling frequency:
- 44.1, 48 kHz
-
Bit depth:
- 16-bit (44.1 kHz), 24-bit (48 kHz)
-
Format:
- Waveform Audio File Format
-
File extension:
- .wav
-
-
-
Number of Channels:
- 2 channels / stereo
-
Audio Frequency Range:
- 10 - 20 kHz (± 1.0dB recording, ± 0.8 dB playback)
-
Signal-to-Noise Ratio
-
Recording:
- > 95 dB (1 kHz, 0dB A-weighted)
-
Playback:
- > 95 dB (1 kHz, 0dB A-weighted)
-
-
Channel Separation
-
Recording:
- > 80 dB (1 kHz, 0dB A-weighted)
-
Playback:
- > 90 dB (1 kHz, 0dB A-weighted)
-
-
Wow and Flutter:
- < 0.001 %
-
Distortion
-
Recording:
- < 0.008 %
-
Playback:
- < 0.006 %
-
-
Total Harmonic Distortion:
- < 0.01% (1 kHz, 0dB A-weighted)
-
-
Inputs
-
Balanced XLR
-
Nominal level:
- +4 dBu ± 1 dBu
-
Minimum level:
- - 40 dBu
-
Maximum level:
- 20 dBu ± 1 dBu
-
Input impedance:
- 18 kΩ
-
-
-
Outputs
-
Balanced XLR
-
Nominal level:
- +4dBu ± 1 dBu
-
Maximum output level:
- +20 dBu ± 1 dBu
-
Output impedance:
- 600 Ω ± 10%
-
-
Unbalanced RCA
-
Nominal level:
- -10 dBV ± 2 dBV
-
Minimum output level:
- 6 dBV ± 2 dBV
-
-
-

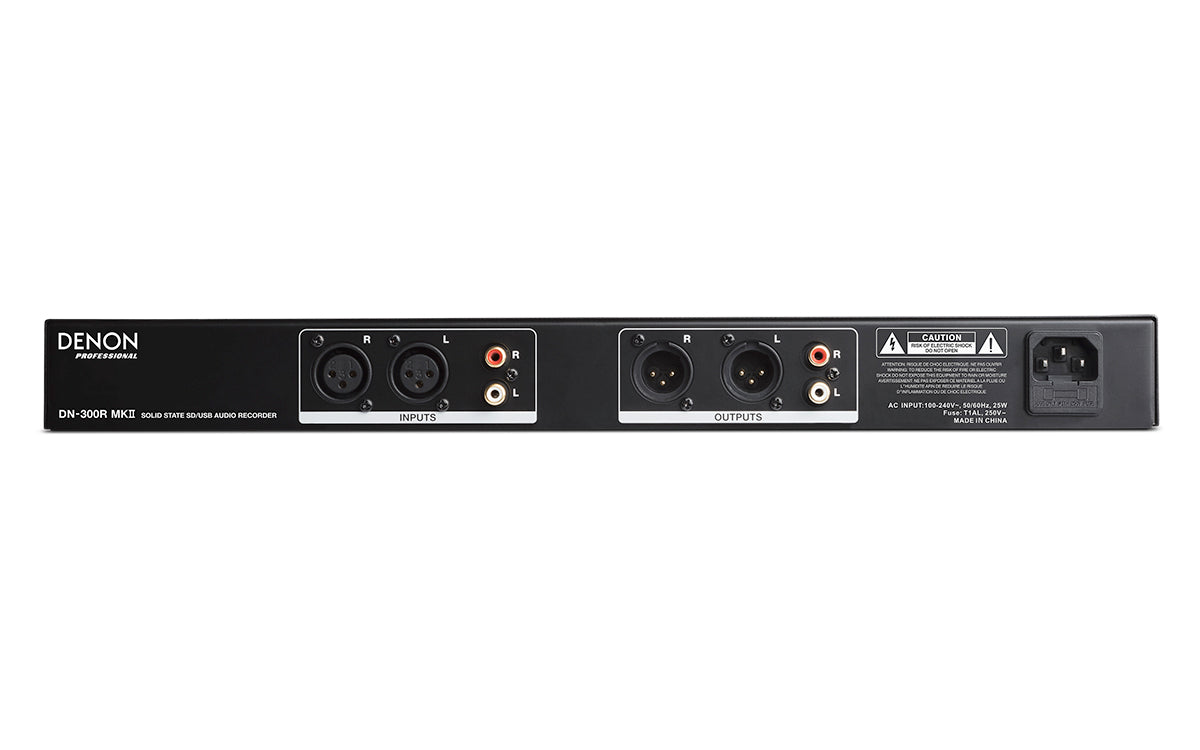

Connectors
- (2) XLR outputs
- (1) 1/4" (6.35mm) headphone output
- (1) RCA stereo output pair
- (2) XLR inputs
- (1) RCA stereo input pair
- (1) USB port
- (1) SD card slot
- (1) IEC AC power input
-
Power
-
Connection:
- IEC
-
Input Voltage:
- 100 - 240 V~, 50/60 Hz
-
-
Dimensions (width x depth x height):
- 19.0" x 10.92" x 1.72" (484 x 277 x 44mm)
-
Weight:
- 6.6 lbs (3 kg)
