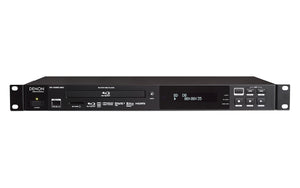

DENON PRO DN-500BDMKII - Blu-Ray, DVD and CD/SD/USB Player

DENON PROFESSIONAL’S VERSATILE DN-500BDMKII BLU-RAY PLAYER

The Denon Professional DN-500BDMKII Blu-ray disc and media player is a compact, high performance unit that handles all popular optical video and audio CD playback formats for unrivaled capability from a single disc playback device. For even more versatility, front-loading SD and USB ports deliver access to video, audio and picture files such as AVI, MOV, MP4, MP3, WAV, FLAC, GIF, JPEG, PNG, and more.

The DN-500BDMKII offers a tremendous amount of performance and flexibility in a space-saving single rack unit (1RU) chassis. It provides the wide range of connection and control capabilities that are essential to the professional user, making it ideal for use in corporate A/V, education, theaters, house of worship, and more. These include RS-232C and IP controllability and XLR balanced audio outputs. The DN-500BD also has discrete 7.1 channel analog outputs for simple connection to powered speakers or signal management devices.

The Denon Professional DN-500BDMKII will play virtually every Blu-ray, DVD, and audio CD format, making it easy to utilize multiple disc formats within a system. Supported formats include BD25, BD50, BD-RE, DVD, DVD+R, DVD+RW, DVD-R, DVD-RW and Audio CD (CD-R, CD-RW), DTS Music Disc, and HDCD. Using the built-in LAN port, users may optionally access additional content via BD Live.

In addition to its extremely high performance and wide range of format playback capabilities, the DN-500BDMKII anticipates your requirements and operational patterns by providing features that maximize the unit’s ease of use.

The Denon Professional DN-500BDMKII combines no-compromise performance, wide-ranging connection and control capability, and compatibility with virtually every disc and digital file format there is—all in a compact single rack space unit. Its unique combination of performance, versatility and compact size is ideally suited to the professional user.

• Plays Blu-Ray, DVD, CD and files from SD/USB media
• Supported Blu-Ray disc formats: BD25, BD50, BD-RE, BD-ROM and BD-R
• Supported DVD formats: DVD, DVD+R, DVD+RW and DVD-RW
• Supported audio disc formats: CD, CD-R, CD-RW, DTS Music Disc (DTS Audio CD, 5.1 Music Disc), HDCD, Super Video CD (SVCD) and Video CD (VCD)
• SD/USB supported video, audio and picture file formats: .3gp, .asf, .avi, .dat, .divx, .mkv, .mov, .mp4, .mpg, .m2ts, .ogm, .rmvb, .tp, .ts, .wmv, .ass, .smi, .srt, .ssa, .sub, .ape, .flac, .m4a (AAC), .mp3, .wav, .gif, .jpg (or .jpeg) and .png
• USB/SD file systems: FAT16, FAT32 and NTFS
• Discrete 7.1ch analog audio output
• XLR balanced audio output
• RS-232C and IP control capability
• Power-on Play button eliminates extra steps, and provides simplified, ultra-fast startup
• Panel lock and IR remote lock functions prevent unwanted or accidental operation
• Improved, easy-to-read OLED display
• OSD (On Screen Display) hiding mode eliminates unwanted menu items and disc transport icons
• Transport controls located conveniently on the front panel
• Repeat mode offers an uninterrupted playback loop
• Occupies only a single rack space (1RU)

• Digital System

  • System

    • Digital media player (Blu-ray Disc, DVD, CD, SD, USB device [mass storage class]) AVCHD playback format



  • Supported Disc Formats

    • Blu-ray Disc: BD25, BD50, BD-ROM, BD-R, BD-RE

      • BD25, BD50, BD-ROM, BD-R, BD-RE



    • DVD:

      • DVD, DVD+R, DVD-R, DVD+RW, DVD-RW



    • CD:

      • CD, CD-R, CD-RW, DTS Music Disc (DTS Audio CD, 5.1 Music Disc), HDCD, Super Video CD (SVCD), Video CD (VCD)



  • Supported File Formats

    • Video:

      • .3gp, .asf, .avi, .dat, .divx, .mkv, .mov, .mp4, .mpg, .m2ts, .ogm, .rmvb, .tp, .ts, .wmv



    • Subtitles:

      • .ass, .smi, .srt, .ssa, .sub



    • Audio:

      • .ape, .flac, .m4a (AAC), .mp3, .wav, .wma



    • Picture:

      • .gif, .jpg (or .jpeg), .png





  • Supported File Systems

    • FAT16, FAT32, NTFS
    • SD card with 128GB total capacity
    • USB drive (mass storage class) with 2 TB total capacity



  • Video

    • Resolutions

      • Auto, 480i/576i, 480p/576p, 720p, 1080i, 1080p



    • Aspect Ratios

      • 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox



    • System

      • NTSC, PAL, Multi (if supported by TV)



    • HDMI Color Space: 4

      • RGB PC Level, RGB Video Level, YCbCr (4:4:4), YCbCr 4:2:2



  • Decoding

    • Video:

      • DivX 3, 4, 5, 6; DivX HD; MPEG-1; MPEG-2; MPEG-4; MPEG-4 AVC (H.264); VC-1 (Windows Media Video); Xvid



    • Audio:

      • AAC; Dolby Digital; Dolby Digital Plus; Dolby TrueHD; DTS Digital Surround; DTS-HD; WMA



  • Audio

    • Analog Outputs

      • Output Level (balanced XLR):

        • +4 dBu = +1.786 dBV



      • Output Level (unbalanced RCA):

        • +6 dBV



    • Digital Output

      • Output Level (coaxial):

        • 0.5V, 75Ω



      • Signal Format:

        • AES/EBU



    • Surround Audio

      • DTS-Master Audio, DTS-HD High Resolution Audio, DTS Digital Surround, Dolby TrueHD, Dolby Digital (AC-3), Dolby Digital Plus (7.1ch)



    • Frequency Response:

      • 20 Hz – 20 kHz (+0.5 dB)



    • Signal-to-Noise Ratio:

      • > 100 dB (A-weighted)



    • Total Harmonic Distortion:

      • < 0.05%



    • Dynamic Range:

      • > 100 dB (A-weighted)



    • Headroom:

      • 6 dB



    • Channel Separation:

      • > 90 dB



  • Outputs

    • (2) XLR audio outputs (L/R, balanced)
    • (2) RCA audio outputs (L/R, unbalanced)
    • (8) RCA audio outputs (7.1 surround sound)
    • (1) Coaxial digital audio/visual output
    • (1) HDMI audio/visual output
    • (1) RJ-45 LAN port
    • (1) 9-pin D-Sub female RS-232C port
    • (1) IEC power connection



  • Communication

    • Remote Control

      • Infrared protocol, > 200 mV transmission output level



    • Serial Remote

      • Connector:

        • 9-pin D-Sub female, RS-232C



      • Mode:

        • Full duplex



      • Baud Rate:

        • 9600 or 38400 bps (selectable)



    • Ethernet

      • Connector:

        • LAN port



      • Standards:

        • Ethernet (10 Mbps), Fast Ethernet (100 Mbps)



    • Environmental Conditions

      • Operating temperature:

        • 41 – 95 °F (5 – 35 °C)



      • Operating humidity:

        • 25 – 85%, no condensation

    • General

      • Power

        • Connection:

          • IEC



        • Requirement:

          • 100–240 VAC, 50/60 Hz



        • Consumption:

          • 15 W typical, < 0.5 W standby



      • Dimensions (width x depth x height, with rack ears)

        • 19.00” x 10.75” x 1.73” (483 mm x 273 mm x 44 mm)



      • Weight (with rack ears)

        • 5.9 lbs. (2.7 kg)
