PIONEER DJ DDJ-RZX - Audio video DJ Controler (Rekordbox)*Discontinued*

The Pioneer DDJ-RZX DJ controller is the new flagship of the extensive DDJ range from leading DJ kit manufacturer - Pioneer DJ. Boasting three 7-inch touch screens and traits from the new NXS2 range the DDJ-RZX also offers native control over the new video Rekordbox DJ Plus Pack.

The DDJ-RZX has been designed to offer users of Pioneer Rekordbox DJ platform the ultimate hands on control over the key features of the software with a premium four channel mixer and Sound Colour FX lifted straight from the new DJM-900 NXS2.

The inclusion of three, high resolution, seven inch touchscreens provides sharp video previewing and monitoring while using Rekordbox DJ new video plus pack with the Pioneer DDJ-RZX. We should point out that the main video output is handled by your MAC or PC and you"ll need a well spec computer to handle video mixing an Intel i7 running at 2.5 GHz or higher is going to be essential.

Rekordbox Video features 20 transition effects for smooth video crossfades with control via Touch FX enabling the user to trace on the display's X and Y axis. Slideshows can be created in advance or live and there's Camera FX to ad a live feed from a digital camera connected to the source computer.

In addition to the provision of video mixing the screens also provide a wealth of information for those using the DDJ-RZX as a traditional DJ controller with Rekordbox DJ and the central screen can be used to visually mix with waveforms (in a similar manner to the display offered by the new TOUR range). Audio quality benefits from 96kHz/32-bit digital to analogue conversion handled by an Asahi Kasai converter and the on board USB soundcard delivers powerful high quality sound.

The Pioneer DDJ-RZX offers a familiar layout for users of Pioneer DJ CDJ/DJM range with full size CDJ platters, there"s a new crossfader on board which is capable of in excess of 10 million movements and the dual USB ports make DJ transitions seamless.

The main features of the Pioneer DDJ-RZX include:

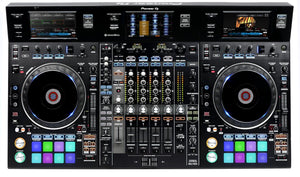

Layout mirrors a CDJ set-up

Mix audio and videos instinctively with features inherited from the CDJ and DJM series including large jog wheels and multicoloured tactile Performance Pads. The 4-channel controller has an independent sampler section for intuitive control of Beat Sync, Quantize and Trim on the sampler.

High-quality sound

Hear the true sound of your tracks thanks to AC inlets for reduced cable contact resistance and a high performance 96 kHz/32-bit D/A converter made by Asahi Kasai. Plus, low jitter clock IC and the 96 kHz/24-bit USB sound card ensure powerful, high-quality sound.

Three touch screens for complete control

Take your performances to the next level by using the three 7-inch touch screens to preview/monitor video and image files, and to trigger Beat FX and Release FX. Plus, Touch FX lets you add FX and adjust parameters by tracing on the x and y axes on the display. Use deck display mode to check track information such as titles, BPM and key. And use mixer display mode to see enlarged waveforms for each track, as well as loop and Hot Cue information. Create instant doubles by simply touching the display.

Professional Mic section

Hear voices loud and clear thanks to two XLR combo input jacks for Mics. Control the output with the 3-band Mic EQ and use the four Mic FX, Echo, Reverb, Pitch and V Tune to add texture and to tune each voice.

Extensive FX unit

Add the following FX to your tracks from rekordbox dj or external players and sound sources.

• Combo FX control Sound Colour FX and Beat FX at the same time using the touch screens
• Sampler Repeat  change the length of a loop just by touching the display and apply Sound Colour FX when using the rekordbox dj sampler
• Sound Colour FX with sub parameter control use the studio-quality Sound Colour FX from the DJM-900NXS2 mixer including Sweep, Filter, Crush, Dub Echo, Noise and Space, and fine-tune them using sub parameter control
• Release FX exit complex FX patterns by selecting Vinyl Brake, Echo or Back Spin and twisting the dial

Other features

• Active Censor intuitively control the new Active Censor feature in rekordbox dj. Set in and out points and apply Reverse Roll, Trans, Echo or Vinyl Brake FX to disguise explicit words in tracks. The FX will then be heard whenever the track is played from rekordbox dj
• Three bundled licence keys comes with licence keys for rekordbox dj, rekordbox dvs and rekordbox video
• Newly developed crossfader highly durable and capable of over 10 million movements
• OSC sampler four oscillator sounds
• Dual USB port for smooth transitions between DJs
• Brushed aluminium faceplate high quality and professional design
• P-Lock fader cap locks fader knobs to prevent dropping

  Main Features

  P-LOCK Fader Cap	Yes
  Plug and Play	Yes
  Auto Standby	Yes
  Included DJ Software
  Software System Requirements	OS Windows: 10, 8.1, 7 (64-bit, the latest service pack) Mac OS X: 10.11, 10.10, 10.9 (Updated to the latest version) Minimum system requirements CPU: 2.5GHz dual-core InteL Core i5 or higher Memory: 8GB or more of RAM Hard Drive: 250MB or more of free space (not including space for storing music files, etc.) Display resolution: Resolution of 1280x768 or greater Recommended system requirements CPU: 2.2GHz quad-core Intel Core i7 or higher Memory: 16GB or more of RAM Hard Drive: 250MB or more of free space (not including space for storing music files, etc.) Display resolution: Resolution of 1280 x 768 or greater

  Specifications

  Width	945 mm
  Height	119.7 mm
  Depth	547 mm
  Weight	15.9 kg
  Soundcard	24 bit/96 kHz
  Frequency Range	20 - 20000 Hz
  Signal-to-Noise Ratio	116 dB
  Distortion	0.002 % (USB) 0.003 % (CD/LINE)
  Power Consumption	48 W
  Power Consumption (Standby)	0.4 W

  Performance Control

  Channels	4
  Deck Control	4 / Dual
  Trim knob	Yes
  Jog Wheel	202 mm durable aluminium jog wheel
  Feeling Adjust	Yes
  Pad FX	Yes
  Filter	High Low Pass filter
  Colour FX	Crush Echo Filter Jet Pitch Space
  Release FX	Back spin Echo Vinyl brake
  FX Parameters	3knob x 3button
  Sampler	16slot x 4bank
  Oscillator Sampler	Horn Noise Sine Siren
  Hot Cues	8
  Sequencer	Yes
  Sequence load	Yes
  Sequence call	Yes
  Manual Loop	Yes
  Auto Beat Loop	Yes
  Beat Jump	Yes
  Slip Mode	Yes
  Needle Search	Yes
  Talkover Function	Yes
  EQ Isolator	Yes

  Fader

  Fader Start	Yes
  Crossfader Curve Adjust	Yes

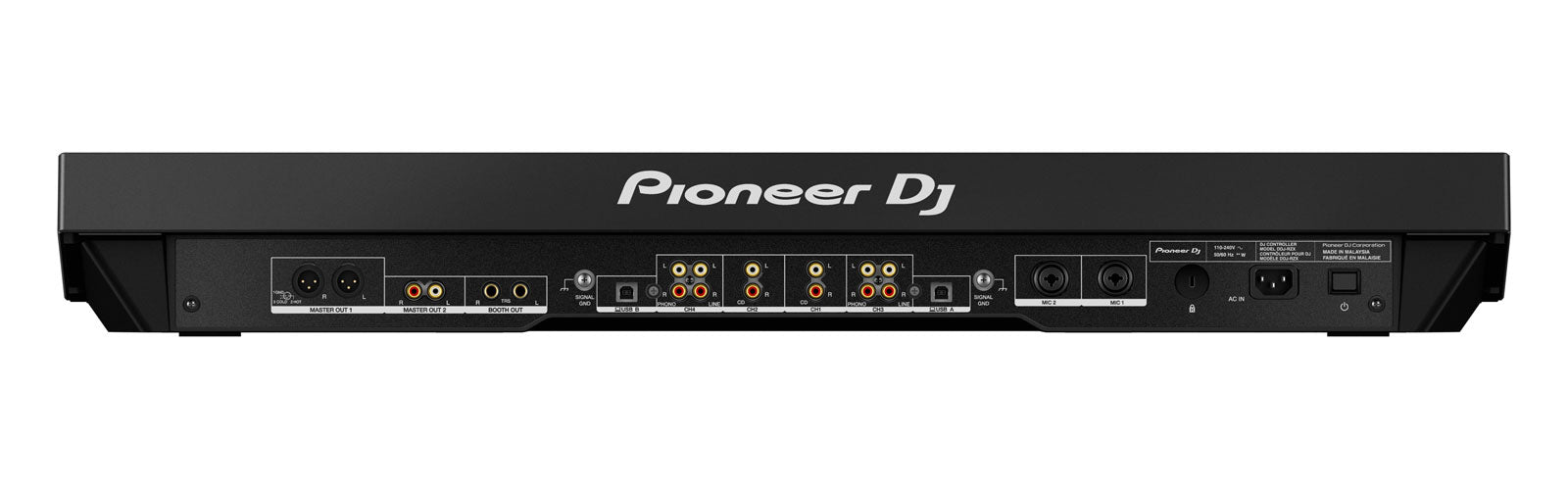

  Terminals

  Inputs	2 PHONO (RCA) 4 CD/LINE (RCA) 2 MIC (XLR/Jack Combo)
  Outputs	1 BOOTH (1/4 inch TRS Jack) 2 HEADPHONE MONITOR (1/4 inch Jack, mini-jack) 2 MASTER (XLR, RCA)
  USB	2 USB B ports
