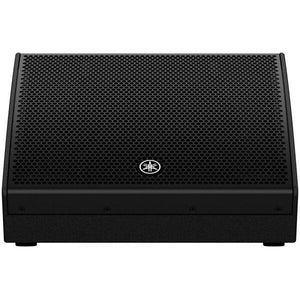

The CHR12M is a 2-way loudspeaker with a 12-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration, perfect for use as a floor monitor. Combining carefully selected and customized transducers with the same plywood construction found on Yamaha’s high-end CZR Series, the CHR12M offers best-in-class sound quality and durability.
- The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
- Featuring a plywood cabinet that delivers a clear sound with minimal vibration
- Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
- A pole socket for use on a stand
- Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance
The CHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.
Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with a 10” model for fixed installation and utilities, a 12” model designed for use as a floor monitor, and a 15” version for FOH applications —all featuring carefully selected custom transducers. Combined with practical features adapted for their specific applications, the series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition CHR quality and performance to improve your sound?
CHR12M: Coaxial Compression Driver

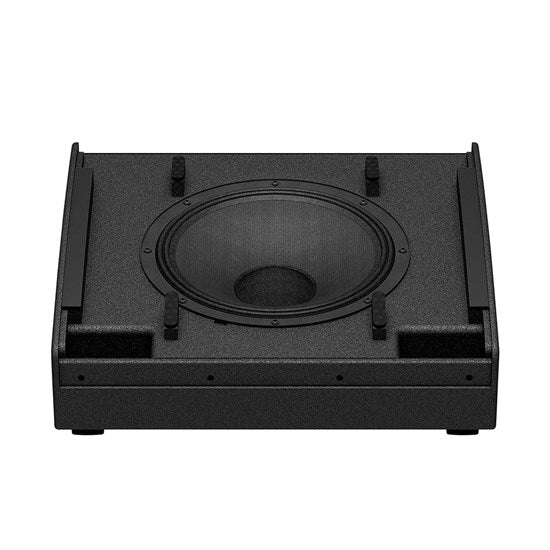

1.75” coaxial compression driver (CHR12M)
A Rugged, Highly Portable Cabinet
The CHR series feature plywood enclosures like our acclaimed CZR loudspeakers to deliver outstanding durability and acoustic performance.
Intelligent processing to maximize system performance
When used in combination with Yamaha PX Series amplifiers or other compatible signal processors, CHR Series loudspeakers can take full advantage of dedicated speaker processor tuning settings. (*Supported firmware is Ver1.63 or later.)
|Speaker type||2-way Speaker, Bass-reflex||2-way Speaker, Bass-reflex||2-way Speaker, Bass-reflex|
|Frequency range (-10dB)||49 Hz - 20 kHz||61 Hz - 20 kHz||55 Hz - 20 kHz|
|Coverage area||H90ﾟ x V60ﾟ||H90ﾟ x V90ﾟ||H90ﾟ x V60ﾟ (Rotatable)|
|Crossover||2.0 kHz||1.8 kHz||2.5 kHz|
|Nominal impedance||8 Ω||8 Ω||8 Ω|
|SPL||Sensitivity (1W; 1m on axis)||95 dB SPL||93 dB SPL||93 dB SPL|
|Peak (Calculated)||125 dB SPL||123 dB SPL||122 dB SPL|
|Components||LF||Diameter: 15" cone, Voice Coil: 2.5", Magnet: Ferrite||Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite||Diameter: 10" cone, Voice Coil: 2", Magnet: Ferrite|
|HF||Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite||Diaphragm: 1.75", Type: 1" throat coaxial compression driver, Magnet: Ferrite||Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite|
|Power rating||NOISE||250 W||250 W||175 W|
|PGM||500 W||500 W||350 W|
|PEAK||1,000 W||1,000 W||700 W|
|I/O connectors||SpeakON NL4MP x 2 (Parallel)||SpeakON NL4MP x 2 (Parallel)||SpeakON NL4MP x 2 (Parallel)|
|Finish||Durable Polyurea Painting, Black||Durable Polyurea Painting, Black||Durable Polyurea Painting, Black|

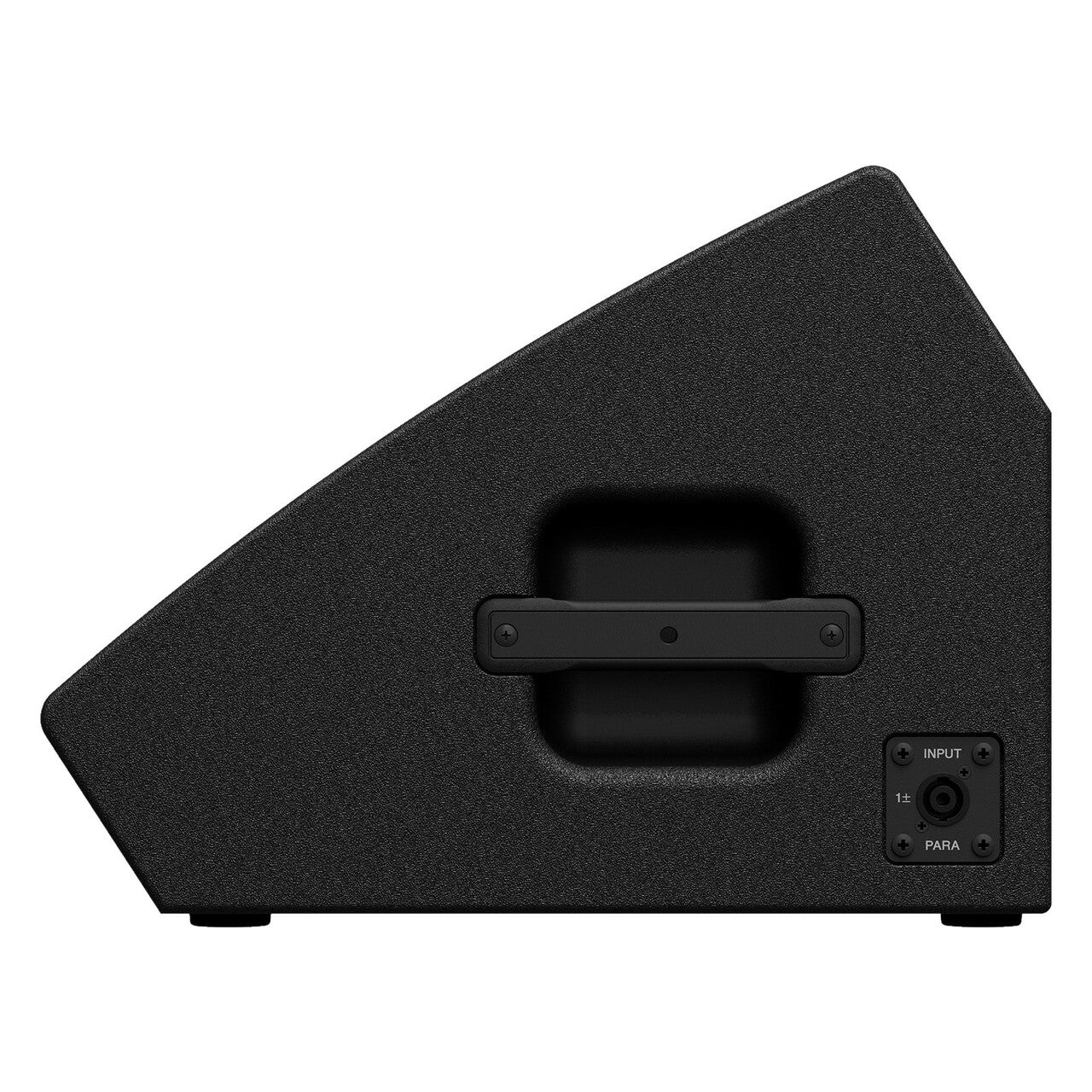

|Handle||Side x2||Side x1||Top x1|
|Pole socket||Φ35 mm x2 (Bottom, 0° or -7°)||Φ35 mm x1 (Bottom)||Φ35 mm x1 (Bottom)|
|Rigging||Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)||-||Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)|
|Floor Monitor Angle||-||57°||-|
|Dimensions||W||432 mm (17.0")||500 mm (19.7")||305 mm (12.0")|
|H||692 mm (27.2") (with rubber feet)||343 mm (13.5") (with rubber feet)||494 mm (19.5") (with rubber feet)|
|D||405 mm (15.9")||454 mm (17.9")||300 mm (11.8")|
|Net weight||22.0 kg (48.5 lbs)||15.6 kg (34.4 lbs)||13.7 kg (30.2 lbs)|
