Description
Unlock New Creative Possibilities
Versatile, portable, and reliable, the Roland V-8HD brings a world of creative options to live event switching. Its all-in-one hardware design eliminates computer setup hassles and software-based crashes, while the HDMI workflow and loaded professional toolset streamline production and reduce stress on the gig.
- All HDMI workflow
- Five-layer effects and keying engine
- Built-in multi-viewer preview monitor
- Aux output for a different video feed
- Technology-assisted automatic video switching
- 18-channel digital audio mixer with effects
- Start & Stop Atomos recorders
- Free iPad remote control app available
- Ultra-mobile, lightweight, and efficient
- Aids in reducing capital expenditure
System Program Version 1.10
Version 1.10 update improves workflow, adds audio output delay for live streaming, and synchronizes the transition of all effects layers. Also included are 24 memory presets (16 additional) and an improved graphical interface on the companion iPad remote app.
Maximum Connectivity
Nearly all modern cameras and digital video devices use HDMI, the most common AV connector on the planet. The V-8HD seamlessly mixes eight HDMI sources with Full HD support, even when the sources have mismatched frame rates and color spaces. And with the built-in scalers on two of the HDMI inputs, you can easily interface with client-provided sources like computers, tablets, smartphones, gaming consoles, and legacy 4:3 devices.
The Power of More
Creative professionals need more video inputs for layered graphics and visual effects, and business professionals often need multiple backup video sources. Having the ability to meet all these needs brings satisfied clients and greater audience engagement. With the V-8HD’s generous number of HDMI inputs and outputs, you’re able to offer clients a vast amount of creative freedom—without increasing the budget.
Set Up Layers, Effects, and Keys
Video effects, layers, and graphics add polish and excitement to any production. With the V-8HD’s five composition layers, you’ll always keep audiences engaged with visually appealing content. Prepare the content according to client specifications and separate it into layers:
Layer 1 and 2: Start with one mixable live background video layer.
Layer 3 and 4: Place in two picture-in-picture layers or chroma/luminance key effects.
Layer 5: Add one downstream keyer layer.
Ultra-Mobile, Lightweight, and Efficient
The AV production table is the last thing on an event organizer’s mind. Thanks to its compact footprint, the V-8HD fits effortlessly into any live production environment, even when you have to deal with minimal setup space. And it only weighs around 4 lb./2 kg, making it easy to carry in a backpack or luggage. With its smart feature set, eight HDMI inputs, built-in 18-channel audio mixer, and support for external battery power, the streamlined V-8HD is the most versatile and efficient HDMI switcher available.
Seamless Memory Recall
With the V-8HD, storing and recalling unique looks requires only a few button presses. The 24 preset memories and powerful composition effects engine work together to provide a completely seamless load between the different looks, even synchronizing the transition of all effect's layers on and off the program output.
The Preset Memory page on the companion iPad remote control app displays a graphical preview of scenes, layers and sources for each preset memory helping you chose the correct scene before taking it to program.
Separate Feeds for Separate Needs
Presenter confidence monitors, live streams, and recording feeds often require different visual content from the main program output. The V-8HD has you covered, with assignment buttons for sending any of your connected input devices to a dedicated aux output without affecting the main feed. It’s also possible to synchronize the aux output with the program output, giving you a built-in 2x distribution amp.
Built-In Multi-Viewer Display
The V-8HD’s bright, 4.3-inch multi-viewer display means less gear to buy and haul to the gig. From a single screen, you can monitor all eight video inputs, PGM, and PVW plus menu overlay. Input windows show camcorder recording status and embedded audio levels. Connect a larger external TV for an immense multi-viewer experience, or to make menu changes without moving the focus from the action.
Audio and Effects
A crystal-clear sound mix is essential for professional presentations. That’s easy to achieve with the V-8HD, which allows pros and beginners alike to quickly create engaging mixes that sound great. The studio-grade, 18-channel audio mixer blends signals from the eight HDMI inputs and stereo RCA inputs, while a feature-packed preset effects library provides setups for everyday production environments like meetings and interviews, plus challenging situations that require wind noise reduction and microphone de-essing.
Automated Video Switching
The V-8HD makes your job easier with three technology assisted automatic switching modes. Input Scan switches input sources randomly or in sequence, while Preset Memory Scan switches between preset memories. Beats Per Minute (BPM) Sync is also available, automatically switching Preview and Program at a specified tempo.
Record Triggering and Confirmation
Many technical elements contribute to a successful recording. But forgetting to hit the record button means the difference between getting paid for the job or not. Via HDMI, the V-8HD operator can trigger Atomos recorders to start and stop recording. And some camcorders even display a recording confirmation icon on the input channel of the V-8HD's multi-viewer screen, letting you keep an eye on the recording status while staying focused on other critical tasks.
V-8HD iPad Remote Control Utility
The dedicated V-8HD remote control app turns an iPad into an efficient touch interface for the V-8HD. Run essential switching functions, mix audio with virtual faders, change settings and effect parameters quickly, and create up to 24 custom scenes for fast, efficient setup changes.
Hands-Free Switching & Control
Stomp on a BOSS single or double footswitch to execute over 100 different switcher commands. Cut to a still image, transition PIP on/off the screen, or drop in a keyed lower third title. It’s also possible to switch the aux output between presenter notes and stage manager messages, turn automatic switching mode on/off, and much more.
Panel Design

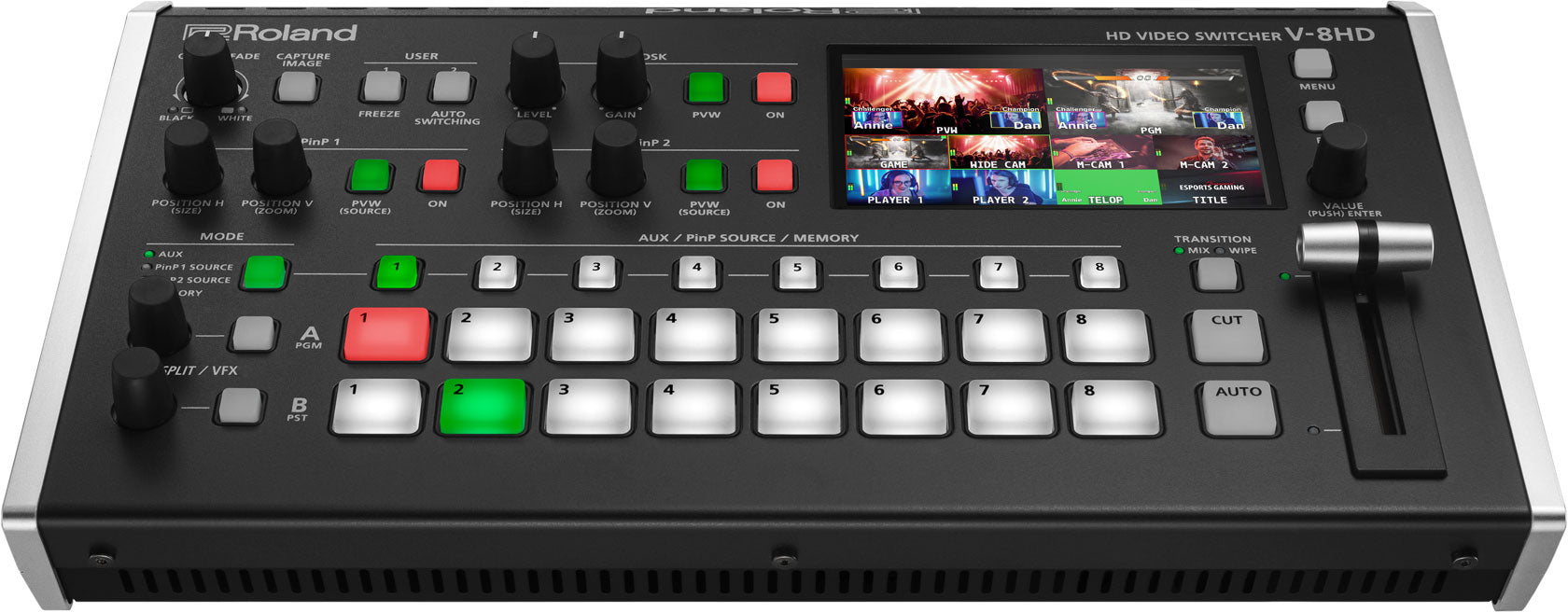

Front

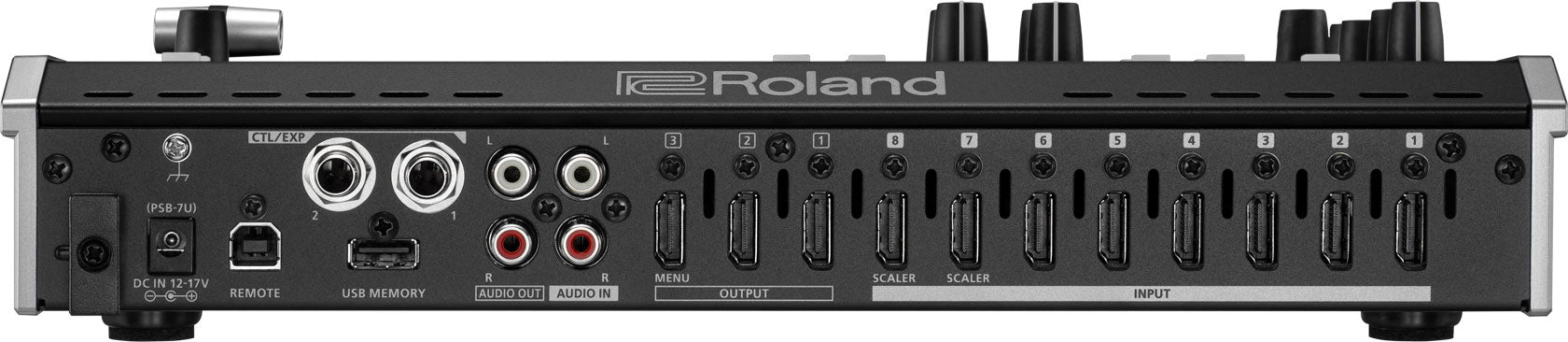

Rear
Technical specification :
| Video Processing | 4:2:2 (Y/Pb/Pr), 8-bit |
|---|---|
| Input Connectors | INPUT 1--6: HDMI type A x 6 * HDCP Supported INPUT 7--8: HDMI type A x 2 * HDCP Supported * Multi-format Supported |
| Output Connectors | OUTPUT 1--3: HDMI type A x 3 * HDCP Supported |
| Supported Video Input Format | INPUT 1-6 720/59.94p *1, *3 720/50p *1, *4 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3 1080/50i, 1080/50p, 1080/25p *2, *4 1080/23.98p, 1080/24p *2 * The input interlaced video signal is converted to progressive video signal by internal processing. *1 SYSTEM FORMAT = 720p *2 SYSTEM FORMAT = 1080i or 1080p *3 FRAME RATE = 59.94 Hz *4 FRAME RATE = 50 Hz INPUT 7-8 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2 1080/23.98p, 1080/24p VGA (640x480/60Hz), SVGA (800x600/60Hz), XGA (1024x768/60Hz) WXGA (1280x800/60Hz), SXGA (1280x1024/60Hz) FWXGA (1366x768/60Hz), SXGA+ (1400x1050/60Hz) UXGA (1600x1200/60Hz), WUXGA (1920x1200/60Hz) * The refresh rate is the maximum value of each resolution. * Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11. * 1920 x 1200/60 Hz: Reduced blanking * The input interlaced video signal is converted to progressive video signal by internal processing. *1 FRAME RATE = 59.94 Hz *2 FRAME RATE = 50 Hz. |
| Still Image | Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed. PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color * It can be stored up to 8 files in the internal memory. * PNG alpha channel not supported. |
| Supported Video Output Formats | OUTPUT 1-2: 720/59.94p *1, *4 720/50p *1, *5 1080/59.94i *2, *4 1080/50i *2, *5 1080/59.94p *3, *4 1080/50p *3, *5 *1 SYSTEM FORMAT = 720p *2 SYSTEM FORMAT = 1080i *3 SYSTEM FORMAT = 1080p *4 FRAME RATE = 59.94 Hz *5 FRAME RATE = 50 Hz OUTPUT 3: 1080/59.94p *1 1080/50p *2 *1 FRAME RATE = 59.94 Hz *2 FRAME RATE = 50 Hz |
| Video Effects | Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types) Composition: PinP x 2 (SQUARE, CIRCLE, DIAMOND), SPLIT (2 types), Keyer x 2 (Luminance Key, Chroma Key), DSK (Luminance Key, Chroma Key) Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output |
Audio |
|
| Audio Processing | Sampling rate: 24 bits/48 kHz |
| Audio Formats | Linear PCM, 24 bits/48 kHz, 2ch |
| Audio Effects | Delay, High pass filter, Compressor, Noise gate, Equalizer, Multi-band compressor, Limiter, Test tone output |
Connectors |
|
| Input Connectors | INPUT 1--8: HDMI Type A x 8 AUDIO IN: RCA phono type |
| Output Connectors | OUTPUT 1--3: HDMI Type A x 3 AUDIO OUT: RCA phono type PHONES: Stereo miniature type |
| Other Connectors | USB MEMORY: USB A type (for USB flash drive) REMOTE:USB B Type (for remote control from iPad) CTL/EXP:1/4-inch TRS phone type |
| Other Functions | Preset Memory (8 types) Panel lock function EDID Emulator Auto Switching Auto Input Detect |
Audio Input/Output Characteristics |
|
| Input Level | AUDIO IN: -10 dBu (Maximum: +8 dBu) |
| Input Impedance | AUDIO IN: 38 k ohms |
| Output Level | AUDIO OUT: -10 dBu (Maximum: +8 dBu) PHONES: 92 mW + 92 mW (32 ohms) |
| Output Impedance | AUDIO OUT: 1 k ohm PHONES: 10 ohms |
Other |
|
| Display | 4.3" TFT Colour LCD: 480 x 272 dots |
| Power Supply | AC Adaptor |
| Current Draw | 3.3 A |
| Power Consumption | 39.6 W |
